P/N: 02354ABH

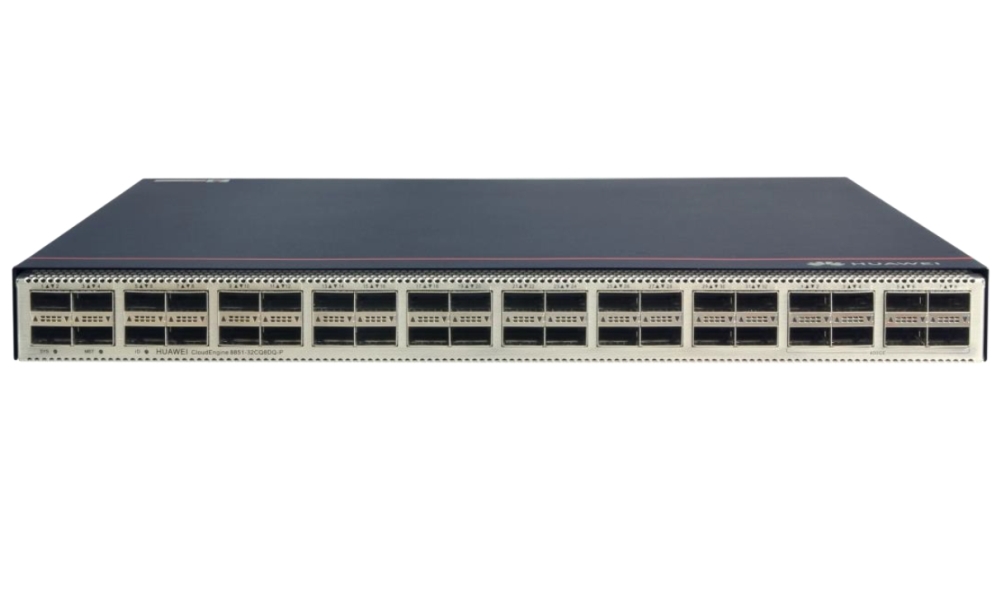

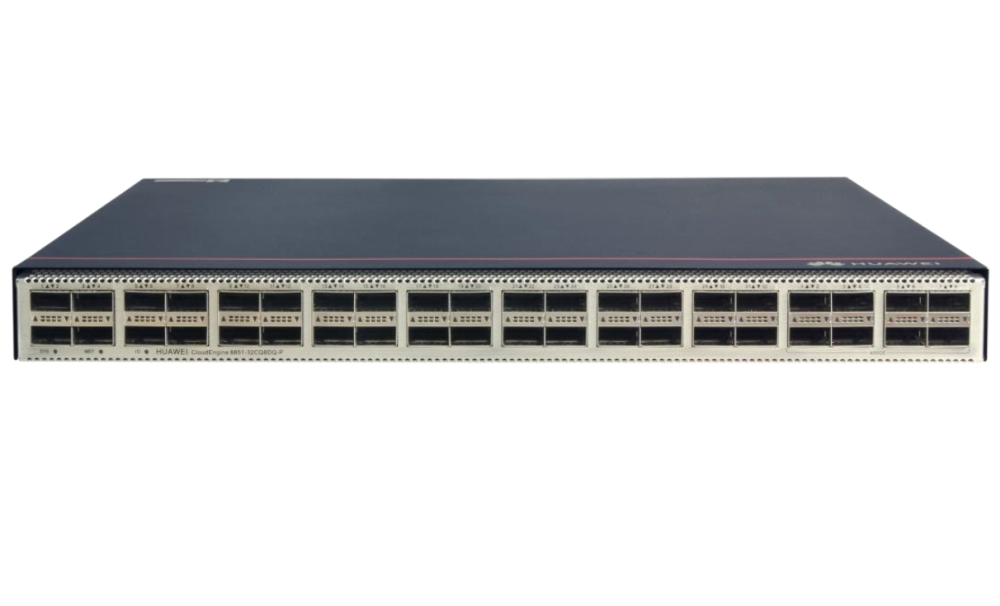

Комутатор, Huawei CE8851-32CQ8DQ-P switch with RTU bundle 1 (32100GE QSFP28, 8400G QSFPDD, 2AC power modules, 6fan modules, port-side intake, 8*400GE port RTU)

Huawei CE8851-32CQ8DQ-P switch with RTU bundle 1 (32*100GE QSFP28, 8*400G QSFPDD, 2*AC power modules, 6*fan modules, port-side intake, 8*400GE port RTU)

HUAWEI Enterprise Networking >> Huawei CE8851-32CQ8DQ-P switch with RTU bundle 1 (32*100GE QSFP28 Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	40
Основни портове, тип	32x40/100GE QSFP28 or 32x200GE QSFP56 (By default, the CE8851-32CQ8DQ-P supports only 32x100GE ports. To upgrade to 32x200GE ports, purchase the CE88-RTU-U32CQ hardware RTU.To use 8x400GE QSFPDD ports, purchase the CE88-RTU-8DQ hardware RTU)
Power Over Ethernet (PoE)	No
Uplink портове	8x400GE QSFPDD
Свободни (10GB) слотове	No
Управление	Console, Telnet, and SSH terminals; Network management protocols, such as SNMPv1/v2/v3; File upload and download through FTP and TFTP; BootROM upgrade and remote upgrade; Hot patches; User operation logs; Zero Touch Provisioning (ZTP)
Stackable	Yes
Fans	6 fan trays
Захранване	2 AC power modules, Maximum power: 1152W (32x200GE + 8x400GE), 973W (32x100GE + 8x400GE)
Routing	Layer 3 Advanced
Памет (Flash, RAM)	NAND flash: 4 GB, NOR flash: 64 MB, RAM: 8 GB
Капацитет за маршрутизиране/превключване, Gbps	19.2 Tbps
Пропускателна способност, Mpps	4350 Mpps
MAC адреси	800000 MAC address table size
VLAN (брой, стандарти)	Adding access, trunk, and hybrid interfaces to VLANs; Default VLAN
QoS	Traffic classification based on Layer 2, Layer 3, Layer 4, and priority information; ACL, CAR, re-marking, and scheduling; Queue scheduling modes such as PQ, DRR, and PQ+DRR; Congestion avoidance mechanisms, including WRED and tail drop; Traffic shaping
L3 мрежови стандарти	IPv4 routing protocols, such as RIP, OSPF, IS-IS, and BGP; IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+; IP packet fragmentation and reassembly
IPv6 functionality	VXLAN over IPv6; IPv6 VXLAN over IPv4; IPv6 Neighbor Discovery (ND); Path MTU Discovery (PMTU); TCP6, IPv6 ping, IPv6 tracert, IPv6 socket, UDP6, and raw IPv6
Сигурност	Defense against DoS attacks, ARP storms, and ICMP attacks; Port isolation, port security, and sticky MAC; Binding of the IP address, MAC address, port number, and VLAN ID; Authentication methods, including AAA, RADIUS, and HWTACACS; RMON
Размери (Ш, Д, В), mm	442 x 600 x 44 mm
Опция за монтаж	Rackmount
Други	1x GE management port, 1x RJ45 console port, 1x USB port
Гаранция	12 месеца
