P/N: C1000-8FP-2G-L

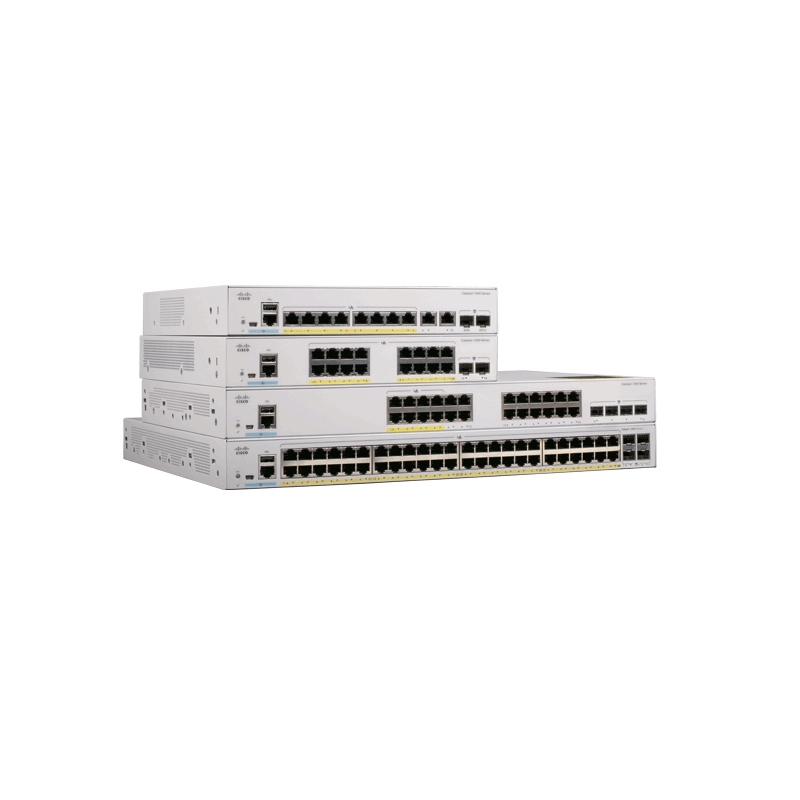

Комутатор, Cisco Catalyst 1000 8port GE, Full POE, 2x1G SFP

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Catalyst 1000 8port GE Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	8
Основни портове, тип	10/100/1000Base-T
Power Over Ethernet (PoE)	Support both IEEE 802.3af PoE and IEEE 802.3at PoE+; 30W for any 4 ports or 15W for 8 ports; PoE power budget: 120W
Uplink портове	2x SFP/ RJ-45 combo
Свободни (10GB) слотове	-
Управление	Web UI via Cisco Configuration Professional; CLI using a Telnet or Secure Shell (SSH) client over Bluetooth. The GUI can be accessed over Bluetooth with a browser. Single IP Management. Network management
Stackable	-
Fans	Compact fanless
Захранване	Single fixed power supply. Models have external power supply. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
Routing	Static
Памет (Flash, RAM)	512MB DRAM, 256 MB Flash memory
Капацитет за маршрутизиране/превключване, Gbps	10/20 Gbps (Forwarding/Switching)
Пропускателна способност, Mpps	14.88 Mpps
MAC адреси	15 360
VLAN (брой, стандарти)	Maximum active: 256; IDs available: 4094
QoS	Up to 8 egress queues and 2 thresholds per port, Ingress policing, QoS through DSCP mapping and filtering, QoS through traffic classification, Trust boundary, AutoQoS, Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD), 802.1p CoS
L2 мрежови стандарти	802.1D STP, 802.1p CoS Prioritization, 802.1Q VLAN, 802.1s, 802.1w, 802.1X, 802.1ab LLDP, BT v4.0, 802.3ad, 802.3af, 802.3ah (100BASE-X single/multimode fiber only), 802.3x full duplex, 802.3, 802.3u, 802.3ab, 802.3z, RMON, SNMP, 802.3az, 802.3ae
L3 мрежови стандарти	-
IPv6 functionality	IPv6 routing, Access Control Lists (ACLS)
Сигурност	802.1X, Authentication, ACLS, Port-based ACLs, SSH, Kerberos, and SNMP v3, SPAN, TACACS+ and RADIUS authentication, MAC address notification, MAC Authentication Bypass (MAB), BPDU Guard, IP Source Guard, SSH v2, STRG, IGMP
Размери (Ш, Д, В), mm	268.2 x 323.34 x 43.9
Опция за монтаж	Rackmount
Други	USB mini-B port, USB-A port for storage and Bluetooth console
Гаранция	60 месеца
