P/N: DGS-1210-24

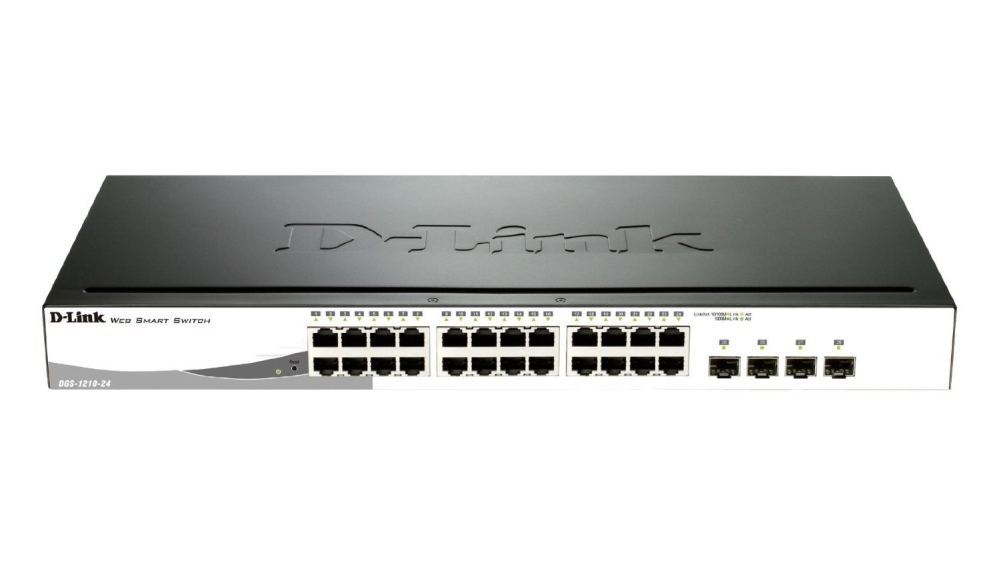

Комутатор, D-Link 24-port 10/100/1000 Gigabit Smart Switch + 4 SFP

D-LINK мрежови продукти >> D-Link 24-port 10/100/1000 Gigabit Smart Switch + 4 SFP Препоръчителен сервиз

Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Характеристики

Суич, тип	Fixed Port
Общ брой портове	28
Основни портове, тип	24x10/100/1000Base-T
Power Over Ethernet (PoE)	No
Uplink портове	4xSFP
Свободни (10GB) слотове	No
Управление	Multi-Language Web-based GUI, Simplified CLI, Telnet Server, TFTP Client, SNMP (Supports v1, v2, v3), SNMP Trap, System Log (Max. 500 log entries), IPv6 Neighbor Discovery, Configurable MDI/MDIX, BootP/DHCP Client, DHCP Auto Configuration, RMON v1, SNTP
Stackable	No
Fans	Fanless design
Захранване	Internal Universal Power Supply: 100 - 240 VAC, 50/60 Hz
Routing	Layer 2 Only
Памет (Flash, RAM)	-
Капацитет за маршрутизиране/превключване, Gbps	56 Gbps
Пропускателна способност, Mpps	41.7 Mpps
MAC адреси	16000 MAC address table size
VLAN (брой, стандарти)	IEEE 802.1Q; VLAN Group: max. 256 static VLAN groups, max. 4094 VIDs; Management VLAN; Asymmetric VLAN; Auto Voice VLAN: max. 10 user defined OUI, max. 8 default OUI; Auto Surveillance VLAN
QoS	802.1p Quality of Service; 8 queues per port; Queue Handling - Strict, Weighted Round Robin (WRR); Bandwidth Control - Port-based (Ingress/Egress, min granularity 10/100/1000 is 15 Kbps); CoS based on: 802.1p Priority Queues, DSCP, ToS, IPv6, TCP/UDP port
L2 мрежови стандарти	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X
L3 мрежови стандарти	-
IPv6 functionality	IPv6 Neighbor Discovery
Сигурност	Port Security, Broadcast/Multicast/Unicast Storm Control, Static MAC, D-Link Safeguard Engine, DHCP Server Screening, Trusted Host, ARP Spoofing Prevention (Max. 64 entries), SSL (Supports v1/v2/v3; Supports IPv4/IPv6), Traffic Segmentation, IEEE 802.3x
Размери (Ш, Д, В), mm	441 x 210 x 44
Опция за монтаж	Rackmount
Гаранция	99 месеца
