P/N: DS-TCG406-E(12V/POE)(2812)

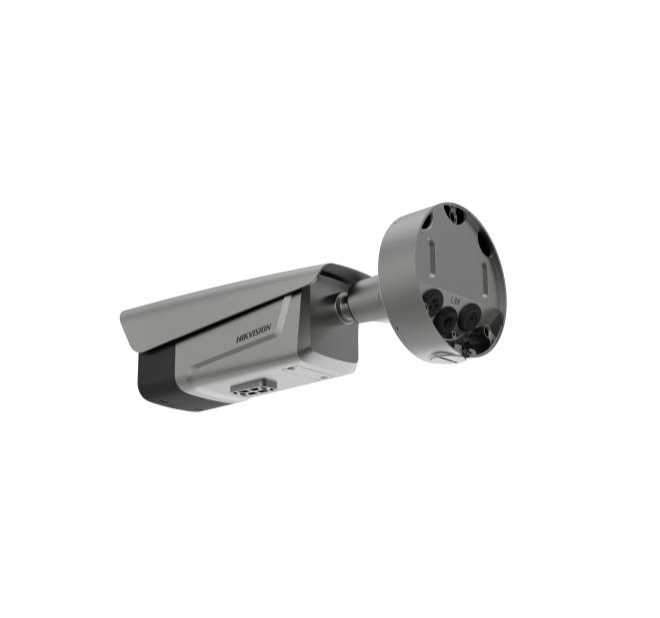

Camera, HikVision 4 MP Access ANPR Camera, 2.8 to 12 mm, IR Light, Warm White Light up to 25m, 140 dB WDR, H.265+, IP67, IK10, -30 °C to 70 °C, 1 TF card slot, up to 1 TB, 12-24Vdc/PoE+ 10W

HikVision 4 MP Access ANPR Camera, 2.8 to 12 mm, IR Light, Warm White Light up to 25m, 140 dB WDR, H.265+, IP67, IK10, -30 °C to 70 °C, 1 TF card slot, up to 1 TB, 12-24Vdc/PoE+ 10W

HikVision HiWatch Series >> HikVision 4 MP Access ANPR Camera Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Type	IP
Sensor, type	CMOS
Оptical sensor size	1/1.8" progressive scan CMOS
Resolution, MP	4 MP
Focal length	2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°
Minimum illumination, lx	Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
IR lighting	IR Light, Warm White Light up to 25m
Мax resolution, pixels	2688x1520
Compression formats	Main stream: H.265/H.264/MJPEG; Sub-stream: H.265/H.264/MJPEG
Transmission frames speed	Main Stream - 50 Hz: 25 fps (2688x1520, 1920x1080, 1280x720), 60 Hz: 30 fps (2688x1520, 1920x1080, 1280x720); Sub-Stream - 50 Hz: 25 fps (1920x1080, 1280x720, 704x576, 640x480), 60 Hz: 30 fps (1920x1080, 1280x720, 704x480, 640x480)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket
Network interface	1 RJ45 10M/100M self-adaptive Ethernet port
Wireless network	-
Power Over Ethernet (PoE)	PoE (802.3at, 44 VAC to 57 VAC)
Input/Output ports	Audio: 1 input (line in), 1 output (line out); 3-ch triggered alarm inputs; 1-ch alarm output; 1-ch RS-232 serial port, 1-ch RS-485 serial port
Sound	-
Power supply	12 to 24 VDC, 300 mA to 230 mA, max. 10 W
Card slot	1 TF card slot, up to 1 TB
Night surveillance	IR cut filter
Outdoor mounting	yes
Waterproof	IP67
Vandal-Proof	IK10
Operating Temperature	-30 °C to 70 °C
Humidity range	Humidity 95% (non-condensing)
Security	Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings
Dimensions (W, D, H), mm	415 x 145 x 145 mm
Warranty	24 months
