P/N: 11100014

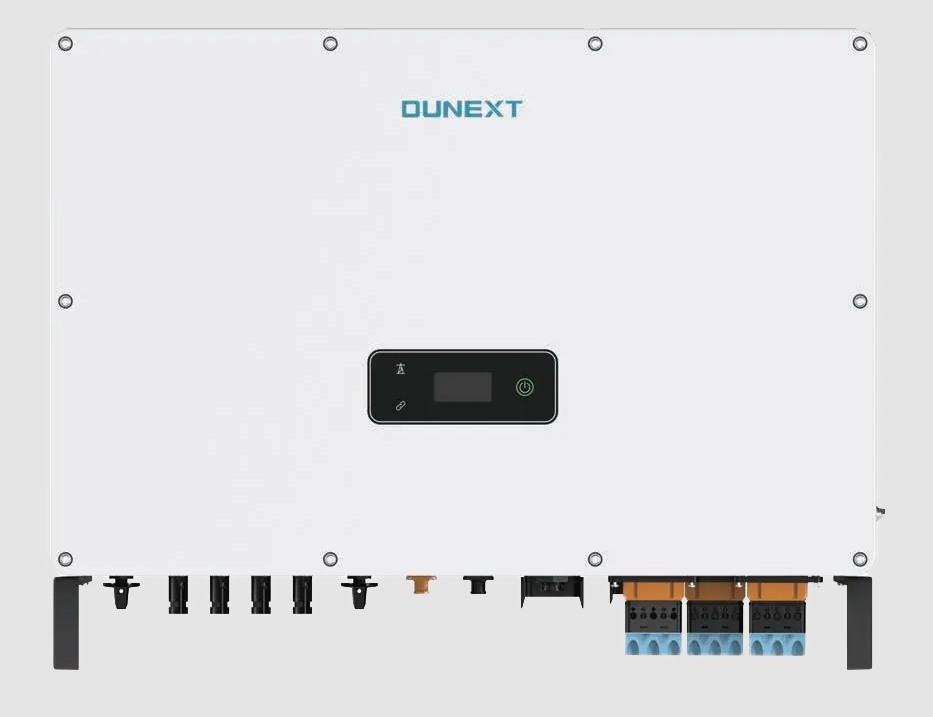

Inverter for photovoltaic panel, Dunext Three phase hybrid inverter DN3H-40KTL

Recommended service
Dunext Technology Suzhou Co., Ltd., имейл: service@dunext.com, Гаранционна процедура

Characteristic

Connection, type	Three phase
Efficiency	98.8%; European Efficiency: 98.3%
Power, W	60000 Wp Max. Recommended PV Power
Input voltage, V	Max. PV Input Voltage: 1000V, Rated PV Input Voltage: 620V; Start-Up Voltage: 135V; MPPT Voltage Range: 200-850V
Battery	Lithium (with BMS); Battery Voltage Range: 135 - 750V, Max. Charging / Discharging Current: 100 / 100A
Output power, W	40000 W
Output power, VA	44000 VA
Output Voltage, V	Rated AC Voltage: 3L / N / PE; 220 / 380; 230 / 400 V
Frequency, Hz	50 / 60 Hz
Output current, A	66A (On/Off Grid)
Protections	DC Reverse Polarity / Battery Input Reverse Connection / Insulation Resistance Protection Surge / Over-Temperature / Residual Current / Anti-Islanding / AC Over-Voltage / Overload / AC Short-Circuit Protection
Indicators	OLED & LED
Cooling type	Fan
Operating Temperature	-30 ~ 60 °C
Humidity range	0 ~ 100 %
Interface	CAN, RS485, WiFi / LAN (Optional)
Security	IP65; Over Voltage Category: PV: II Main: III
Standards	EN IEC 61000, EN IEC 62109, EN 50549-1, CEI-021
Color	White
Dimensions (W, D, H), mm	800 * 620 * 300 mm
Weight, kg	72 kg
Other	No. of MPP Trackers: 4; No. of Input Strings per Tracker: 2; Max. Input Current per MPPT: 30A; Max. Short-Circult Current per MPPT: 40A
Warranty	60 months
