P/N: DS-2CD2955G0-ISU

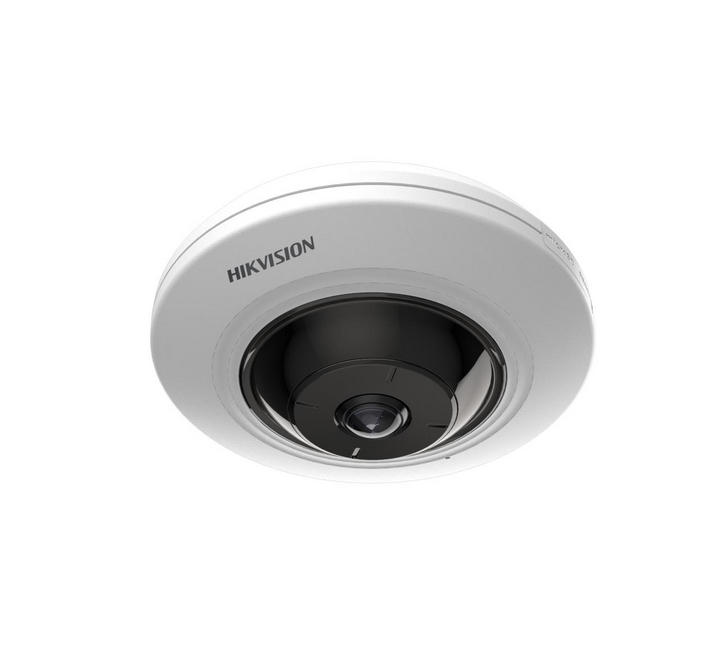

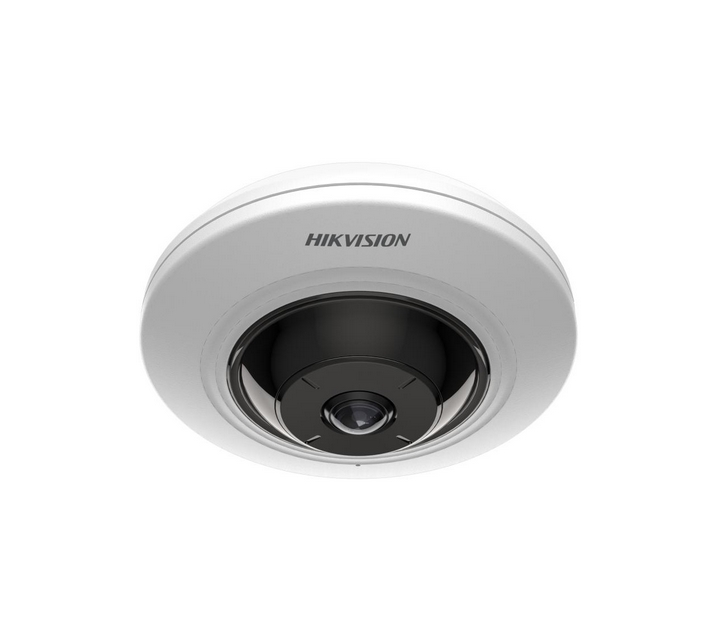

Camera, HikVision 5MP Fixed Fisheye Network Camera, 1.05 mm, F2.25, 180° fisheye view, IR up to 8 m, H.265+, 120 dB WDR, built-in microphone, built-in memory card slot (up to 256 GB), 12Vdc/PoE 7.5W

HikVision 5MP Fixed Fisheye Network Camera, 1.05 mm, F2.25, 180° fisheye view, IR up to 8 m, H.265+, 120 dB WDR, built-in microphone, built-in memory card slot (up to 256 GB), 12Vdc/PoE 7.5W

HikVision HiWatch Series >> HikVision 5MP Fixed Fisheye Network Camera Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Type	IP
Sensor, type	CMOS
Оptical sensor size	1/2.7" Progressive Scan CMOS
Resolution, MP	5 MP
Focal length	1.05 mm, horizontal FOV: 180°, vertical FOV: 180°, diagonal FOV: 180°
Minimum illumination, lx	Color: 0.017 Lux @ (F2.25, AGC ON), B/W: 0 Lux with IR
IR lighting	IR up to 8m
Мax resolution, pixels	2560x1920
Compression formats	Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG
Transmission frames speed	Main Stream - 50 Hz: 25 fps (2560x1920, 2048x1536, 1280x960), 60 Hz: 30 fps (2560x1920, 2048x1536, 1280x960); Sub-Stream - 50 Hz: 25 fps (640x480), 60 Hz: 30 fps (640x480)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Network interface	1 RJ45 10M/100M self-adaptive Ethernet port
Wireless network	-
Power Over Ethernet (PoE)	PoE: IEEE 802.3af, Class 3, max. 7.5 W
Input/Output ports	Alarm: 1 input, 1 output (max. 12 VDC, 30 A); Audio: 1 input (line in), 1 output (line out)
Sound	Built-in microphone
Power supply	12 VDC ± 25%, 0.5 A, max. 6 W
Card slot	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Night surveillance	IR cut filter
Vandal-Proof	-
Operating Temperature	-10 °C to 50 °C
Humidity range	Humidity 95% or less (non-condensing)
Security	Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Dimensions (W, D, H), mm	119.9 x 41.2 mm
Warranty	24 months
