P/N: 6854C003AA_2455C002AA

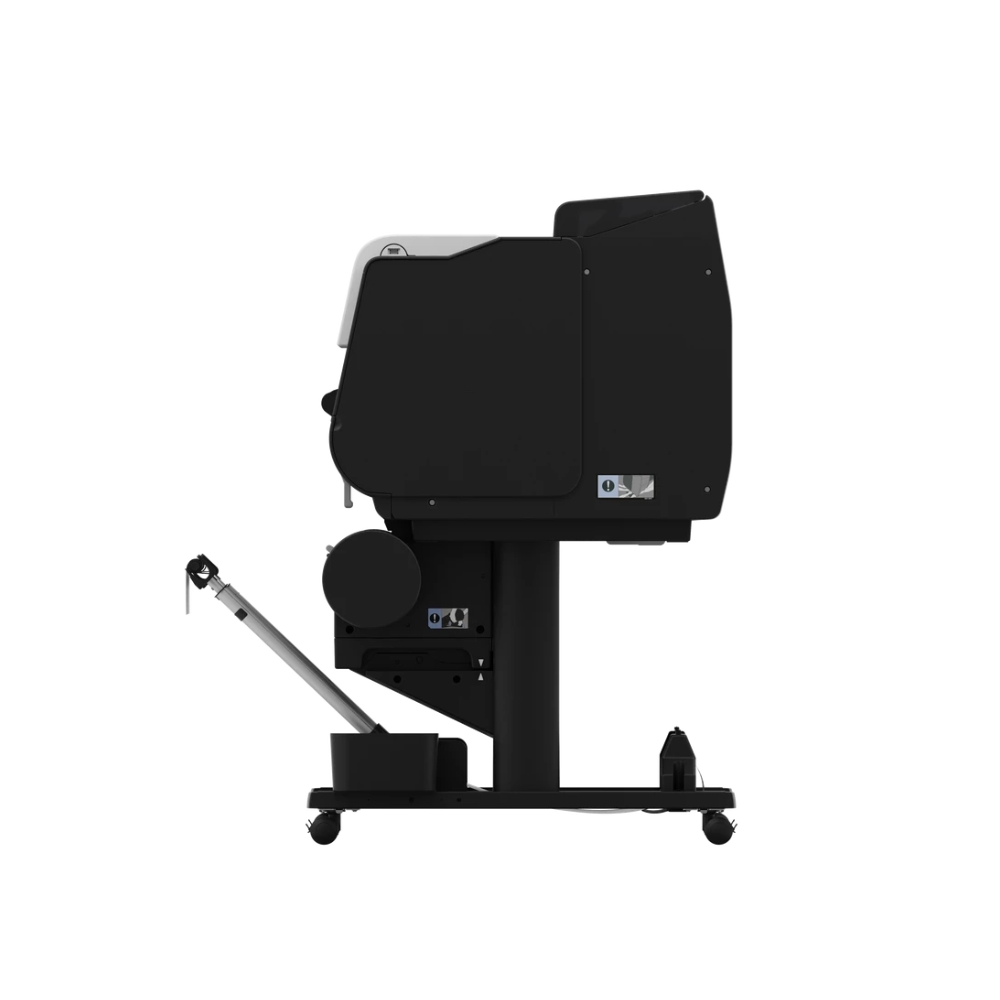

InkJet Plotter, Canon imagePROGRAF TX-3200 incl. stand + Second Roll Unit RU-32

CANON плотери >> Canon imagePROGRAF TX-3200 incl. stand + Second Roll Unit RU-32 Recommended service

Recommended service
СТЕМО ЕООД, тел. 07001 79 78; имейл: support@stemo.bg, сайт: www.stemo.bg/bg/support

Characteristic

Model, size /mm/	914 mm (36")
Media, format	A0
Resolution	2400 x 1200 dpi
Speed, sec	CAD Drawing: Plain Paper (A1): 0:17 (Fast Economy Mode), 3.3ppm, Plain Paper (A0) 0:32 (Fast Economy Mode), 0:35 (Fast), 1:06 (Standard)
Print technology	Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
Ink, type	Pigment inks
Number of print cartridges	5 colours: MBK/BK/C/M/Y
Droplet size	min. 5pl per colour
Line accuracy	±0.1% or less
Interface	USB A Port:USB Memory (Direct Print), USB B Port: Hi-Speed USB
Network	Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T), IEEE 802.1X (EAP-TLS/EAP-TTLS/PEAP); Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
Memory, GB	128GB (Physical memory 2GB), Expansion slot : No
Hard disk, GB	500GB HDD (Encrypted)
Print languages	HP-GL/2, HP RTL, PDF (Ver. 1.7), JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only)
Print length (roll), m	Min. Printable Length: Roll paper: 101.6mm (excluding cloth, tracing paper and translucent matte film media. These media are 200mm), Cut sheet: 203.2mm; Max.: Roll paper : 18m (varies according to the OS and application), Cut sheet : 1.6m
Print width (roll), mm	Roll paper: 152.4mm - 917mm; Cut sheet: 152.4mm - 917mm
Media, type	Different types of paper
Media, thickness	Roll/Cut : 0.07mm - 0.8mm
Media, handling	Roll Paper : One Roll, Front-loading, Front Output; Added Roll Paper: One Roll, Front-loading, Front Output; Cut Sheet : Front-loading, Front Output (Manual feed using media locking lever)
Cut paper	yes
Supplies	Ink Tank: M: PFI-111 (160ml) / PFI-311 (330ml) / PFI-711(700ml); MBK/BK/C/Y: PFI-110 (160ml) / PFI-310 (330ml) / PFI-710 (700ml), Print Head: PF-06, Cutter Blade: CT-07, Maintenance Cartridge: MC-30
Compatible Operating systems	32 Bit: Windows7/8.1/10; 64 Bit: Windows 7/ 8.1/10/11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022; Apple Macintosh: macOS 11.7.10~macOS 14.x
Dimensions (W, D, H), mm	Main unit with stand: 1390 x 984 x 1168 mm (Basket Opened), 1390 x 766 x 1168 mm (Basket Closed)
Other	Roll Paper: Two rolls. Automatic switching is possible. Roll Paper, Cut Sheet: Manual switching is possible Cut Sheet: 1 sheet; Dual direction roll take up unit allowing print surface to be wound inside or outside of the roll
Warranty	12 months
