P/N: DS-3E1318P-EI

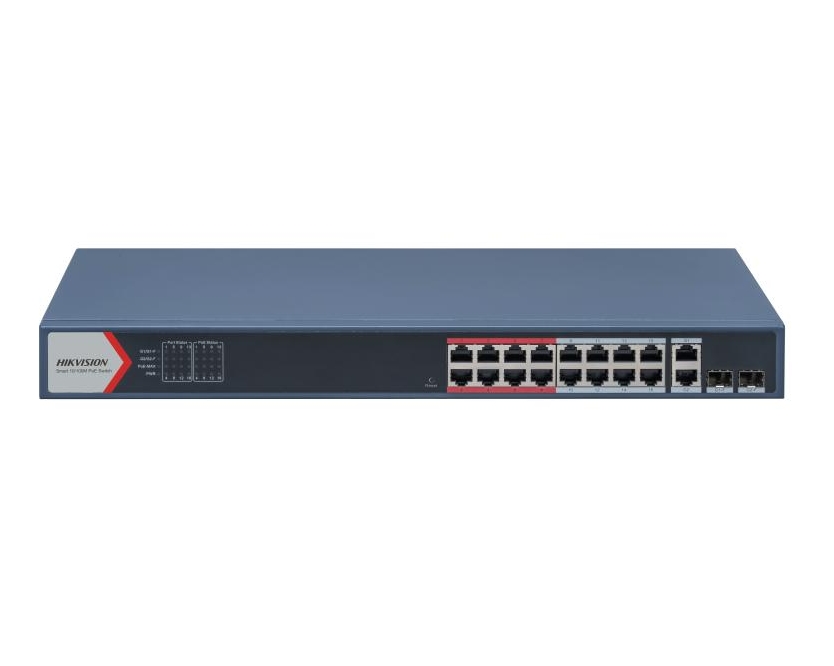

Commutator/ Switch, HikVision 18 Port Fast Ethernet Smart POE Switch, 16x 10/100 Mbps PoE ports, 2x Gigabit combos, Power Budget 230W, Up to 300 m Long Range PoE Transmission

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	18
Мain ports, type	16x10/100Base-TX
Power Over Ethernet (PoE)	IEEE 802.3af, IEEE 802.3at PoE Standard; PoE: Ports 1 to 16; Max. Port Power: 30 W; PoE Power Budget: 230 W
Uplink ports	2 dual personality
Open (10GB) slots	No
Management	Remote management via Hik-Partner Pro; Management via Hik-Central Pro; Device management via web; DHCP Client
Stackable	No
Power supply	100-240 V AC, 50/60 Hz, Max. 4 A; Max. Power Consumption: 250 W
Routing	Layer 2 Only
Memory (Flash, RAM)	-
Routing/Switching capacity, Gbps	Whole-Device Performance: 9.2 Gbps, Port Performance: 7.2 Gbps
Throughput, Mpps	Whole-Device Performance: 6.84 Mpps, Port Performance: 5.36 Mpps
MAC addresses	16000 MAC address table size
VLAN (number, standards)	VLAN is used for network scale planning and network health improvement; Support 802.1Q; Configurable VLAN ID from 1-4094; Support Trunk, Access port mode; Support Max. 4094 VLAN
QoS	-
L2 network standards	IEEE 802.1ab, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1w
L3 network standards	-
IPv6 functionality	-
Security	6 kV Surge Protection, STP/RSTP loop prevention, cable detection
Dimensions (W, D, H), mm	440.0 x 44.0 x 220.8 mm
Мounting option	Rackmount
Warranty	24 months
