P/N: DS-2CD2326G2-ISU/SL(D)

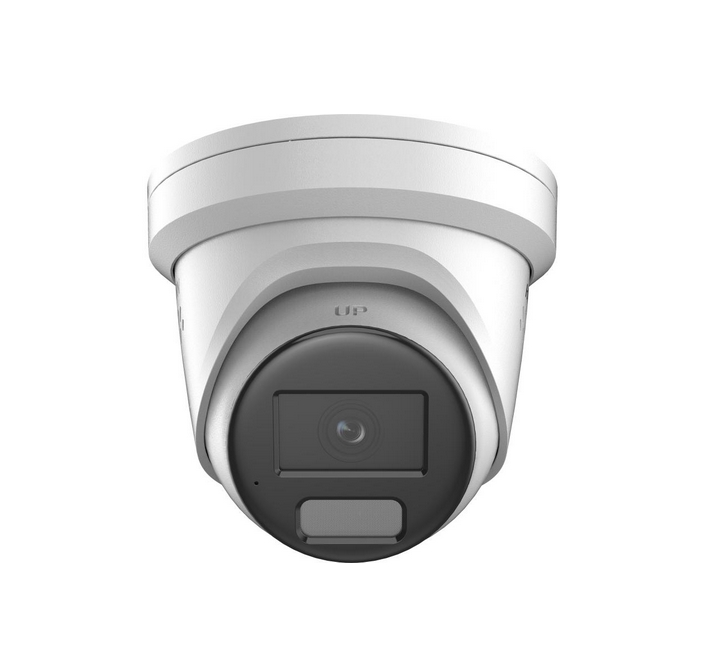

Camera, HikVision 2 MP AcuSense Fixed Turret Network Camera with Strobe Light and Audible Warning, 2.8 mm, IR up to 30m, 120 dB WDR, 3D DNR, H.265+, IP67, Built-in microphone and speaker, Built-in memory card slot up to 256 GB, 12Vdc/PoE 9.5W

HikVision 2 MP AcuSense Fixed Turret Network Camera with Strobe Light and Audible Warning, 2.8 mm, IR up to 30m, 120 dB WDR, 3D DNR, H.265+, IP67, Built-in microphone and speaker, Built-in memory card slot up to 256 GB, 12Vdc/PoE 9.5W

HikVision HiWatch Series >> HikVision 2 MP AcuSense Fixed Turret Network Camera with Strobe Light and Audible Warning Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Type	IP
Sensor, type	CMOS
Оptical sensor size	1/2.8" Progressive Scan CMOS
Resolution, MP	2 MP
Focal length	2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 129°
Minimum illumination, lx	0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
IR lighting	IR up to 30m
Мax resolution, pixels	1920x1080
Compression formats	Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG
Transmission frames speed	Main Stream - 50 Hz: 25 fps (1920x1080, 1280x720), 60 Hz: 30 fps (1920x1080, 1280x720); Sub-Stream - 50 Hz: 25 fps (640x480, 640x360), 60 Hz: 30 fps (640x480, 640x360)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Network interface	1 RJ45 10M/100M self-adaptive Ethernet port
Wireless network	-
Power Over Ethernet (PoE)	PoE: 802.3af, Class 3, 36 V to 57 V, 0.26 A to 0.16 A, max. 9.5 W
Input/Output ports	Alarm: 1 input, 1 output; Audio: 1 input (line in), 1 output (line out)
Sound	Built-in microphone and speaker
Power supply	12 VDC, 0.66 A, max. 8 W
Card slot	Built-in memory card slot up to 256 GB
Night surveillance	IR cut filter
Outdoor mounting	yes
Waterproof	IP67
Vandal-Proof	-
Operating Temperature	-30 °C to 60 °C
Humidity range	Humidity 95% or less (non-condensing)
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface
Dimensions (W, D, H), mm	138.3 x 115.4 mm
Warranty	24 months
