P/N: R8R48A

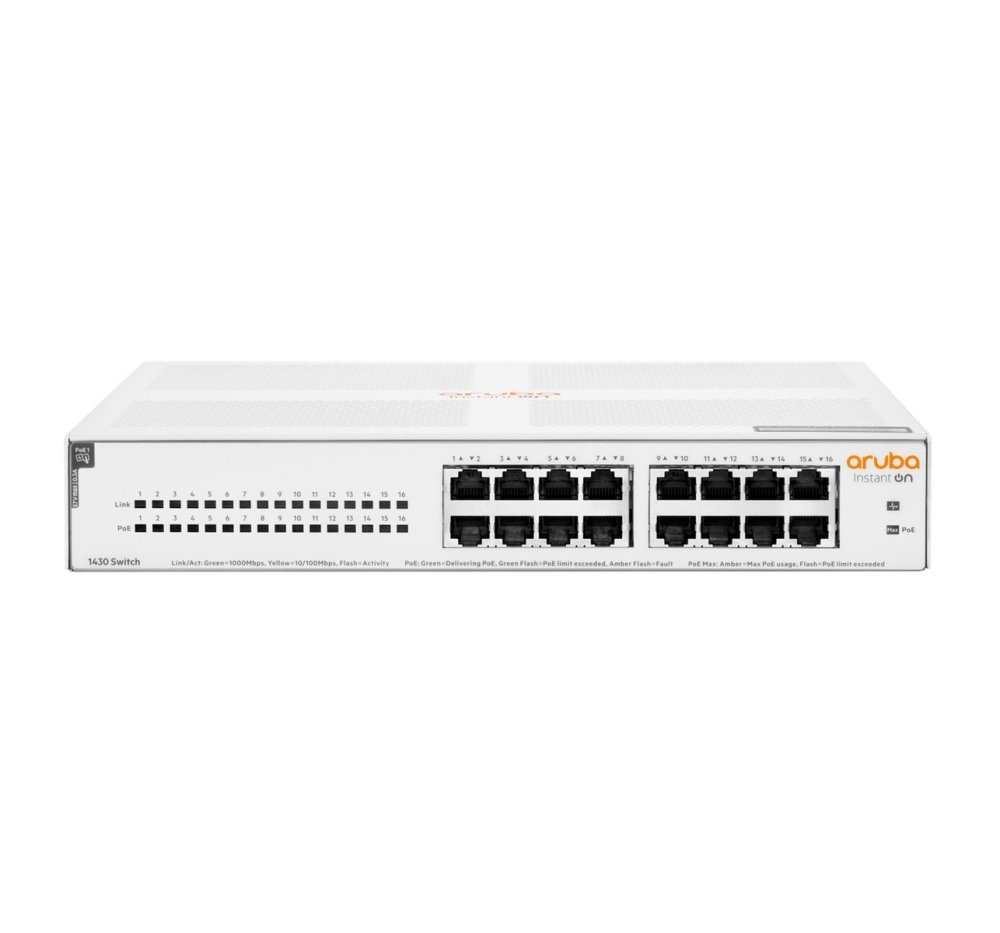

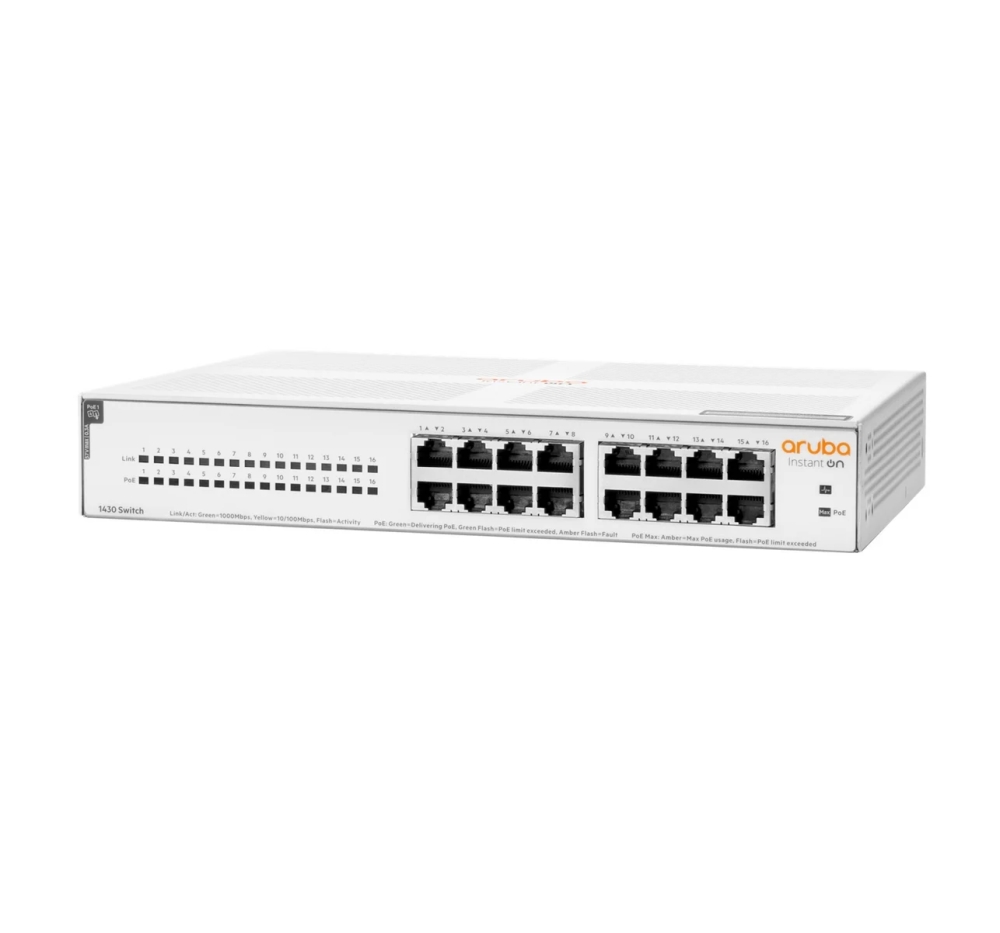

Commutator/ Switch, Aruba IOn 1430 16G 124W Sw

Recommended service
CNsys PLC, тел. 0700 16 036, имейл: support@cnsys.bg; Lirex Bg, тел. 0800 20 199, имейл: support@lirex.com; Paraflow Communications Ltd., тел. 0700 10 887, имейл: service@paraflow.bg; Stemo Ltd, тел. 07001 79 78, имейл: support@stemo.bg

Characteristic

Switch, type	Fixed Port
Total number of ports	16
Мain ports, type	16x10/100/1000Base-T
Power Over Ethernet (PoE)	124W Class 4 PoE
Uplink ports	-
Open (10GB) slots	No
Management	No
Stackable	No
Fans	Fanless
Power supply	Internal Power Supply: 100-127VAC / 200-240VAC, Current: 1.7A /0.8A, Maximum power rating: 147W
Routing	No
Memory (Flash, RAM)	Packet buffer: 2 MB
Routing/Switching capacity, Gbps	32 Gbps
Throughput, Mpps	23.8 Mpps
MAC addresses	8192 MAC addres table size
VLAN (number, standards)	-
QoS	Quality of Service provides priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification
L2 network standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at
L3 network standards	-
IPv6 functionality	-
Security	Flow control Provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node
Dimensions (W, D, H), mm	275 x 260 x 44
Мounting option	Desktop/Rackmount
Warranty	99 months
