P/N: 6K-MAP0

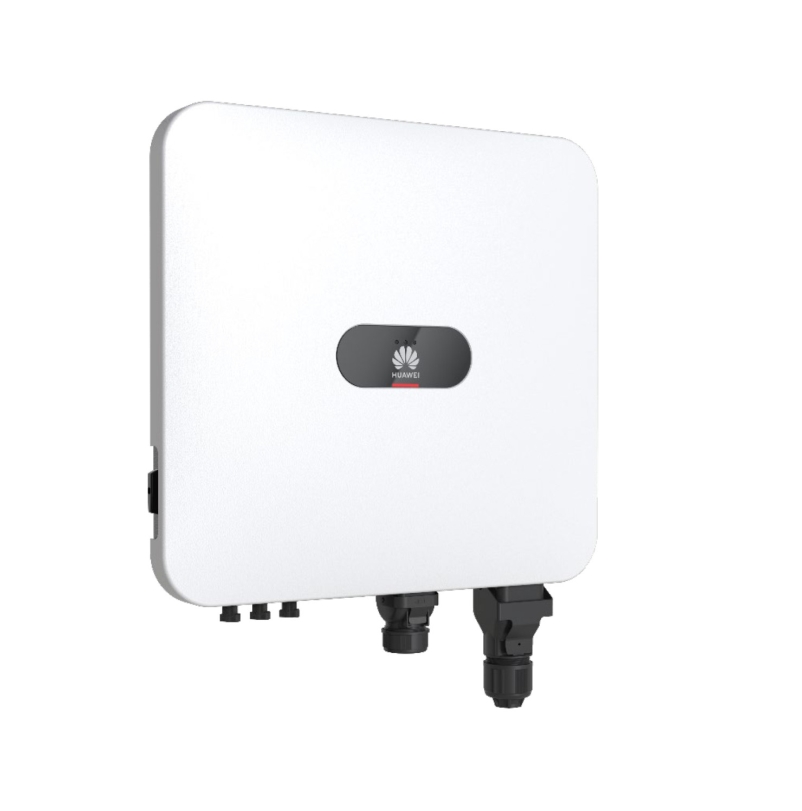

Inverter for photovoltaic panel, Huawei Inverter SUN2000-6K-MAP0 100% three-phase asymmetric load

120

HUAWEI инвертори за фотоволтаични системи >> Huawei Inverter SUN2000-6K-MAP0 100% three-phase asymmetric load Recommended service

Recommended service
HUAWEI FusionSolar, безплатен телефон: 00 80 03 38 88 888, имейл: eu_inverter_support@huawei.com, Гаранционна процедура

Characteristic

Connection, type	Three phase
Efficiency	98.6% max. efficiency, 97.7% European efficiency
Power, W	11 000 Wp Recommended max. PV power
Input voltage, V	Max. input voltage: 1100 V, Start Voltage: 160 V, Operating voltage range: 160 V ~ 1000 V, Number of MPP Trackers: 2, Max. input per MPP Tracker: 1
Battery	LUNA2000-5/10/15-S0 / LUNA2000-7/14/21-S1, Operating voltage range: 600 ~ 980V, Max. operating current: 20 A, Max. charging power: 12 000 W, Max .discharging power: 6600 W
Output power, W	6000 W Rated output power
Output power, VA	6600 VA Max. apparent power
Output Voltage, V	Rated output voltage: 220 V AC / 380 V AC, 230 V AC / 400 V AC, 240 V AC / 415 V AC 3W/N + PE
Frequency, Hz	Rated AC Grid Frequency: 50 Hz / 60 Hz
Output current, A	Max. Output Current: 10.0 A
Protections	Asymmetric load, Input-side disconnection device, Anti-islanding/DC reverse polarity/DC-AC surge/AC overcurrent/AC short-circuit/AC overvoltage/Arc fault protection, Residual current/Insulation/Connector temperature detectionl, Ripple receiver control
Indicators	LED Indicators
Cooling type	Natural convection
Operating Temperature	-25°C ~ 60°C
Humidity range	0 ~ 100%
Interface	RS485, WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional); 4G/3G/2G via Smart Dongle-4G (Optional), EMMA (Optional)
Security	EN/IEC 62109-1, EN/IEC 62109-2
Standards	Grid connection standards: IEC 61727, IEC 62116, MEA/PEA, G99, PGC Resolution No.07, NRS 097-2-1, EN 50549-1, VDE 4105, UTE15-712-1/VFR 2019, UNE 217002, NTS 631, RD244 (UNE 217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11
Color	White
Dimensions (W, D, H), mm	490 x 460 x 130 mm
Weight, kg	21 kg
Other	IP66 Protection Degree
Warranty	120 months
