P/N: 11AS-S-V1_WIFI

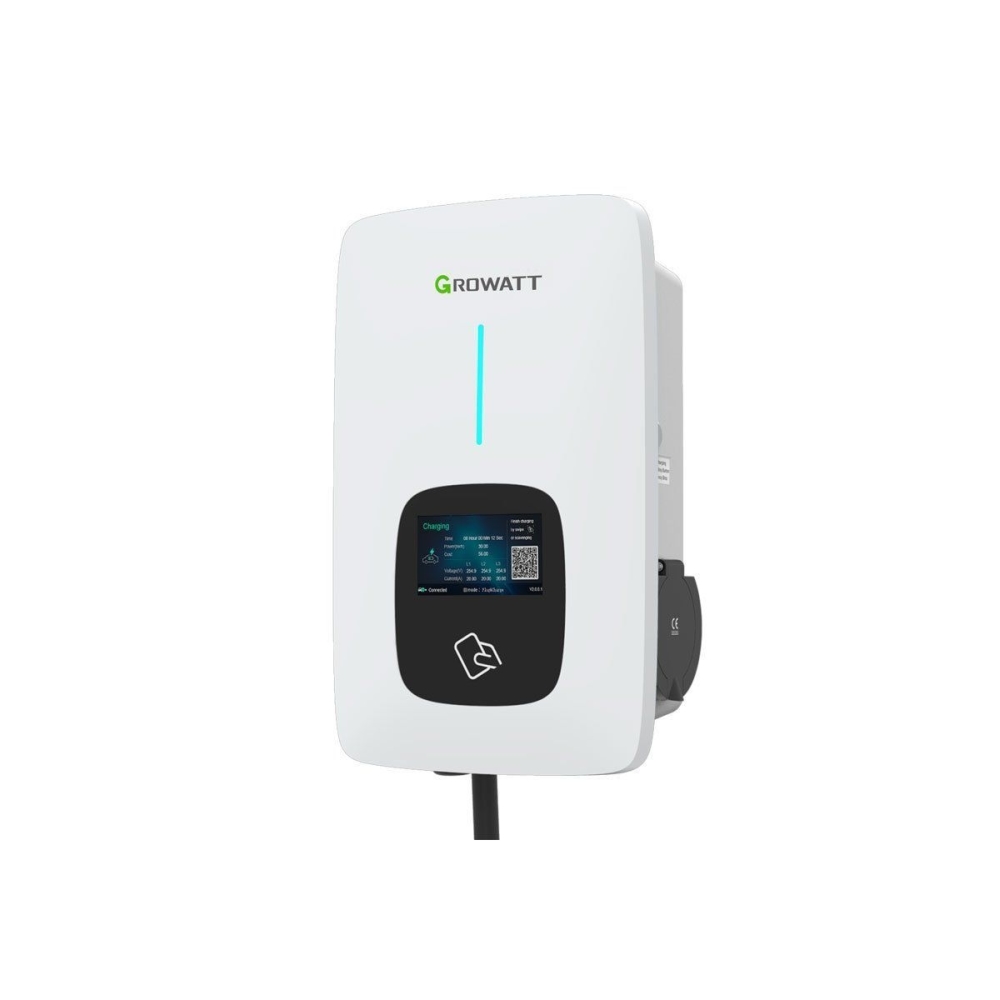

Charging station, Growatt 3Phase 11KW Socket

36

Characteristic

Compatible with Автомобили
Inference type IEC 62196-2, Type 2
Number of outputs 1
Output power, W 11 000 W
Output Voltage, V 400V AC
Output current, A 16 A
Input voltage, V 400V AC
Number of phases 3
Nominal power, kW 11 kW
Wireless communication Wi-Fi, 4G (Optional)
Wall mounting yes
Outdoor mounting yes
Security Over/Under voltage protection, Over load protection, Short circuit protection, Earth leakage protection - 6mA DC fault current protection, Over-temp protection, Lightning protection, IP65 Protection degree
Operating Temperature -25°C ~ +50°C
Cable length, m -
Dimensions (W, D, H), cm 240 x 380 x 164 mm
Weight, kg 10 kg
Standards CE (LVD&EMC, EN 61851-1, EN61851-22, EN61000-6-3, EN61000-6-1), IEC62196
Warranty 36 months

EAN: -
