P/N: 6248C003AA

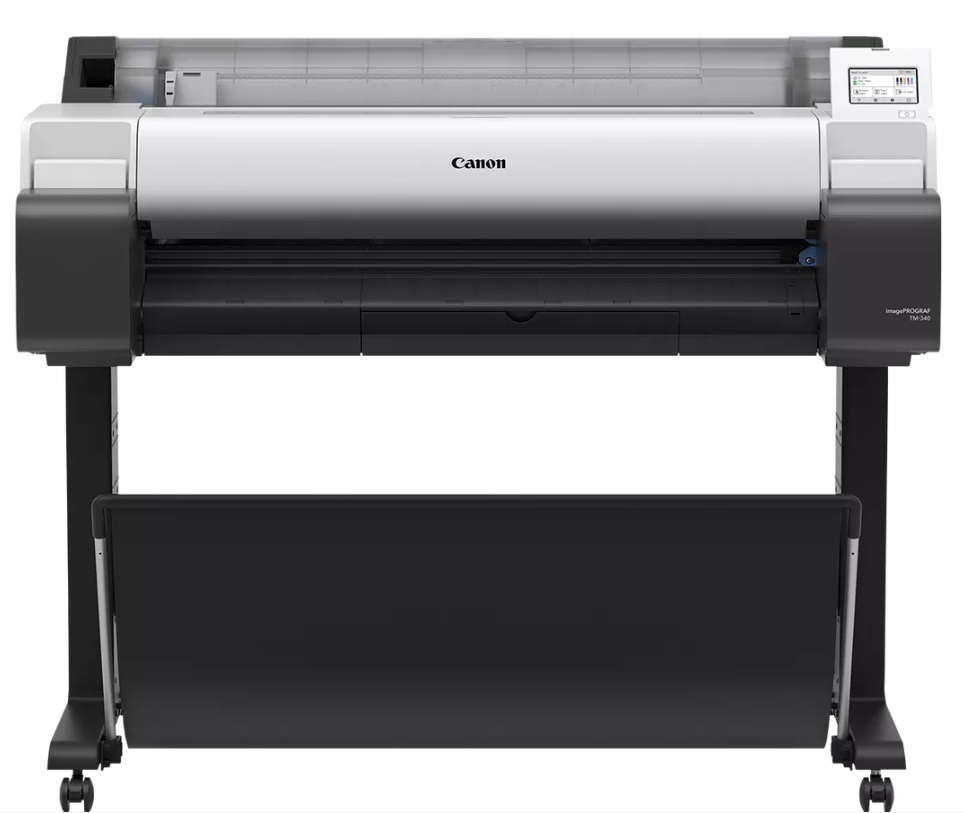

InkJet Plotter, Canon imagePROGRAF TM-340 incl. stand

CANON плотери >> Canon imagePROGRAF TM-340 incl. stand Recommended service
Recommended service
СТЕМО ЕООД, тел. 07001 79 78; имейл: support@stemo.bg, сайт: www.stemo.bg/bg/support





Characteristic

Model, size /mm/ 914 mm (36")
Media, format B2, B1, A1, A0, B4, A3, A3+, A2
Resolution 2400 x 1200 dpi
Speed, sec Poster: Plain paper (A0) 0:43 (Fast Economy Mode) 0:43 (Fast) 1:25 (Standard); CAD Drawing: Plain paper (A1) 0:21 (Fast Economy Mode) 2.7ppm, Plain paper (A0) 0:41 (Fast Economy Mode) 0:42 (Fast) 1:25 (Standard)
Print technology Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
Ink, type 5 colour MBK/BK/C/M/Y
Number of print cartridges 5 colours MBK/BK/C/M/Y
Droplet size 5 pl
Guaranteed minimum line width n/a
Line accuracy ±0.1 % or less
Interface USB B Port: Hi-Speed USB
Network Ethernet: IEEE802.3ab (1000base-T), IEEE802.3u (100BASE-TX)/IEEE802.3 (10BASE-T); Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
Memory, GB 2GB; Expansion slot: No
Hard disk, GB -
Print languages HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only)
Print length (roll), m Minimum Printable Length Roll paper: 203.2mm Cut sheet: 279.4mm; Maximum Printable Length Roll paper : 18m (varies according to the OS and application) Cut sheet : 1.6m
Print width (roll), mm Roll paper: 203.2 - 917mm; Cut sheet: 210 - 917mm
Media, type Different types of paper
Media weight, g/m2 n/a
Media, thickness 0.07mm - 0.8mm
Media, handling Roll Paper : One Roll, Upper-loading, Front Output; Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever)
Cut paper yes

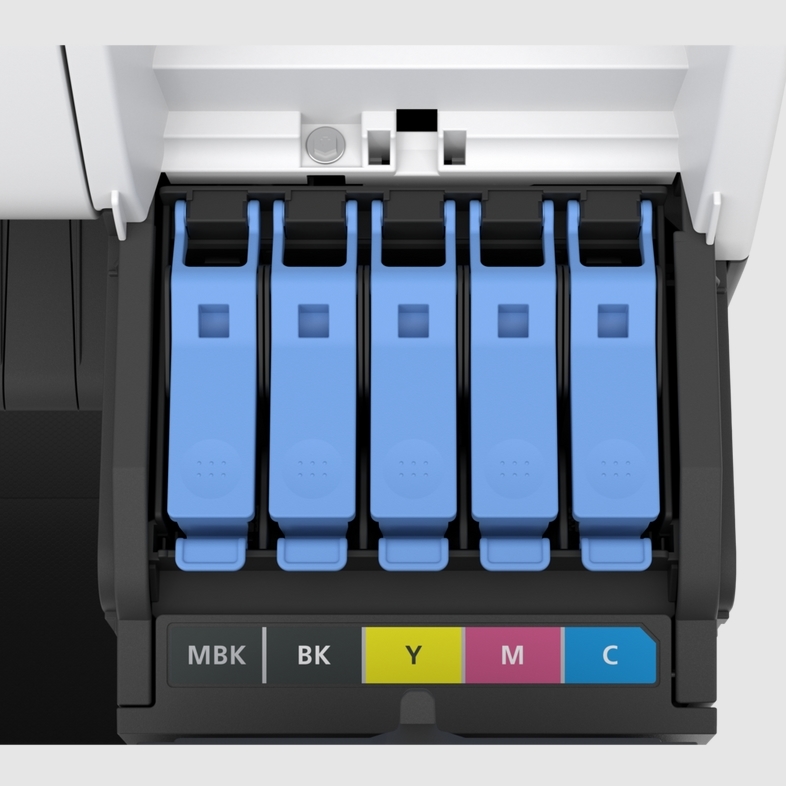

Supplies Ink Tank: M: PFI-031 (55ml), MBK/BK/C/Y: PFI-030 (55ml) Print Head: PF-06 Cutter Blade: CT-08 Maintenance Cartridge: MC-31
Compatible Operating systems 32 Bit: Windows7 / 8.1 / 10; 64 Bit: Windows 7 / 8.1 / 10 / 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022; Apple Macintosh: macOS 10.15.7~macOS 13
Dimensions (W, D, H), mm Main unit with stand 1285 x 868 x 1060 mm (Operation panel is not tilted up/Basket Opened), 1285 x 756 x 1060 mm (Operation panel is not tilted up/Basket Closed)
Warranty 12 months

EAN: 4549292221152
