P/N: C1300-16P-2G

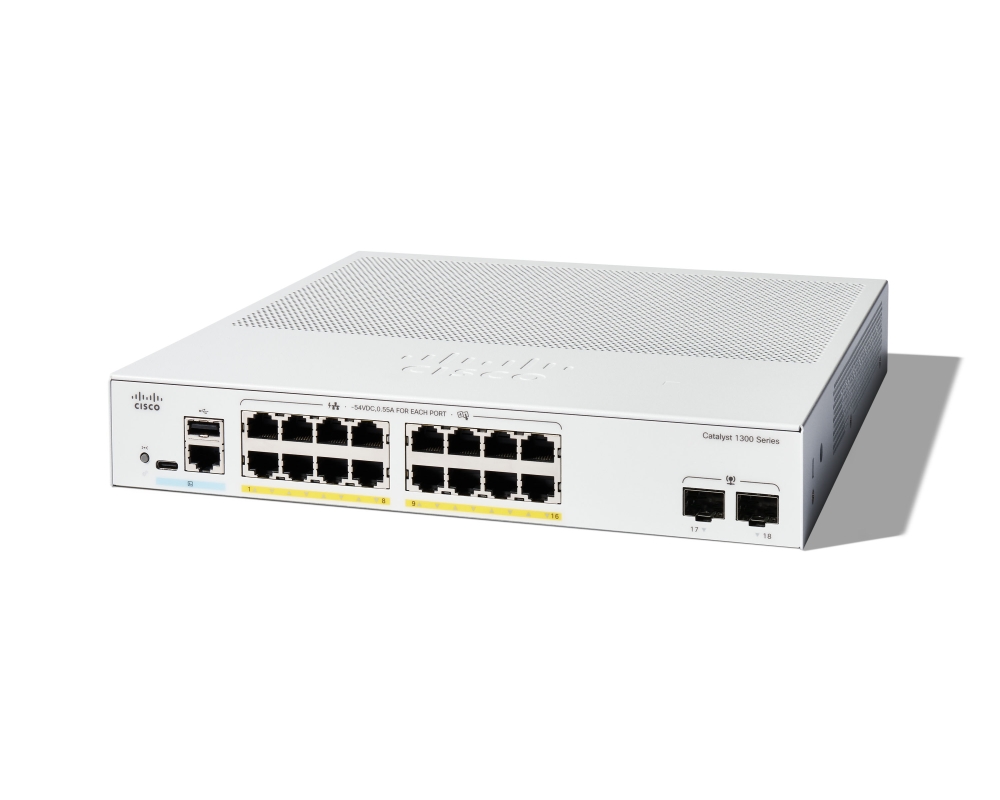

Commutator/ Switch, Cisco Catalyst 1300 16-port GE, PoE, 2x1G SFP

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Catalyst 1300 16-port GE Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	18
Мain ports, type	16x 10/100/1000Base-T PoE+ ports with 120W power budget
Power Over Ethernet (PoE)	PoE+ (120W); 16 ports; 802.3at PoE+, 802.3af
Uplink ports	2xSFP
Open (10GB) slots	-
Management	Cisco Business Dashboard; Cisco Business mobile app; Cisco Network Plug and Play (PnP) agent; Web user interface; SNMP; MIB; RMON; RSPAN; sFlow agent; DHCP; SCP; Other: Traceroute, single IP management, HTTP/HTTPS, SSH, RADIUS and etc.
Stackable	-
Fans	Fanless
Power supply	100-240V 50-60 Hz, internal, universal
Routing	Dynamic Layer 3 routing
Memory (Flash, RAM)	512 MB (Flash), 1 GB DDR4 (DRAM), 1.5 MB (Packet buffer)
Routing/Switching capacity, Gbps	36 Gbps
Throughput, Mpps	26.78 Mpps
MAC addresses	16 000 addresses
VLAN (number, standards)	Support for up to 4093 VLANs simultaneously; Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN; Management VLAN; Private/Guest/unauthenticated/Auto surveillance/CPE/Voice/Dynamic/Multicast TV VLAN
QoS	8 hardware queues; Strict priority and WRR; Port-based, 802.1p VLAN priority-based, IPv4/v6 IP precedence/Type of Service (ToS)/DSCP-based, Differentiated Services (DiffServ), classification and remarking ACLs, trusted QoS Queue assignment based on DSCP
L2 network standards	IEEE 802.3, IEEE 802.3u/ab/ad/z/x/af/at; IEEE 802.1D (STP)/1Q/p VLAN/w RSTP/s Multiple STP/X Port Access Authentication; RFC
IPv6 functionality	IPv6 host mode, IPv6 over Ethernet, dual IPv6/IPv4 stack; IPv6 neighbor and router discovery (ND); DAD, ICMP; DHCPv6; IPv6 over IPv4 network with ISATAP tunnel support; IPv6 QoS; ACL; First Hop Security; MLD
Security	SSH, SSL, IEEE 802.1x (authenticator role):RADIUS authentication and accounting, MD5 hash, guest VLAN, unauthenticated VLAN, single/multiple host mode, and single/multiple sessions; MAC/Web-based authentication; STP; DHCP; IPSG; DAI; IPMB; SCT; SSD; ACLs
Dimensions (W, D, H), mm	268 x 297 x 44 mm
Мounting option	Rackmount
Warranty	60 months
