P/N: 25M5

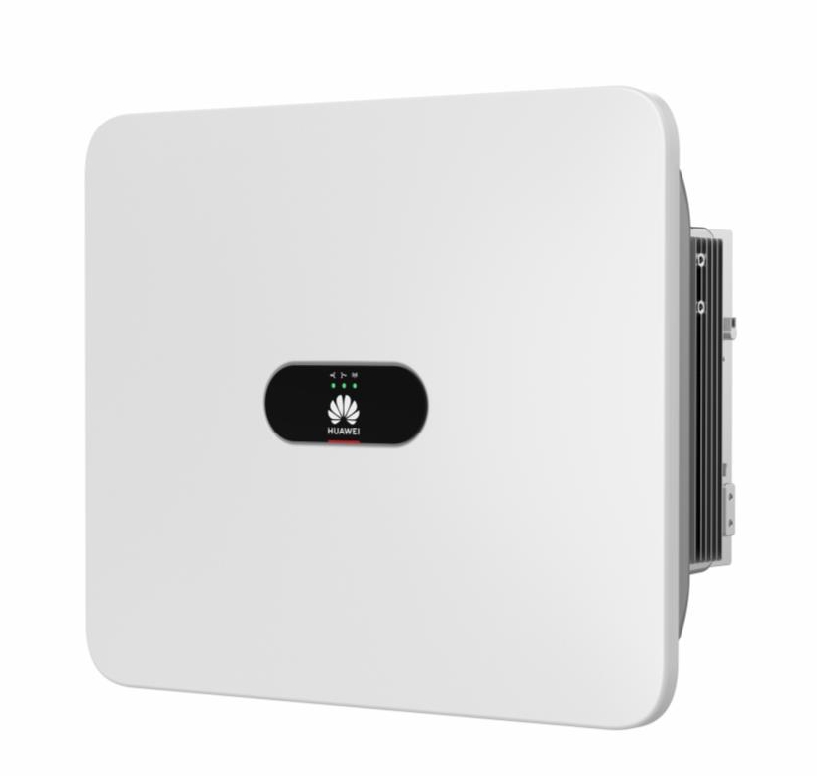

Inverter for photovoltaic panel, Huawei Inverter SUN2000-25KTL-M5 (25 kW)* Commercial Three Phase

Recommended service
HUAWEI FusionSolar, безплатен телефон: 00 80 03 38 88 888, имейл: eu_inverter_support@huawei.com, Гаранционна процедура

Characteristic

Connection, type	Three phase
Efficiency	98.4% max. efficiency
Power, W	37 500 Wp Recommended max. PV power
Input voltage, V	Max. input voltage: 1100 V, Rated input voltage: 600 V, MPPT Operating voltage range: 200 V ~ 1000 V, Number of MPP trackers: 2, Max. number of inputs: 4
Output power, W	25 000 W Rated output power
Output power, VA	27 500 VA Max. apparent power
Output Voltage, V	Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 239.6 Vac / 415 Vac, 3W + N + PE
Frequency, Hz	Rated AC grid frequency: 50 Hz / 60 Hz
Output current, A	Max. output current: 42.0A/380Vac, 39.9A/400Vac, 38.5A/415Vac
Protections	IP66, Input-side disconnection device, Anti-islanding protection, AC over-current protection, DC reverse-polarity protection, String fault detection, DC/AC surge protection (TYPE II/CLASS II), Residual current monitoring unit, Arc fault protection
Indicators	LED indicators
Cooling type	Smart air cooling
Operating Temperature	-25 ~ 60 °C
Humidity range	0% RH ~ 100% RH
Interface	RS485, WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional), 4G/3G/2G via Smart Dongle-4G (Optional)
Security	EN/IEC 62109-1, EN/IEC 62109-2
Standards	G99, EN 50549, CEI 0-21, CEI 0-16, VDE-AR-N-4105, VDE-AR-N-4110, C10/11, ABNT, VFR 2019, UNE 217001, UNE 217002, RD 244, TOR D4, IEC61727, IEC62116
Color	White
Dimensions (W, D, H), mm	546 x 460 x 228 mm
Weight, kg	21 kg
Warranty	60 months
