P/N: EMAB05-30R

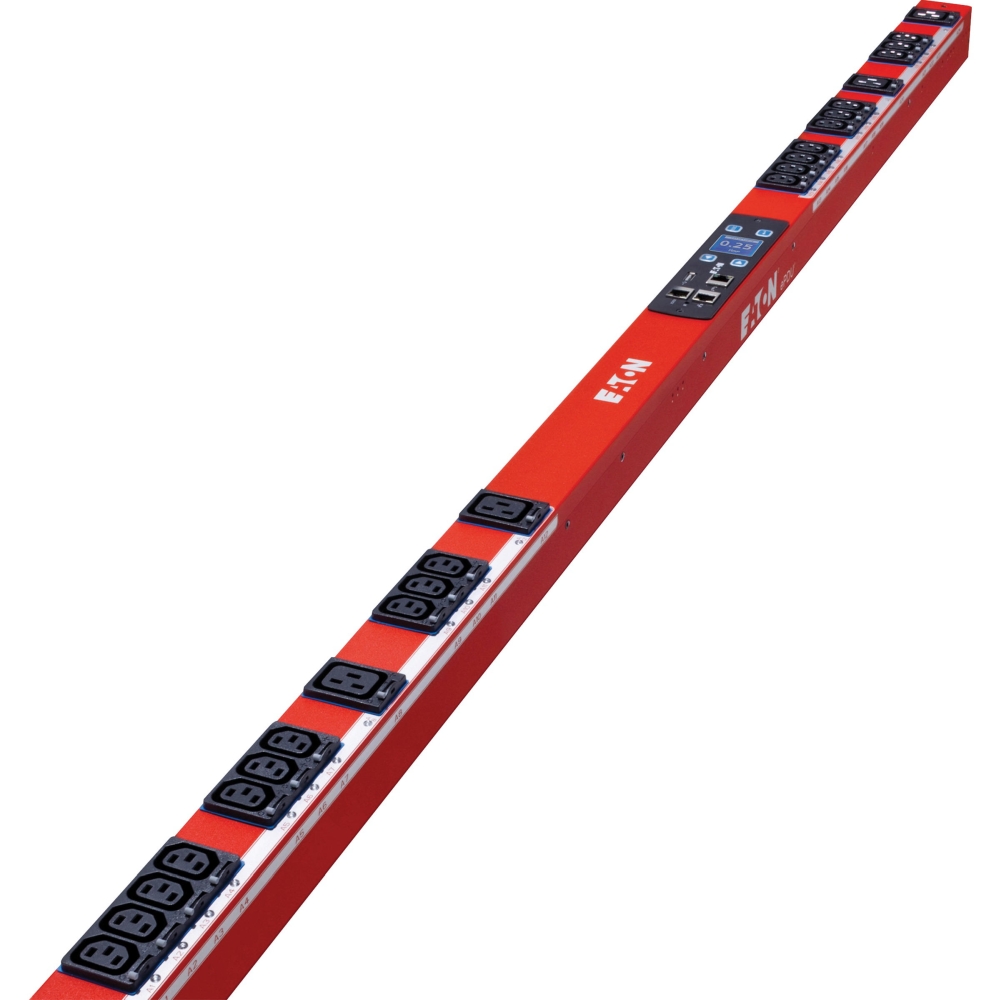

Filter, Eaton ePDU MA 0U (309 32A 1P) 20xC13, 4xC19, Red

24
EATON непрекъсваеми ТЗИ >> Eaton ePDU MA 0U (309 32A 1P) 20xC13 Recommended service
Recommended service
Мундус Сървисиз АД, тел. 0883 888 333, адрес: гр. София, бул. Искърско шосе 7, Търговски Център „Европа“, сграда 9, етаж -1, e-mail: ups_service@mundus.bg





Characteristic

Input voltage, V 200-240V
Input frequency, Hz 50/60 Hz
Input current, A 32 A
Max. power, kW 7.4 kW
Number of phases 1
Input connection IEC-60309
Number of outputs 24
Inference type 20x IEC-320-C13, 4x IEC-320-C19
Cable length, m 3 m
Security 2 single pole Circuit Breakers; Phase Metering, Circuit Breaker Current Metering and Input Metering; Hot-Swap Control module with advanced LCD; Built-in outlet P-lock system, locking mechanism with P-lock power cords
Installation Mounting accessories
Form factor 0U (Vertical)
Standards IEC 60950-1, IEC 61000-6-2, IEC 61000-6-4; CE Marked, RoHS Compliant, EAC
Dimensions (W, D, H), mm 52 x 53 x 1604 mm
Weight, g 7000 g
Color Red
Other Outlet and IT Equipment Switching/reboot /sequencing across A and B feed in Daisy-Chain
Warranty 24 months

EAN: 3553340696626
