P/N: 215KTL-H0

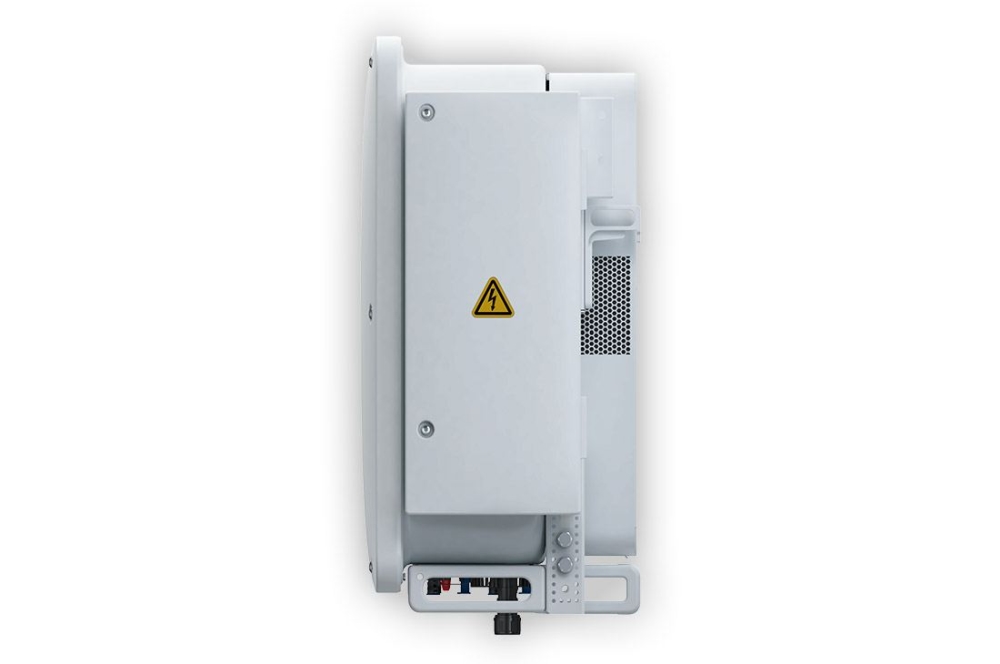

Inverter for photovoltaic panel, Huawei Inverter SUN2000-215KTL-H0 Three Phase

Recommended service
HUAWEI FusionSolar, безплатен телефон: 00 80 03 38 88 888, имейл: eu_inverter_support@huawei.com, Гаранционна процедура

Characteristic

Connection, type	Three phase
Efficiency	99.0% max. efficiency
Power, W	200 000 W Nominal AC Active Power
Input voltage, V	Max. input voltage: 1500 V, Start Voltage: 550 V, Operating voltage range: 500 V ~ 1500 V, Number of MPP Trackers: 9, Number of Inputs: 18, Nominal Input Voltage: 1080 V
Output power, W	Nominal AC Active Power: 200 000 W
Output power, VA	Max. AC Apparent Power: 215 000 VA
Output Voltage, V	Nominal Output Voltage: 800 V, 3W + PE
Frequency, Hz	Rated AC Grid Frequency: 50 Hz / 60 Hz
Output current, A	Nominal Output Current: 144.4 A, Max. Output Current: 155.2 A
Protections	Input-side Disconnection Device, Anti-islanding Protection, AC Overcurrent Protection, DC Reverse-polarity Protection, PV-array String Fault Monitoring, DC Surge Arrester, AC Surge Arrester, DC Insulation Resistance Detection, Residual Current Monitoring
Indicators	LED Indicators
Cooling type	Smart Air Cooling
Operating Temperature	-25°C ~ 60°C
Humidity range	0 ~ 100%
Interface	RS485, MBUS, USB, WLAN + APP
Color	White
Dimensions (W, D, H), mm	1035 x 700 x 365 mm
Weight, kg	84 kg
Other	IP66, Waterproof Connector + OT/DT Terminal
Warranty	60 months
