P/N: MAX_60KTL3

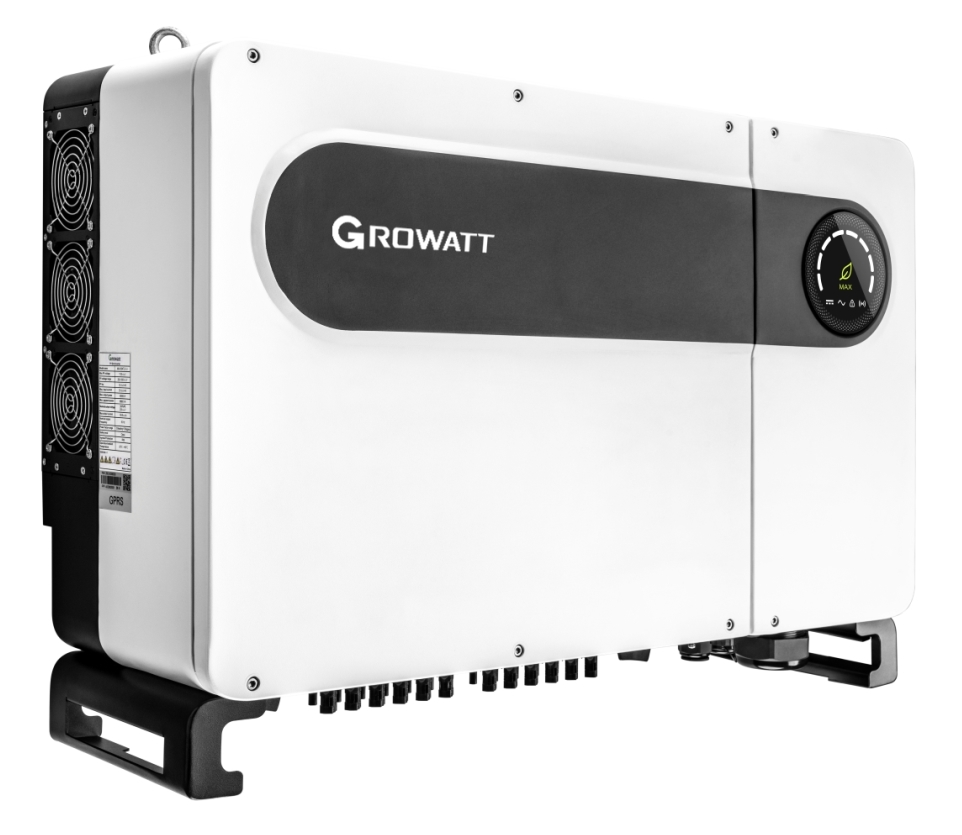

Inverter for photovoltaic panel, Growatt MAX 60KTL3 LV (with AFCI, type II SPD) Three Phase On Grid Inverter

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Connection, type	Three phase
Efficiency	98.8% max. efficiency, 98.4% European efficiency
Power, W	90 000 W
Input voltage, V	585 V (nominal); Max. DC voltage: 1100 V; Start voltage: 250 V; MPPT voltage range: 200-1000V
Output power, W	60 000 W
Output power, VA	66 600 VA
Output Voltage, V	220V/380V, 230V/400V (340-440V)
Frequency, Hz	50/60 Hz (45-55Hz/55-65 Hz)
Output current, A	96.6 A
Protections	DC reverse polarity protection, DC Switch, DC surge protection (Type II), Insulation resistance monitoring, AC short-circuit protection, Ground fault/Grid monitoring, Anti-islanding protection, Residual-current monitoring unit, String monitoring
Indicators	LED display
Cooling type	Smart air cooling
Operating Temperature	–25°C - +60°C
Humidity range	0 - 100%
Interface	RS485, USB; Optional: WiFi, RF, GPRS
Standards	CE, VDE0126, Greece, EN50438, EN50549-1, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, CEI 0-16, N4105, DRRG, G98/G99, G100, NRS 097-2-1, MEA, PEA, KSC8565
Color	White
Dimensions (W, D, H), mm	860 x 600 x 300 mm
Weight, kg	82 kg
Other	IP65
Warranty	60 months
