P/N: MID_33KTL3-X

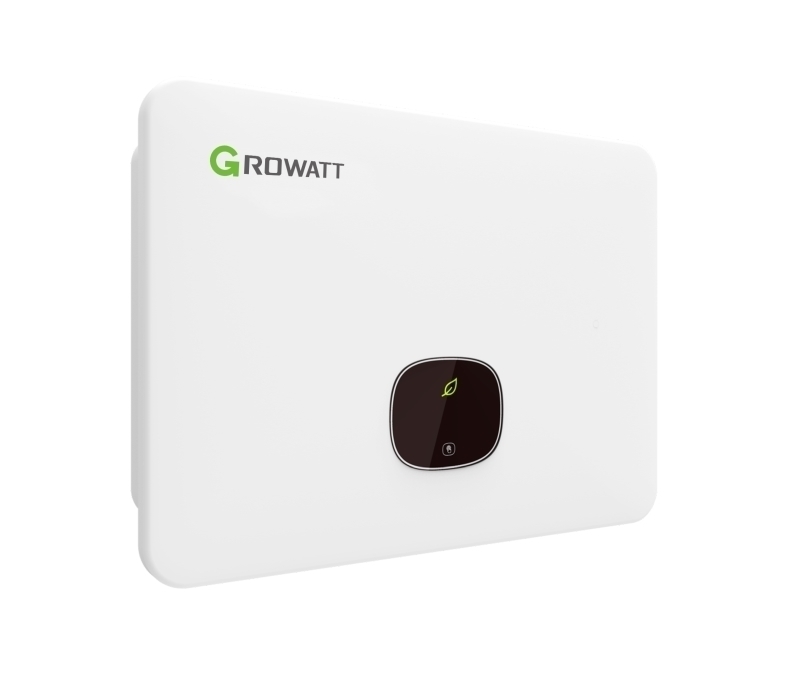

Inverter for photovoltaic panel, Growatt MID 33KTL3-X (with AFCI, type II SPD) Three Phase On Grid Inverter

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Connection, type	Three phase
Efficiency	98.8% max. efficiency, 98.5% European efficiency
Power, W	49 500 W
Input voltage, V	600 V (nominal); Max. DC voltage: 1100 V; Start voltage: 250 V; MPPT voltage range: 200-1000V
Output power, W	33 000 W
Output power, VA	36 600 VA
Output Voltage, V	220V/380V, 230V/400V (340-440V)
Frequency, Hz	50/60 Hz (45-55Hz/55-65 Hz)
Output current, A	55.5 A
Protections	DC reverse polarity protection, DC Switch, AC/DC surge protection (Type II), Insulation resistance monitoring, AC short-circuit protection, Ground fault/Grid monitoring, Anti-islanding protection, Residual-current monitoring unit, String monitoring
Indicators	OLED+LED
Cooling type	Smart air cooling
Operating Temperature	-25 °C - +60 °C
Humidity range	0 - 100%
Interface	RS485, USB; Optional: WiFi, GPRS, RF, LAN
Standards	CE, VDE0126, Greece, EN50549, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, CEI0-16, N4105, TOR Erzeuger, G98/G99, G100, AS/NZS 3100, AS4777, UNE217001, UNE206007, PO12.2, KSC8565
Color	White
Dimensions (W, D, H), mm	580 x 435 x 230 mm
Weight, kg	29.5 kg
Other	IP66
Warranty	60 months
