P/N: MIN_3000_TL-XH

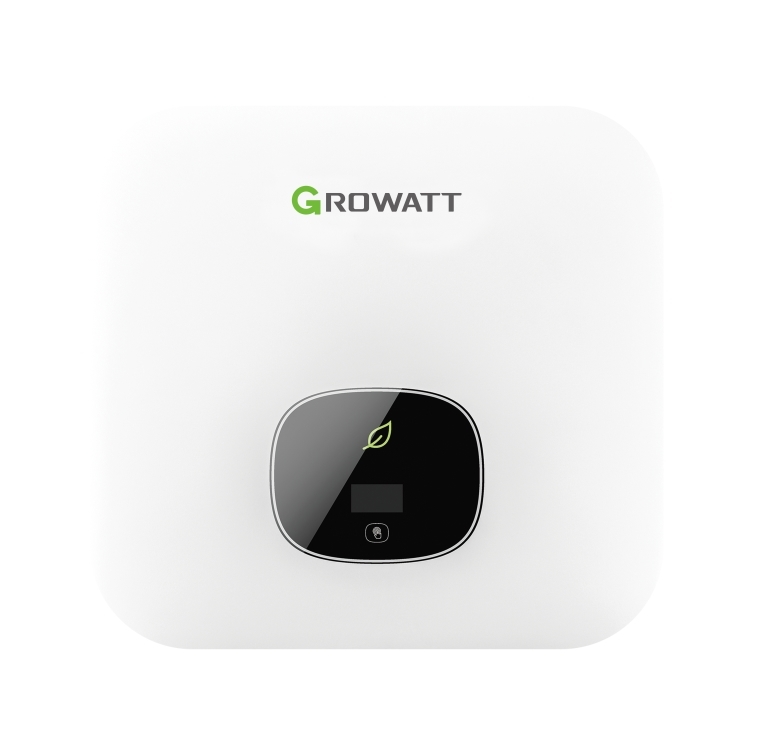

Inverter for photovoltaic panel, Growatt MIN 3000 TL-XH Single Phase On Grid Inverter (Support Work with Battery)

120

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Connection, type	Single phase
Efficiency	98.2% max. efficiency, 97.1% European efficiency
Power, W	6000 W
Input voltage, V	500 V
Battery	ARK XH Battery System (5.12kWh~17.9kWh)
Output power, W	3000 W
Output power, VA	3000 VA
Output Voltage, V	230V (180-280V)
Frequency, Hz	50/60 Hz (45-55Hz/55-65 Hz)
Output current, A	13.6 A
Protections	DC reverse polarity protection, DC switch, DC/AC surge protection (Type II/Type III), Insulation resistance monitoring, AC short-circuit protection, Ground fault monitoring, Grid monitoring, Anti-islanding protection, Residual-current monitoring unit
Indicators	OLED+LED
Cooling type	Natural convection
Operating Temperature	–25°C - +60°C
Humidity range	0 - 100%
Interface	RS485, USB, Optional: Wi-Fi, GPRS, RF, LAN
Standards	CE, IEC62109, AS/NZS 4777.2, CEI 0-21, VDE-AR-N 4105, VDE 0126-1-1, UTE C 15-712-1, EN 50549, IEC 62116, IEC 61727, G98/G99
Color	White
Dimensions (W, D, H), mm	375 x 350 x 160 mm
Weight, kg	10.8 kg
Other	IP65
Warranty	120 months
