P/N: MIC_3300TL-X

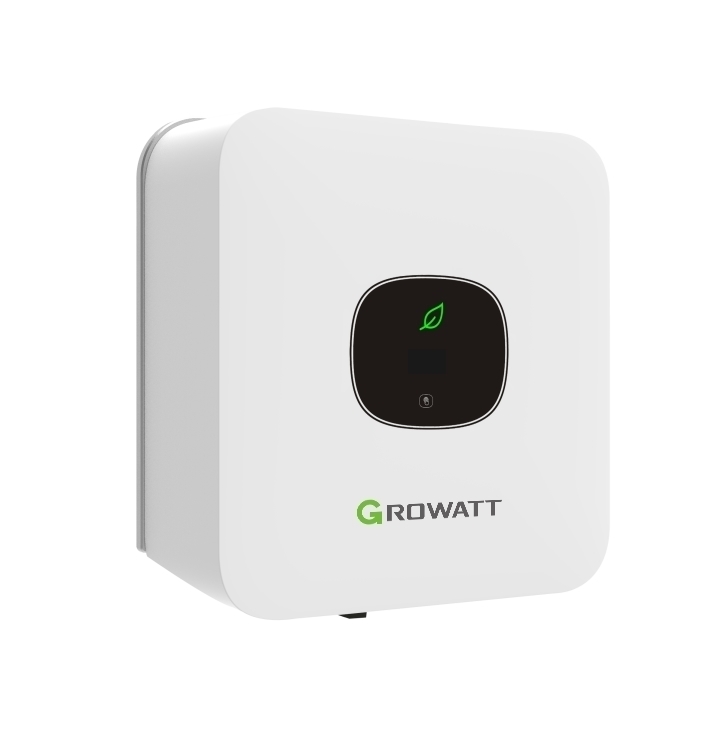

Inverter for photovoltaic panel, Growatt MIC 3300TL-X Single Phase On Grid Inverter

120

Characteristic

Connection, type Single phase
Efficiency 97.6% max. efficiency, 97.1% European efficiency
Power, W 4290 W
Input voltage, V 550 V
Output power, W 3300 W
Output power, VA 3300 VA
Output Voltage, V 230V (180-280V)
Frequency, Hz 50/60 Hz (45-55Hz/55-65 Hz)
Output current, A 14.3 A
Protections DC reverse polarity protection, DC switch, AC/DC surge protection (Type III/Type III), Insulation resistance monitoring, AC short-circuit protection, Ground fault monitoring, Grid monitoring, Anti-islanding protection, Residual-current monitoring unit
Indicators OLED+LED
Cooling type Natural convection
Operating Temperature –25°C - +60°C
Humidity range 0-100%
Interface RS485, USB; Optional: Wi-Fi/ GPRS/ RF/LAN
Standards CE, AS4777, AS/NZS 3100, CEI 0-21, VDE-AR-N 4105, VDE 0126-1-1, UTE C 15-712-1, EN50549, IEC 60068, IEC 61683, IEC 62116, IEC 61727, INMETRO, G98, C10/C11, UNE217001, UNE206007, PO12.2
Color White
Dimensions (W, D, H), mm 274 x 254 x 138 mm
Weight, kg 6.2 kg
Other IP65
Warranty 120 months

EAN: -
