P/N: DDSU

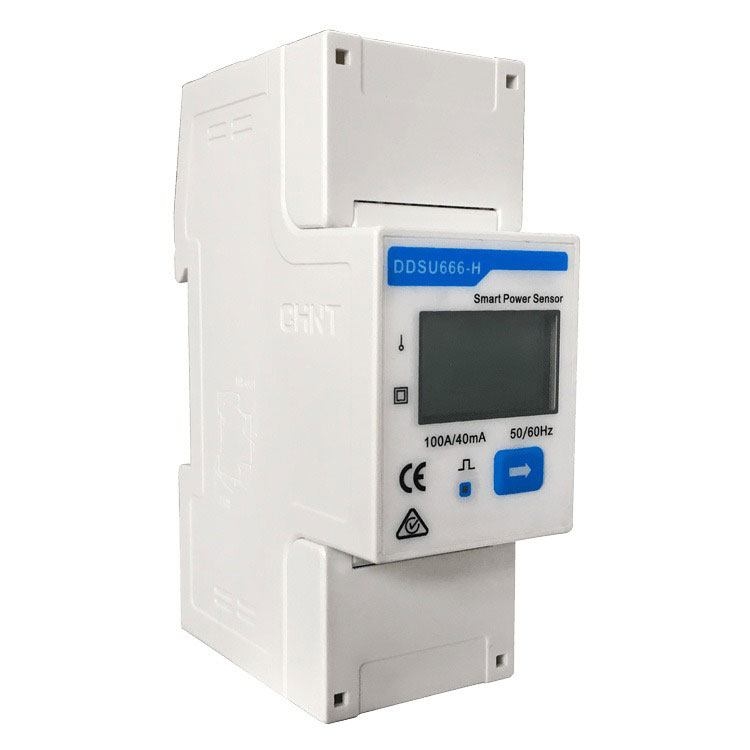

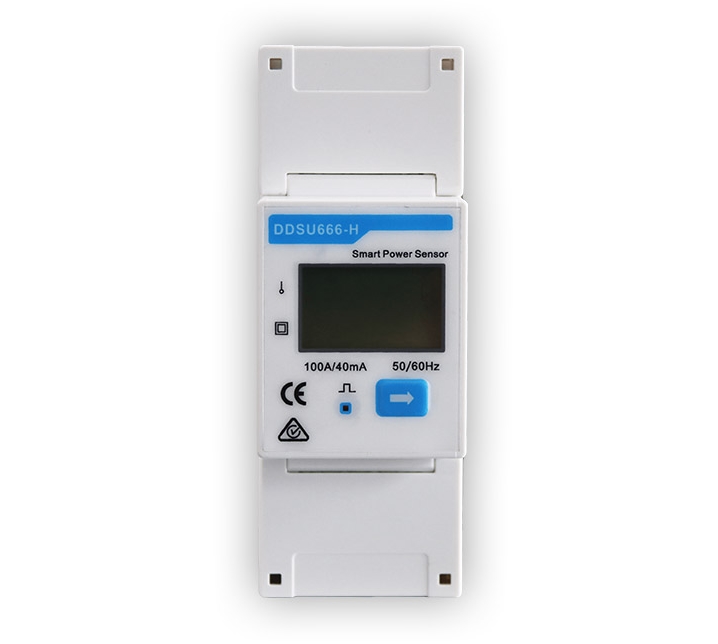

Accessory, Huawei DDSU666-H (1 phase)

24
HUAWEI инвертори за фотоволтаични системи >> Huawei DDSU666-H (1 phase) Recommended service
Recommended service
HUAWEI FusionSolar, безплатен телефон: 00 80 03 38 88 888, имейл: eu_inverter_support@huawei.com, Гаранционна процедура





Characteristic

Features 1 Class 1 measurement accuracy; LCD display, easy to set and check; Overall power consumption <= 1 W
Features 2 Power grid type: 1P2W, Input voltage (phase voltage): 176 Vac ~ 288 Vac, Power consumption: <= 0.8 W
Features 3 Phase voltage: 176 Vac ~ 288 Vac, Current: 0 ~ 100 A
Features 4 Measurement Accuracy: Voltage (±0.5 %), Current/Power/Energy (±1 %), Frequency (±0.01 Hz)
Features 5 Interface: RS485, Baud rate: 9600 bps, Communication protocol: Modbus-RTU
Features 6 Operating temperature range: -25 °C to 60 °C, Storage temperature range: -40 °C to 70 °C, Operating humidity: 5% RH - 95% RH (non-condensing)
Features 7 Mounting type: DIN35 Rail; Dimension (H x W x D): 100 x 36 x 65.5 mm, Weight (including cables): 1.2 kg
Warranty 24 months

EAN: -
