P/N: 36KM3

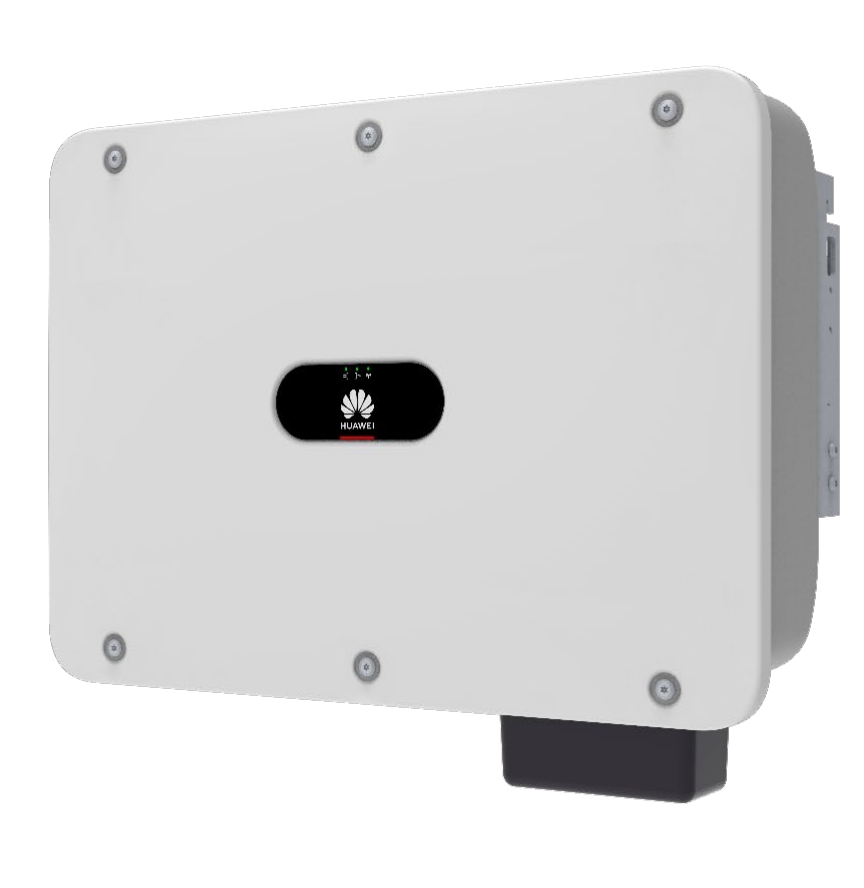

Inverter for photovoltaic panel, Huawei Inverter SUN2000-36KTL-M3 (40 kW)* Commercial Three Phase

Recommended service
HUAWEI FusionSolar, безплатен телефон: 00 80 03 38 88 888, имейл: eu_inverter_support@huawei.com, Гаранционна процедура

Characteristic

Connection, type	Three phase
Efficiency	98.7% max. efficiency
Input voltage, V	Max. input voltage: 1100 V, Rated input voltage: 600 V, MPPT Operating voltage range: 200 V ~ 1000 V, Number of Inputs: 8, Number of MPP Trackers: 4
Output power, W	36 000 W Rated AC active power
Output power, VA	40 000 VA Max. AC apparent power
Output Voltage, V	Rated output voltage: 230 Vac / 400 Vac / 480 Vac, 3W/N+PE
Frequency, Hz	Rated AC grid frequency: 50 Hz / 60 Hz
Output current, A	Max. output current: 58.0 A, Rated output current: 52.0 A
Protections	IP66, Input-side Disconnection Device, Anti-Islanding protection, AC overcurrent protection, DC Reverse-polarity Protection, DC/AC Surge Arrester, DC Insulation Resistance Detection, Arc fault protection, Ripple Receiver Control
Indicators	LED indicators
Cooling type	Natural convection
Operating Temperature	-25 ~ 60 °C
Humidity range	0% RH ~ 100% RH
Interface	RS485, Monitoring BUS (MBUS), WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional), 4G/3G/2G via Smart Dongle-4G (Optional)
Security	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Standards	IEC 61727, VDE-AR-N4105, VDE 0126-1-1, BDEW, G59/3, UTE C 15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699, P.O. 12.3, RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11, MEA, Resolution No.7, NRS 097-2-1, AS/NZS 4777.2, DEWA
Color	White
Dimensions (W, D, H), mm	640 x 530 x 270 mm
Weight, kg	43 kg
Warranty	60 months
