P/N: 12KM2

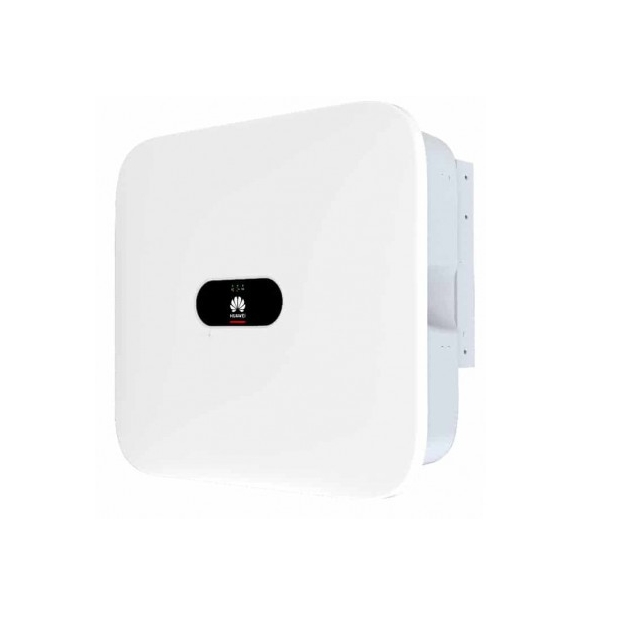

Inverter for photovoltaic panel, Huawei Inverter SUN2000-12KTL-M2 (13.2 kW)* Commercial Three Phase

120

Recommended service
HUAWEI FusionSolar, безплатен телефон: 00 80 03 38 88 888, имейл: eu_inverter_support@huawei.com, Гаранционна процедура

Characteristic

Connection, type	Three phase
Efficiency	98.5% max. efficiency
Power, W	18 000 Wp Recommended max. PV power
Input voltage, V	Max. input voltage: 1080 V, Rated input voltage: 600 V, Operating voltage range: 160 V ~ 950 V, Max. input number per MPP tracker: 2, Number of MPP trackers: 2
Output power, W	12 000 W Rated output power
Output power, VA	13 200 VA Max. apparent power
Output Voltage, V	Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W + N + PE
Frequency, Hz	Rated AC grid frequency: 50 Hz / 60 Hz
Output current, A	Max. output current: 20 A
Protections	IP65, Anti-islanding protection, AC over-current protection, AC short-circuit protection, AC over-voltage protection, DC reverse-polarity protection, AC/DC surge protection (TYPE II), Residual current monitoring unit, Arc fault protection
Indicators	LED indicators
Cooling type	Natural convection
Operating Temperature	-25 ~ 60 °C
Humidity range	0% RH ~ 100% RH
Interface	RS485, WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional), 4G/3G/2G via Smart Dongle-4G (Optional)
Security	EN/IEC 62109-1, EN/IEC 62109-2
Standards	G98, G99, EN 50549, CEI 0-21, CEI 0-16, VDE-AR-N-4105, VDE-AR-N-4110, AS 4777.2, C10/11, ABNT, VFR 2019, RD 1699, RD 661, PO 12.3, TOR D4, IEC61727, IEC62116, DEWA
Color	White
Dimensions (W, D, H), mm	525 x 470 x 262 mm
Weight, kg	25 kg
Warranty	120 months
