P/N: 5K-L1

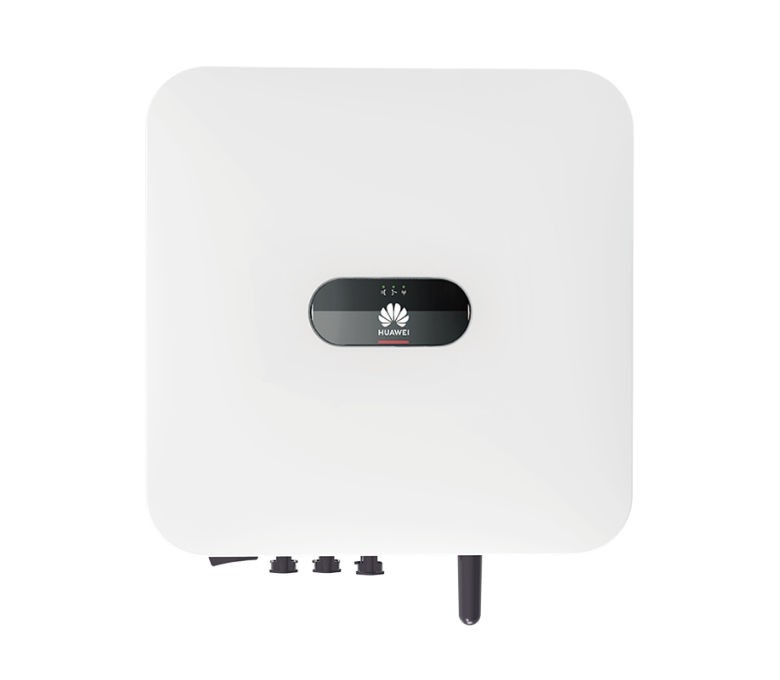

Inverter for photovoltaic panel, Huawei Inverter SUN2000-5KTL-L1 Single Phase Residential

120
HUAWEI инвертори за фотоволтаични системи >> Huawei Inverter SUN2000-5KTL-L1 Single Phase Residential Recommended service
Recommended service
HUAWEI FusionSolar, безплатен телефон: 00 80 03 38 88 888, имейл: eu_inverter_support@huawei.com, Гаранционна процедура





Characteristic

Connection, type Single phase
Efficiency 98.4% max. efficiency
Power, W 7500 Wp Recommended max. PV power
Input voltage, V Max. input voltage (PV): 600 V, Rated input voltage (PV): 360 V, MPPT Operating voltage range: 90 V ~ 560 V, Max. input number per MPP tracker: 1, Number of MPP trackers: 2
Battery HUAWEI Smart LUNA2000 ESS Battery 5kWh - 30kWh; Operating voltage range: 350 ~ 560 Vdc, Max operating current: 15 A, Max charge Power: 5000 W, Max discharge Power: 5000 W
Output power, W 5000 W Rated output power (On Grid)
Output power, VA 5500 VA Max. apparent power (On Grid), 5000 VA (Off Grid)
Output Voltage, V Rated output voltage: 220 Vac / 230 Vac / 240 Vac (On Grid), 220 V / 230 V (Off Grid)
Frequency, Hz Rated AC grid frequency (On Grid): 50 Hz / 60 Hz
Output current, A Max. output current: 25 A (On Grid), 22.7 A (Off Grid)
Protections IP65, Anti-Islanding protection, DC reverse polarity protection, Insulation monitoring, AC overcurrent protection, AC short-circuit protection, AC overvoltage protection, Over-heat protection, Arc fault protection, Battery reverse charging from grid
Indicators LED indicators
Cooling type Natural convection
Operating Temperature -25 ~ 60 °C
Humidity range 0% RH ~ 100% RH
Interface RS485, WLAN via inverter built-in WLAN module Ethernet via Smart Dongle-WLAN-FE (Optional); 4G / 3G / 2G via Smart Dongle-4G (Optional)
Security EN/IEC 62109-1, EN/IEC 62109-2
Standards Grid connection standards: G98, G99, EN 50549-1, CEI 0-21, VDE-AR-N-4105, AS 4777.2, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, IEC61727, IEC62116
Color White
Dimensions (W, D, H), mm 365 x 365 x 156 mm
Weight, kg 12 kg
Other Power factor range: 0.8 leading ... 0.8 lagging; Nighttime power consumption: < 2.5 W; DC MBUS compatible optimizer: SUN2000-450W-P
Warranty 120 months

EAN: -
