P/N: CBS110-24PP-EU

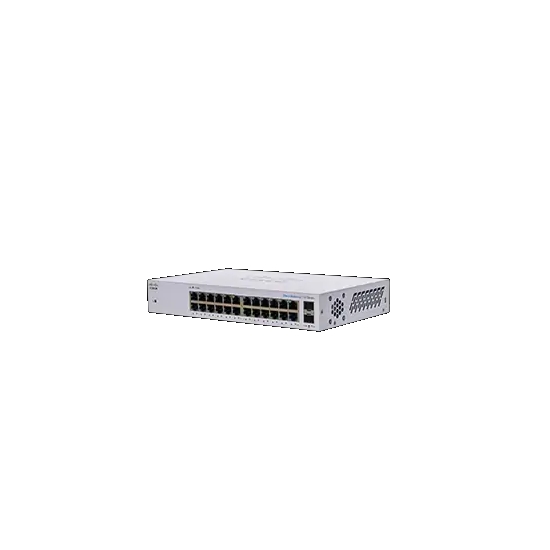

Commutator/ Switch, Cisco CBS110 Unmanaged 24-port GE, Partial PoE, 2x1G SFP Shared

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	24
Мain ports, type	10/100/1000Base-T
Power Over Ethernet (PoE)	12 ports support PoE with 100W total PoE budget
Uplink ports	2 x 1G SFP (combo with network ports)
Open (10GB) slots	-
Management	-
Stackable	-
Fans	Fanless
Power supply	Internal (universal, 110-240VAC, 50-60 Hz)
Routing	-
Memory (Flash, RAM)	Packet Buffer: 2 MB; Flash 8 MB; CPU memory: 64 MB
Routing/Switching capacity, Gbps	48 Gbps
Throughput, Mpps	35.7 Mpps
MAC addresses	8K
VLAN (number, standards)	-
QoS	802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
L2 network standards	IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
L3 network standards	-
IPv6 functionality	-
Security	Kensington lock slot
Dimensions (W, D, H), mm	440 x 203 x 44 mm
Мounting option	Desktop
Other	CPU - 400 MHz ARM; Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
Warranty	99 months
