P/N: EPDU1232M

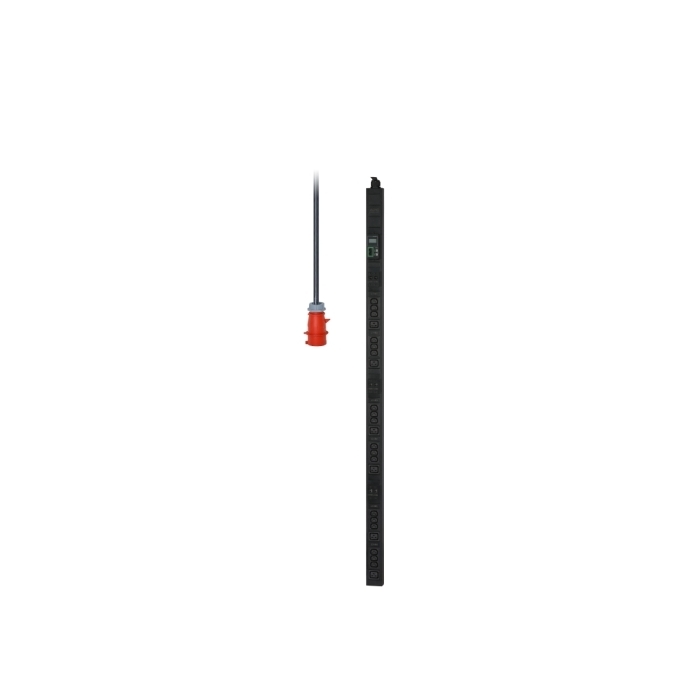

Filter, APC Easy PDU, Metered, Zero U, 22 kW, 230V, (18) C13 & (6) C19 IEC309

24
APC непрекъсваеми ТЗИ >> APC Easy PDU Recommended service
Recommended service
ЛМ Сервиз, тел: 02 9602360, факс: 02 9602369, гр. София, бул. Капитан Димитър Списаревски 3, имейл: office@lan-service.bg, сайт: http://www.lan-service.bg/





Characteristic

Input voltage, V 400V in / 230V out
Input frequency, Hz 50/60 Hz
Input current, A 32 A
Max. power, kW 22 kW / 22 000 VA
Number of phases 3 in, 1 out
Input connection IEC 309 32A 3P + N + PE
Number of outputs 24
Inference type (18) IEC 320 C13, (6) IEC 320 C19, 1 Network port , 1 Temperature/Humidity port
Cable length, m 2 m
Security 6x 16A 1-pole hydraulic-magnetic circuit breakers
Installation Toolless Mounting Kit, Vertical mounting brackets
Form factor Zero U
Standards CE, followed by standard EN55035, CEN55032, CEN55024, TUV, followed by standard EN/IEC62368-1, RoHS, REACH
Dimensions (W, D, H), mm 44.4 x 62 x 1506 mm
Weight, g 4640 g
Color Black
Warranty 24 months

EAN: -
