P/N: DIS-200G-12PS

Commutator/ Switch, D-Link 12 Port L2 Industrial Smart Managed Switch with 10 x 1GBaseT(X) ports (8 PoE 240W) & 2 x SFP ports

D-LINK мрежови продукти >> D-Link 12 Port L2 Industrial Smart Managed Switch with 10 x 1GBaseT(X) ports (8 PoE 240W) & 2 x SFP ports Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	10
Мain ports, type	8 x 10/100/1000BASE-T PoE ports + 2 x 10/100/1000BASE-T ports
Power Over Ethernet (PoE)	Standards: IEEE 802.3af/at; Ports 1 to 8; PoE Power Budget: Max. 240 W
Uplink ports	2xSFP
Open (10GB) slots	No
Management	Web-based UI (supports IPv4/IPv6), Client-based D-Link Network Assistant (DNA); CLISNTP; SNMP v1/v2c/v3; SNMP trap; Telnet server; System Log; DHCP client; TFTP client; LLDP; D-Link Discovery Protocol (DDP); Dual images; Dual configurations
Stackable	-
Fans	Fanless

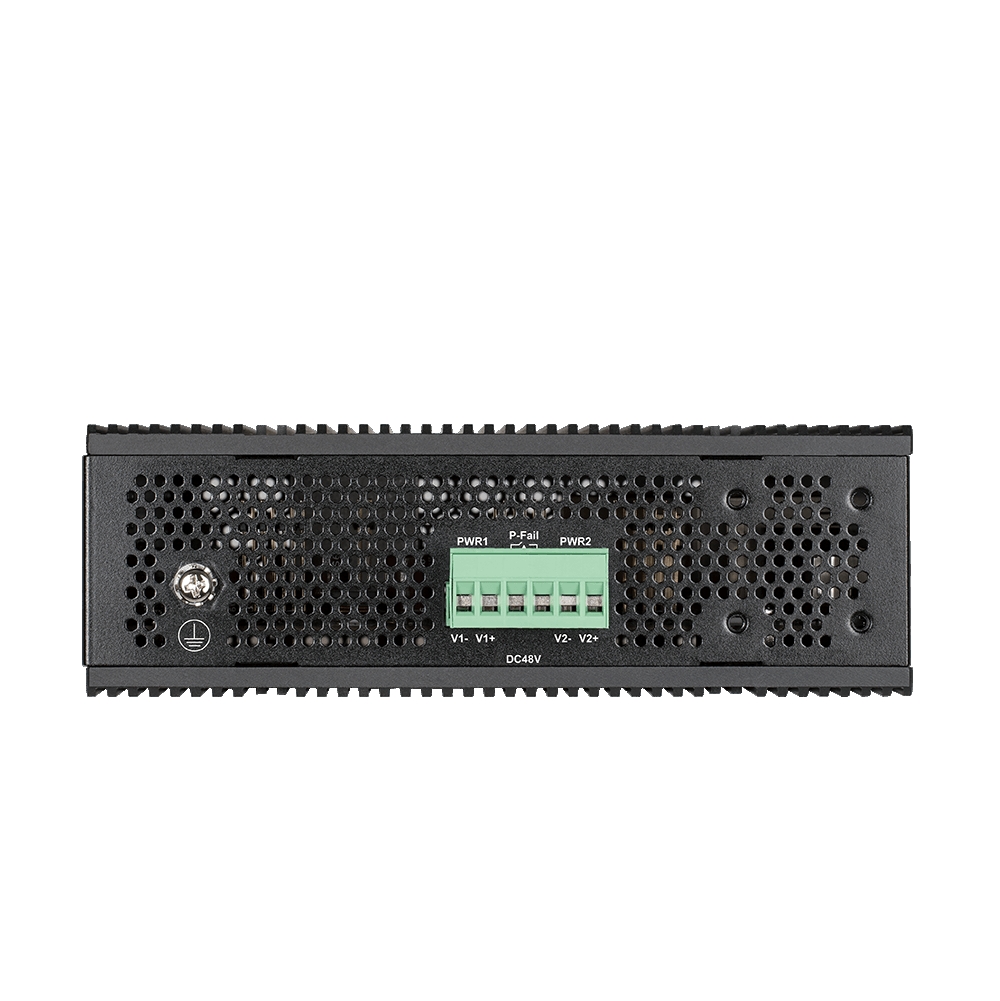

Power supply	Dual power input for redundant power supplies: 48 to 54 V DC terminal block dual input, 54 V DC 4-pin DIN single power input; Maximum: 260 W (PoE on); Maximum: 10.8 W (PoE off); Standby: 7.02 W
Routing	Layer 2 Only
Memory (Flash, RAM)	-
Routing/Switching capacity, Gbps	24 Gbps
Throughput, Mpps	17.85 Mpps
MAC addresses	Up to 8K entries
VLAN (number, standards)	IEEE 802.1Q tagged VLAN; Port-based VLAN; Auto-Surveillance VLAN 2.0 (ASV 2.0); Voice VLAN; Asymmetric VLAN; VLAN group (Supports 128 static VLAN groups, Max. 4094 VIDs); GVRP
QoS	IEEE 802.1p (4 queues per port, Queue handling, Strict Priority Queue (SPQ), Weighted Round Robin (WRR), Port-based bandwidth control (rate limiting), Ingress: 100 kbps)
L2 network standards	IEEE 802.3x Flow Control, HDL Blocking Prevention, IGMP v1/v2/v3; MLD Snooping; IEEE 802.3ad; G.8032 ERPSv1 single ring; LLDP; IEEE 802.1D STP; IEEE 802.1w RSTP; IEEE 802.1s MSTP; Port mirroring; RADIUS
L3 network standards	-
IPv6 functionality	-
Security	UL60950-1; D-Link Safeguard, Traffic segmentation; Broadcast/Multicast/Unknown Unicast Storm Control; DoS attack prevention; SSL; SSH; Port security
Dimensions (W, D, H), mm	210 x 171.2 x 53
Мounting option	DIN rail/wall mountable
Other	Auto-MDI/MDIX adjustment for all twisted pair ports
Warranty	60 months
