P/N: #Q0016010034434

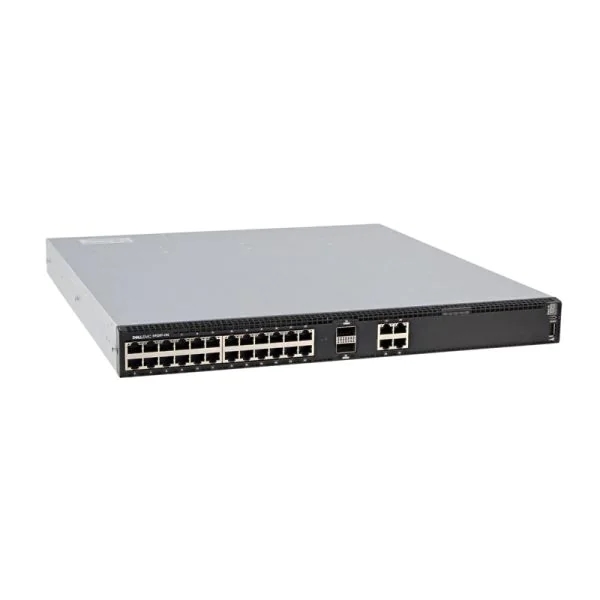

Commutator/ Switch, Dell Switch S4128T-ON, 1U, 28 x 10Gbase-T, 2 x QSFP28, IO to PSU, 2 PSU, Dell Networking, Cable,40GbE (QSFP+) to 4 x 10GbE SFP+ Passive Copper Breakout Cable, 3 Meters, OS10 Enterprise

Recommended service
Dell Technical Support: тел. 00800 1104478; ИНДЕКС - БЪЛГАРИЯ ООД, тел. 3355 (DELL), (02) 903 4400, (02) 875 70 29, адрес: София 1784, Младост 1, бл. 54

Characteristic

Switch, type	Fixed Port
Total number of ports	30
Мain ports, type	28x 10GBase-T
Power Over Ethernet (PoE)	No
Uplink ports	2xQSFP28
Open (10GB) slots	No
Management	SNMPv1/2; SSHv2; FTP, TFTP, SCP; Syslog; Port Mirroring; RADIUS; 802.1X; Support Assist (Phone Home); Netconf APIs; XML Schema; CLI Commit (Scratchpad); sFlow
Stackable	No
Fans	4x Fan module
Power supply	Redundant, hot-swappable power supplies
Routing	Layer 3 Advanced
Memory (Flash, RAM)	RAM: 4 GB
Routing/Switching capacity, Gbps	960 Gbps
Throughput, Mpps	720 Mpps
MAC addresses	272K (in Scaled L2 mode)
VLAN (number, standards)	802.1Q VLAN Tagging, GVRP; 4K Layer 2 VLANs; 500 Layer3 VLANs
QoS	Access Control Lists, Prefix List, Route-Map, Rate Shaping (Egress), Rate Policing (Ingress), Scheduling Algorithms (Round Robin, Weighted Round Robin, Deficit Round Robin, Strict Priority), Weighted Random Early Detect
L2 network standards	IEEE compliance: 802.1AB, 802.1s, 802.1w, 802.3ab, 802.3ad, 802.3ae, 802.3ba, 802.3i, 802.3u, 802.3z, 802.1D, 802.1p, 802.1Q, 802.1Qbb, 802.1Qaz, 802.1X, 802.3ac, 802.3bj, 802.3x, 802.1t
L3 network standards	OSPF
IPv6 functionality	General IPv6 protocols are supported.
Security	RADIUS, Radius and IPv6, SSHv2, Security Architecture for IPSec, IPSec Authentication Header, ESP Protocol
Dimensions (W, D, H), mm	431 x 457 x 44
Мounting option	Rackmount
Other	1 RJ45 console/management port with RS232 signaling, 1 RJ45 micro-USB-B console port, 1 RJ45 10/100/1000Base-T management Ethernet port
Warranty	12 months

EAN: -
