P/N: 90MB1FW0-M0EAY0

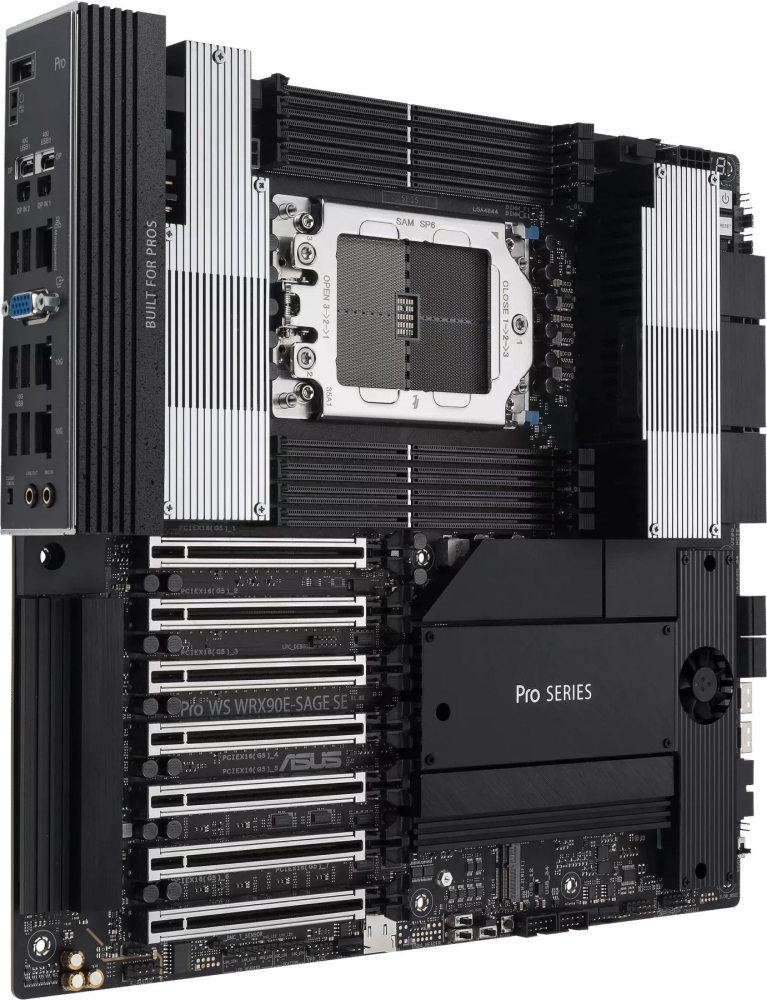

Motherboard, Asus Pro WS WRX90E SAGE SE

Characteristic

Series PRO
Processor AMD Ryzen Threadripper Pro 7000
Chipset AMD WRX90
BIOS 256 Mb Flash ROM, UEFI AMI BIOS(text-based)
Мemory DDR5
Number of slots 8 DIMM Slots
Audio Realtek ALC1220P Surround Sound High Definition Audio CODEC, Premium audio capacitors, Dedicated audio PCB layers, Unique de-pop circuit
Wireless network -
Connectors 24-pin Main Power connectors, 2 8-pin +12V Power connectors, 2 8-pin PCIe to CPU power connectors, 2 8-pin PCIe Power connector
Slots 6 PCIe 5.0 x16 slots, PCIe 5.0 x16 slot (x8 mode)
M.2 slot 4 M.2 slots (Key M)
Interface 2 USB 40Gbps, 6 USB 10Gbps, USB 2.0, VGA, 2 mini DisplayPort IN, Intel dual 10Gb Ethernet, Realtek 1Gb Ethernet, 2 Audio jacks
Software ASUS Exclusive Software
Operating system Windows 11, Windows 10 64-bit
Form factor EEB
Special features ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Bespoke Motherboard Design & Business Focused Features, BMC Related
Warranty 36 months

EAN: 4711387441145
