P/N: C9300-48S-E

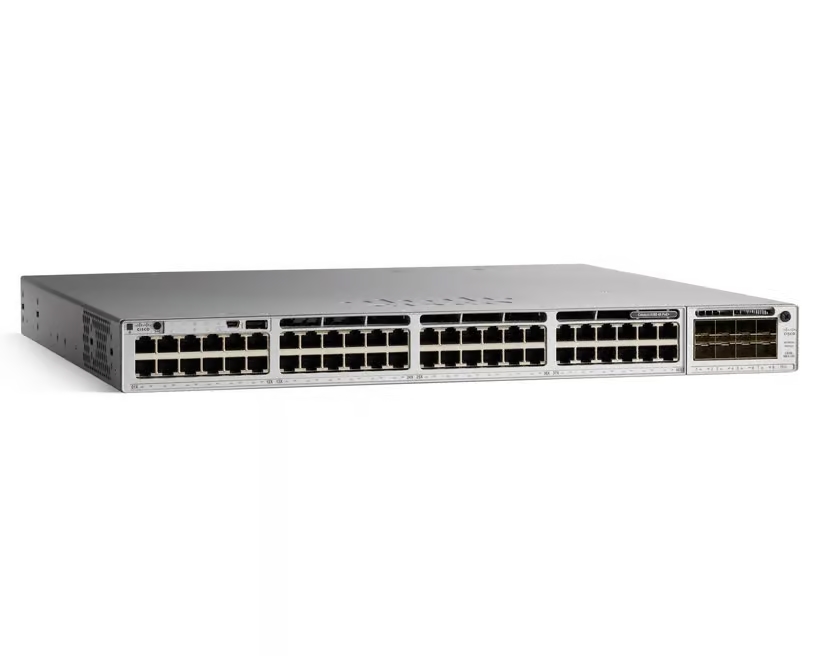

Commutator/ Switch, Cisco Catalyst 9300 48-port 1G SFP with modular uplinks, Network Essentials

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Modular
Total number of ports	48
Мain ports, type	48x 1G SFP
Power Over Ethernet (PoE)	No
Uplink ports	Modular Uplinks
Open (10GB) slots	-
Management	Cloud management and monitoring; WebUI
Stackable	Designed for stacking switches as a single virtual switch, enabling customers to have a single management plane and control plane for up to 448 access ports.
Fans	Three field-replaceable fans and support (N+1) redundancy.
Power supply	Redundant; Default AC power supply: 715W AC
Routing	High-Performance IP routing; Total routed ports: 448
Memory (Flash, RAM)	DRAM: 8 GB; Flash: 16 GB; Packet buffer per SKU: 16 MB buffer for 24-or 48-port Gigabit Ethernet models
Routing/Switching capacity, Gbps	256 Gbps, Switching capacity with stacking: 736 Gbps
Throughput, Mpps	190.47 Mpps; Forwarding rate with stacking: 547.62 Mpps
MAC addresses	32 000
VLAN (number, standards)	VLAN IDs: 4094; IEEE 802.1Q VLAN
QoS	QoS scale entries: 5 120; Superior QoS (802.1p Class of Service (CoS), DSCP, SRR, CIR)
L2 network standards	IEEE 802.3 ab/z/bz/an/x
L3 network standards	IEEE 802.1D, RMON I and II standards, SNMPv1, v2c, and v3
IPv6 functionality	IPv6 routing entries: 16 000
Security	ETA, SUDI, AES-256 MACsec encryption, IPsec encryption, Trustworthy solutions built with Cisco Trust Anchor Technologies; Cloud Security: Umbrella DNS Integration, ASAc
Dimensions (W, D, H), mm	444 x 488 x 43 mm
Мounting option	Rackmount
Other	Network Essentials
Warranty	99 months
