P/N: DXS-3410-32XY

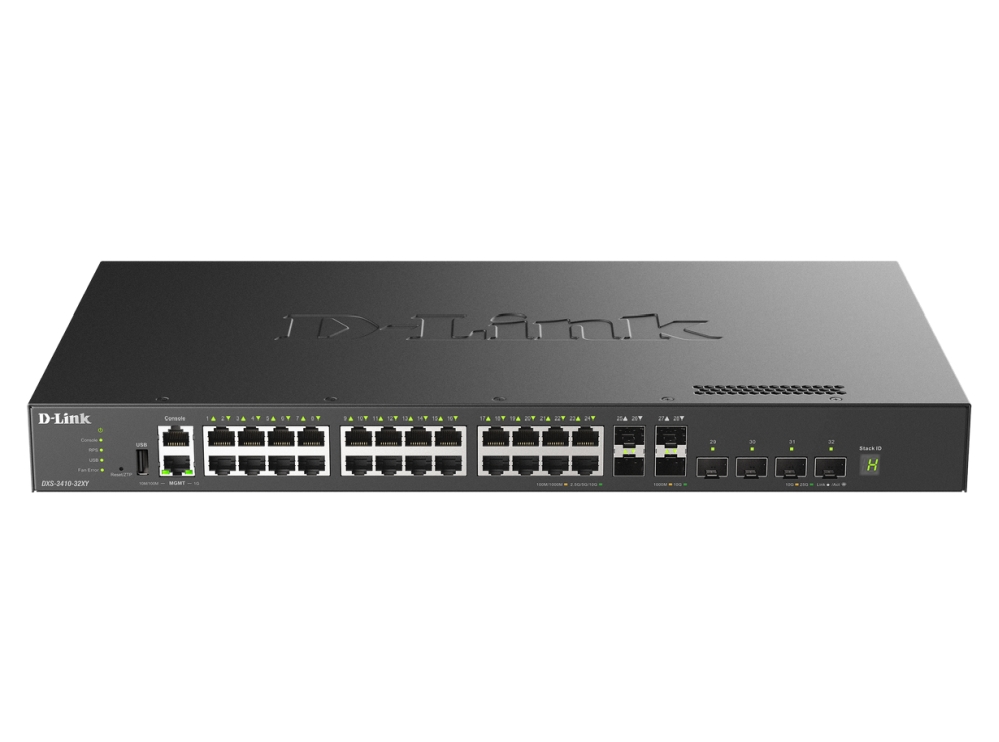

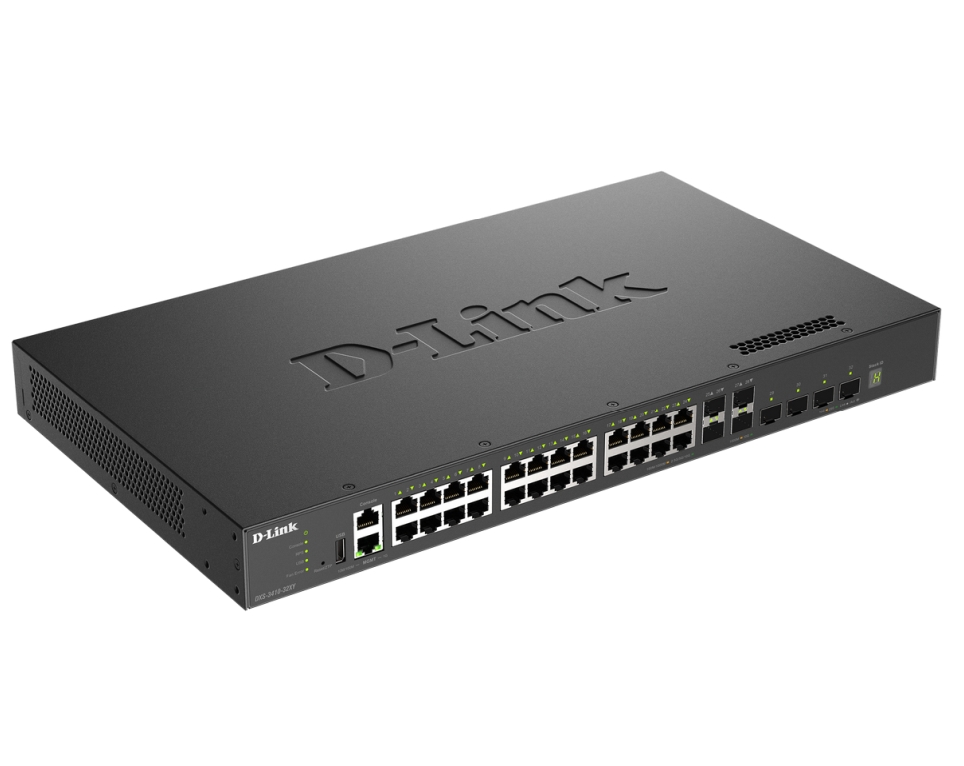

Commutator/ Switch, D-Link 10G Layer 3 Stackable Managed Switches

D-LINK мрежови продукти >> D-Link 10G Layer 3 Stackable Managed Switches Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	32
Мain ports, type	24x10GBase-T
Power Over Ethernet (PoE)	No
Uplink ports	4x10GE SFP, 4x10G/25G SFP28
Open (10GB) slots	No
Management	Web-based GUI, CLI, Telnet Server/Client, TFTP Client, DNS Client, SNMP (Supports v1/v2c/v3), SNMP Traps, sFlow, Multiple images/ Multiple Configurations, RMON v1/v2, LLDP/LLDP-MED, Flash File System, DDP, NTPv3/v4, Password recovery/encryption, SMTP
Stackable	4 Stacking Ports; Physical stacking - Up to 9 units per stack, Up to 200 Gbps stacking bandwidth, Ring/chain topology support; Virtual stacking - D-Link Single IP Management (SIM), Up to 32 units per virtual stack
Fans	3x Smart fans
Power supply	Optional Redundant Power Supply: DPS-500A, DPS-500DC
Routing	Layer 3 Advanced
Memory (Flash, RAM)	-
Routing/Switching capacity, Gbps	760 Gbps
Throughput, Mpps	565.44 Mpps
MAC addresses	32000 MAC address table size
VLAN (number, standards)	802.1Q, 802.1v, Double VLAN (Q-in-Q), Port/MAC-based VLAN, Auto Surveillance/Voice VLAN, VLAN translation, Multicast/Asymmetric/Private/Super VLAN, VLAN Trunking, GVRP - Max. 4K dynamic VLAN groups, VLAN Group: Max. 4K VLAN groups, Max. 1~4094 VIDs
QoS	802.1p Quality of Service (QoS), 8 queues per port, Queue handling (Strict, Weighted Round Robin (WRR), Strict + WRR, Weighted Deficit Round Robin (WDRR)), Bandwidth Control, Congestion Control, Policy Map, Three Color Marker
L2 network standards	IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x, IEEE 802.1X, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Qbb, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3ad
L3 network standards	Static Route, RIPv1/v2/ng, OSPFv2/v3
IPv6 functionality	IPv6 traffic class, IPv6 flow label, IPv6 Snooping, IPv6 Route Advertisement (RA) Guard, IPv6 ND Inspection
Security	Port Security, Broadcast/Multicast/Unicast Storm Control, D-Link Safeguard Engine, DHCP Server Screening, Dynamic ARP Inspection, IP Source Guard, DHCP Snooping, DHCPv6 Guard, BPDU Attack Protection, DOS Attack Prevention, SSH, SSL, Traffic Segmentation
Dimensions (W, D, H), mm	441 x 250 x 44 mm
Мounting option	Rackmount
Other	Console Port: RJ-45 port for out-of-band CLI management, Management Port: 10/100/1000BASE-T RJ-45 port for out-of-band IP management, 1x USB 2.0 Type A port
Warranty	99 months
