MOST POPULAR PRODUCTS

P/N: SMARTGUARD-63A-T0

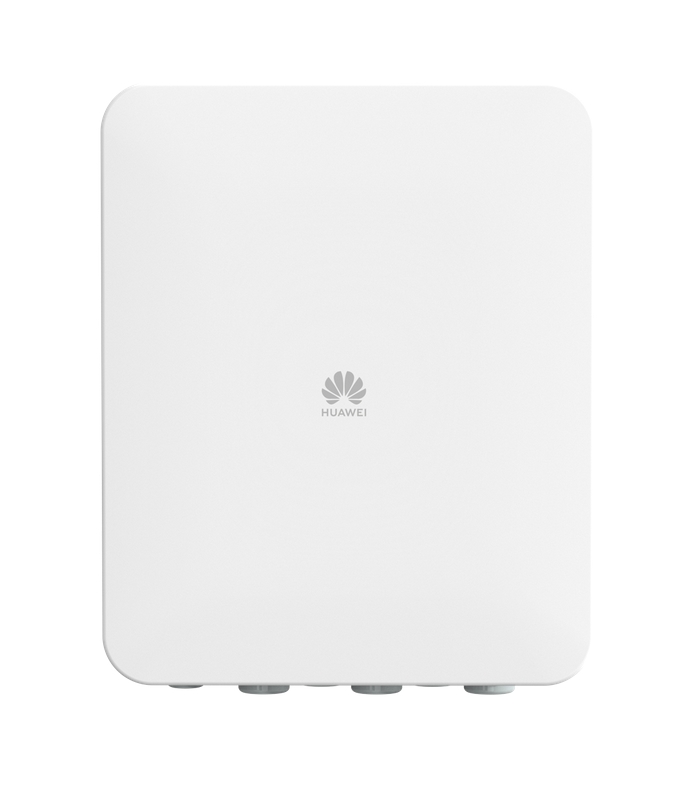

Accessory, Huawei SmartGuard-63A-T0

120
HUAWEI инвертори за фотоволтаични системи >> Huawei SmartGuard-63A-T0 Recommended service
Recommended service
HUAWEI FusionSolar, безплатен телефон: 00 80 03 38 88 888, имейл: eu_inverter_support@huawei.com, Гаранционна процедура





Characteristic

Features 1 Three-phase whole home backup supported
Features 2 <=20ms Ultra-fast switchover to power backup mode
Features 3 Provide bypass mode when a fault occurs
Features 4 Ready for DG, intelligent loads management with EMMA
Features 5 AC Voltage (Nominal): 380/400/415V, 220/230/240V, L1/L2/L3/N+PE; Max. current (from/to Grid): 63A; Max. current (from/to Inverter): 60A; Max. current (to Backup Load): 63A; Max. current (to Non-BackupLoad): 63A
Features 6 Cooling: Natural Convection; Relative humidity range: 5%-95% RH (non condensing); Max. operating altitude: 4000m (derated over 2000m); Degree of protection: IP55
Features 7 Dimensions (WxHxD): 600 x 170 x 490 mm
Features 8 Weight: 17 kg
Warranty 120 months

EAN: -
