P/N: DS-3E0106HP-E

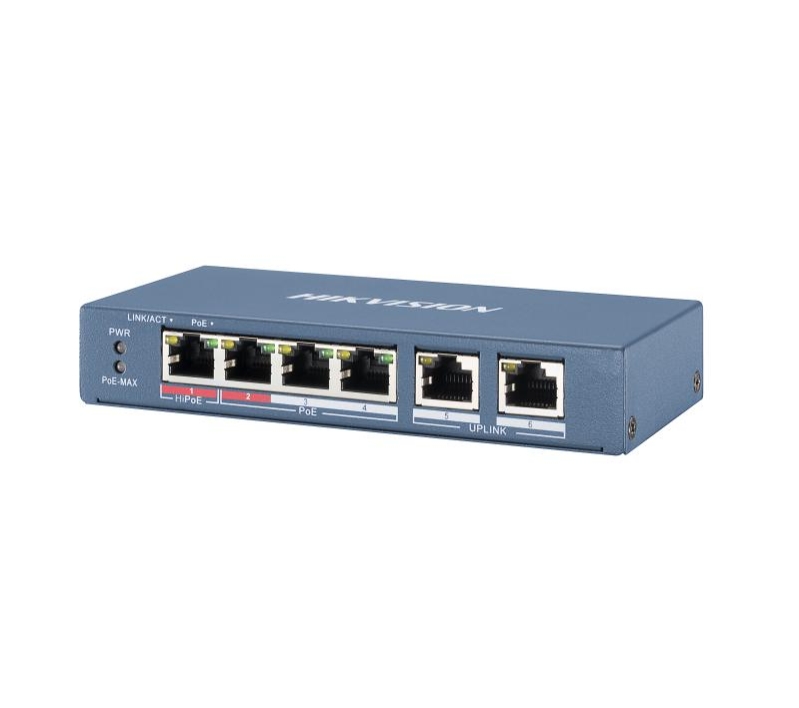

Commutator/ Switch, HikVision 6 Port Fast Ethernet Unmanaged POE Switch, 4x 10/100 Mbps PoE port, 2x 10/100 Mbps RJ45 port, Power Budget 60W, Up to 300 m Long Range PoE Transmission

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	6
Мain ports, type	4x10/100Base-TX
Power Over Ethernet (PoE)	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt PoE Standard; Hi-PoE: Port 1; PoE: Ports 2 to 4; Max. Port Power: Port 1 - 60 W, Ports 2 to 4 - 30 W; PoE Power Budget: 60 W
Uplink ports	2x10/100Base-TX
Open (10GB) slots	No
Management	No
Stackable	No
Fans	Fanless design
Power supply	48 V DC, 1.35 A; Max. Power Consumption: 65 W
Routing	Layer 2 Only
Memory (Flash, RAM)	-
Routing/Switching capacity, Gbps	1.20 Gbps
Throughput, Mpps	0.89 Mpps
MAC addresses	2000 MAC address table size
VLAN (number, standards)	-
QoS	-
L2 network standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
L3 network standards	-
IPv6 functionality	-
Security	6 kV Surge Protection to Improve Reliability in Harsh Environment
Dimensions (W, D, H), mm	145 x 25.6 x 68.5 mm
Мounting option	Desktop/Wall mount
Warranty	24 months
