P/N: 90-MXBPP0-A0UAYZ

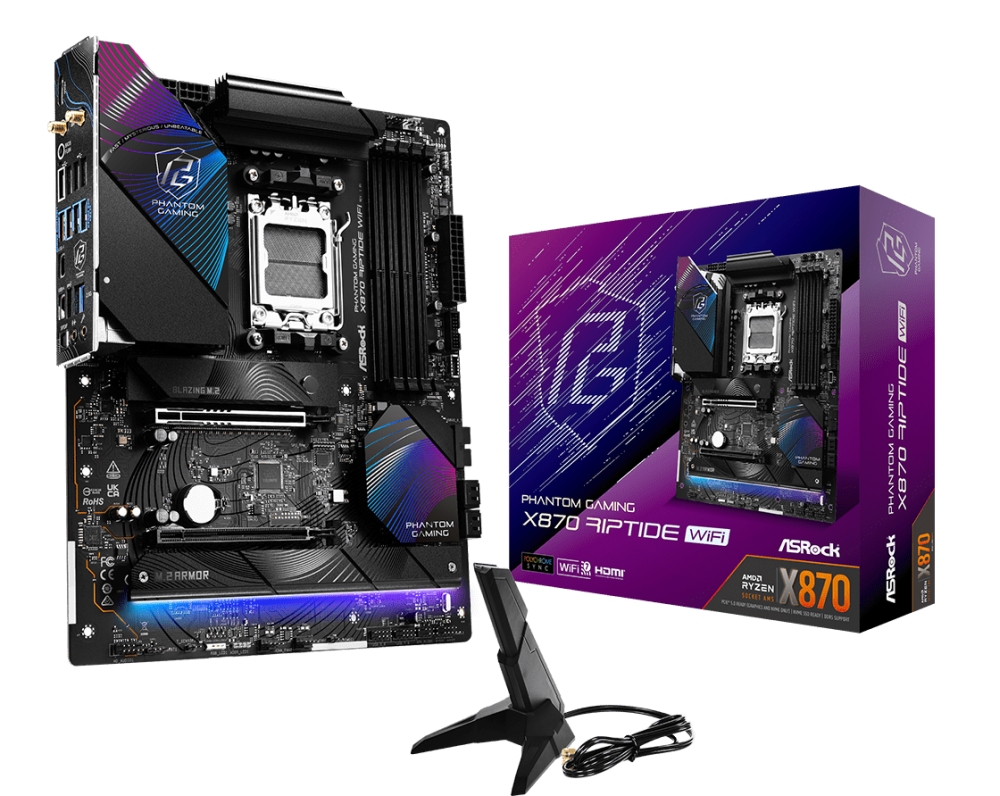

Motherboard, Asrock X870 Phantom Gaming Riptide Wi-Fi

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Series	Phantom Gaming
Processor	AMD AM5 Ryzen
Chipset	AMD X870
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Мemory	DDR5
Number of slots	4 DIMM Slots, Max. capacity of system memory: 256GB
Audio	7.1 CH HD Audio with Content Protection, Nahimic Audio
Wireless network	802.11be 2x2 Wi-Fi 7 Module
Connectors	2 x CPU Fan Connectors (4-pin), 3 x Chassis Fan Connectors (4-pin), AIO Pump Fan Connector (4-pin), 24 pin ATX Power Connector, 2 x 8 pin 12V Power Connectors, Front Panel Audio Connector
Slots	CPU: PCIe 5.0 x16 Slot (PCIE1), PCIe 4.0 x16 Slot (PCIE2); Chipset: Vertical M.2 Socket (Key E)
M.2 slot	Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

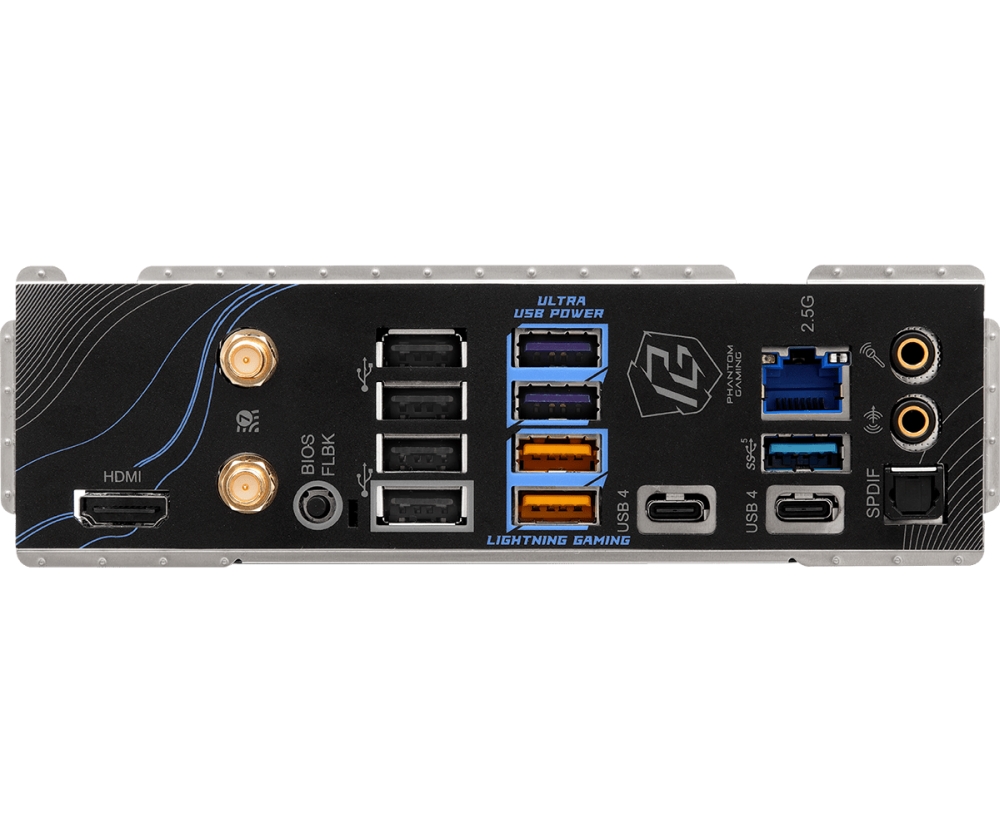

Interface	2 x Antenna Ports, HDMI Port, 2 x USB4 Type-C Ports, 3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 3.2 Gen2 Type-A Ports, 4 x USB 2.0 Ports, RJ-45 LAN Port, Line Out Jack (Gold Audio Jack), Microphone Input Jack (Gold Audio Jack)
Software	ASRock Motherboard Utility (Phantom Gaming Tuning), Killer Control Center, ASRock Polychrome SYNC
Operating system	Microsoft Windows 10 64-bit / 11 64-bit
Form factor	ATX Form Factor: 30.5 x 24.4 cm
Special features	Superb Productivity, Rock-Solid Durability, EZ Update, EZ Troubleshooter
Warranty	36 months
