P/N: DS-2CE76H8T-ITMF

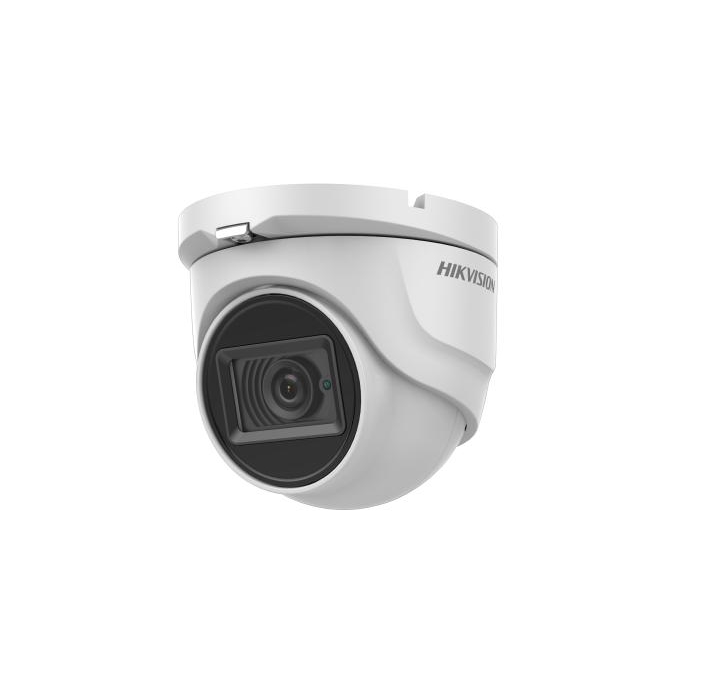

Camera, HikVision HD-TVI Ultra Low Light Fixed Turret Camera 5 MP, 2.8mm, EXIR 2.0: advanced IR up to 30 m, WDR, 3D DNR, IP67, 12Vdc/5.8W, 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Type	Analog
Sensor, type	CMOS
Resolution, MP	5 MP
Focal length	2.8 mm (98°)
Minimum illumination, lx	0.003 Lux@(F1.6, AGC ON), 0 Lux with IR
IR lighting	EXIR 2.0: advanced IR up to 30 m
Мax resolution, pixels	2560x1944
Compression formats	-
Transmission frames speed	TVI: 2 MP@25 fps, 2 MP@30 fps, 4 MP@25 fps, 4 MP@30 fps, 5 MP@20 fps; AHD: 4 MP@25 fps, 4 MP@30 fps, 5 MP@20 fps; CVI: 4 MP@25 fps, 4 MP@30 fps; CVBS: PAL, NTSC
Supported network protocols	-
Network interface	-
Wireless network	-
Power Over Ethernet (PoE)	-
Input/Output ports	4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
Sound	-
Power supply	12V DC/5.8W
Card slot	-
Night surveillance	IR Cut Filter
Outdoor mounting	yes
Waterproof	IP67
Vandal-Proof	-
Operating Temperature	-40 °C to 60 °C
Humidity range	90% or less
Dimensions (W, D, H), mm	90 x 79.37 mm
Additional functions	Wide Dynamic Range (WDR): =>130 dB; Signal System: PAL/NTSC; Noise Reduction: 3D DNR
Other	Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Warranty	24 months
