P/N: JL811A

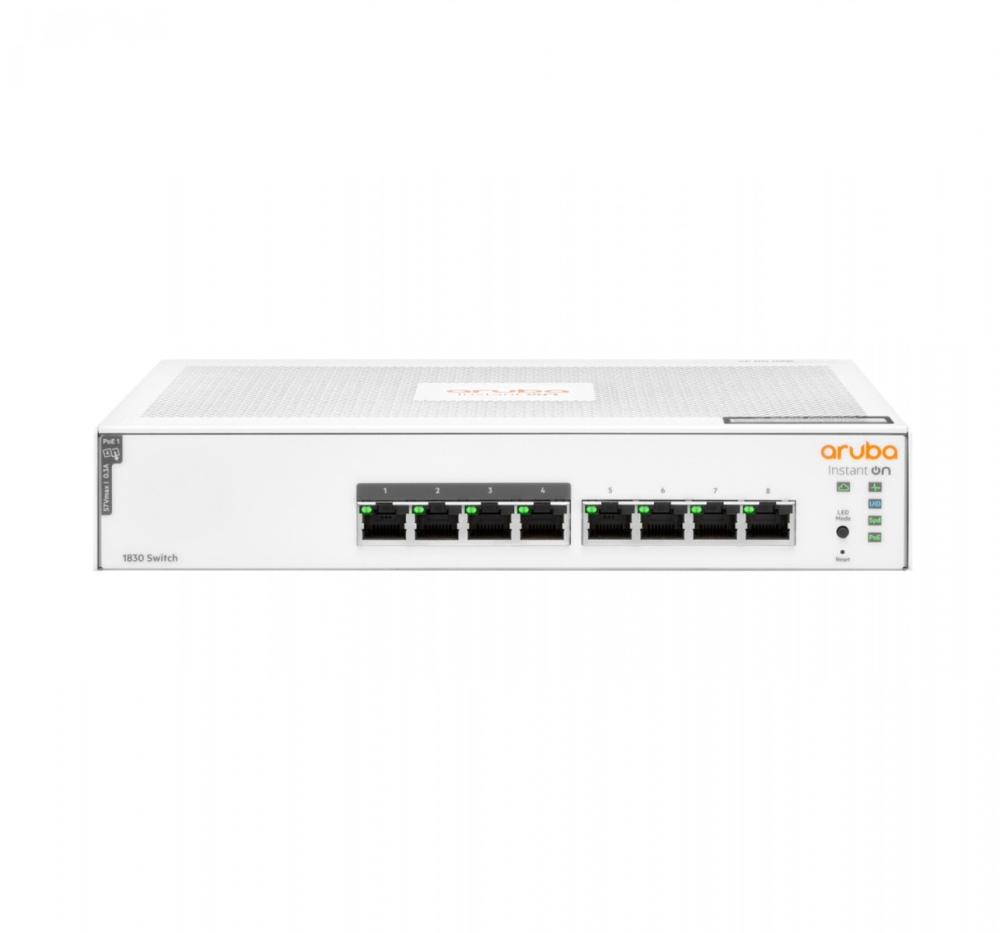

Commutator/ Switch, Aruba IOn 1830 8G 65W Sw

HP мрежови продукти >> Aruba IOn 1830 8G 65W Sw Recommended service
Recommended service
CNsys PLC, тел. 0700 16 036, имейл: support@cnsys.bg; Lirex Bg, тел. 0800 20 199, имейл: support@lirex.com; Paraflow Communications Ltd., тел. 0700 10 887, имейл: service@paraflow.bg; Stemo Ltd, тел. 07001 79 78, имейл: support@stemo.bg





Characteristic

Switch, type Fixed Port
Total number of ports 8
Мain ports, type 8x 10/100/1000BASE-T Ports
Power Over Ethernet (PoE) IEEE 802.3at Class 4 PoE (ports 1-4), 65 W Class 4 PoE
Uplink ports -
Open (10GB) slots -
Management Cloud-based management, Simple local web GUI management, Secure web-management sessions with HTTPS, Firmware update, Configuration File Management, DHCP client mode, SNTP, Locator LED, Comprehensive LED display, Management VLAN ID
Stackable -
Fans Fanless
Power supply Internal power supply, 100-127 VAC / 200-240 VAC
Routing -
Memory (Flash, RAM) 512 MB SDRAM, 256 MB flash, Packet buffer: 1.5 MB
Routing/Switching capacity, Gbps 16 Gbps
Throughput, Mpps 11.9 Mpps
MAC addresses 8 000
VLAN (number, standards) IEEE 802.1Q VLANs, Offers some of the benefits of both bridging and routing. VLANs partition the network into logical segments, which provide better administration, security, and multicast traffic management.
QoS Provides time-sensitive packets (like VoIP and video) with priority over other traffic based on DSCP or IEEE 802.1p classification; packets are mapped to four hardware queues for more effective throughput
L2 network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.3az, IEEE 802.1AB, IEEE 802.3ac
L3 network standards -
IPv6 functionality -
Security TPM-based security, Automatic denial-of-service protection, Global Storm Control
Dimensions (W, D, H), mm 245.1 x 195.1 x 43.9 mm
Мounting option Desktop/Rackmount
Warranty 99 months

EAN: -
