P/N: 02353GLC-002

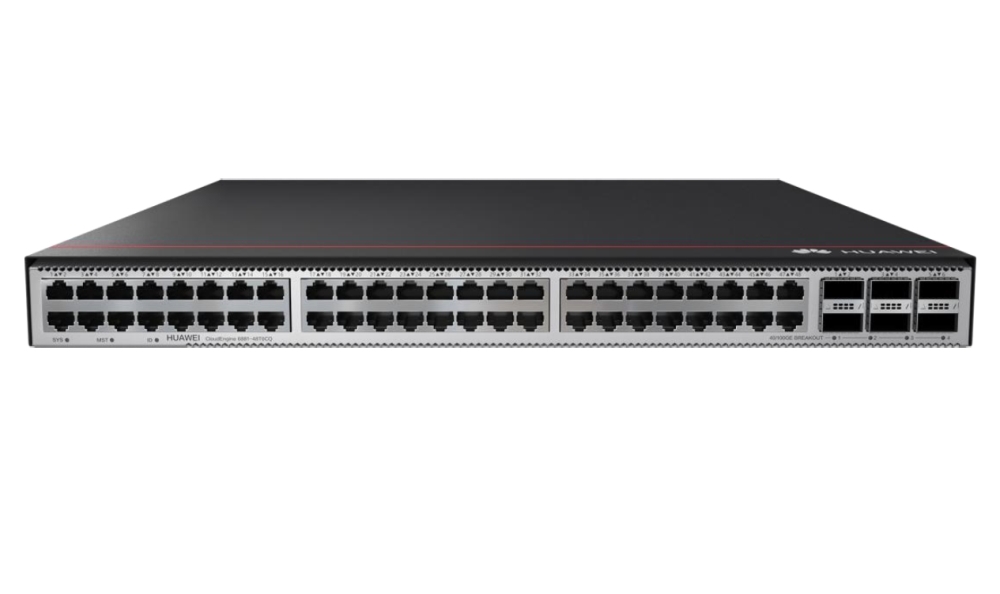

Commutator/ Switch, Huawei CE6881-48T6CQ-B switch (4810GE RJ45, 6100GE QSFP28, 2AC power modules, 4fan modules, port-side intake)

HUAWEI Enterprise Networking >> Huawei CE6881-48T6CQ-B switch (48*10GE RJ45 Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	54
Мain ports, type	48x10GBase-T
Power Over Ethernet (PoE)	No
Uplink ports	6x40G/100G QSFP28
Open (10GB) slots	No
Management	Console, Telnet, and SSH terminals; Network management protocols, such as SNMPv1/v2/v3; File upload and download through FTP and TFTP; BootROM upgrade and remote upgrade; Hot patches; User operation logs; Zero Touch Provisioning (ZTP)
Stackable	Intelligent stack (iStack)
Fans	4 fan trays
Power supply	2 AC power modules, Maximum power: 452W
Routing	Layer 3 Advanced
Memory (Flash, RAM)	NAND flash: 4 GB, NOR flash: 64 MB, RAM: 4GB
Routing/Switching capacity, Gbps	2.16 Tbps
Throughput, Mpps	940 Mpps
MAC addresses	256000 MAC address table size
VLAN (number, standards)	Adding access, trunk, and hybrid interfaces to VLANs; Default VLAN; QinQ
QoS	Traffic classification based on Layer 2, Layer 3, Layer 4, and priority information; ACL, CAR, re-marking, and scheduling; Queue scheduling modes such as PQ,DRR and PQ+DRR; Congestion avoidance mechanisms, including WRED and tail drop; Traffic shaping
L3 network standards	IPv4 routing protocols, such as RIP, OSPF, IS-IS, and BGP; IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+; IP packet fragmentation and reassembly
IPv6 functionality	VXLAN over IPv6; IPv6 VXLAN over IPv4; IPv6 Neighbor Discovery (ND); Path MTU Discovery (PMTU); TCP6, IPv6 ping, IPv6 tracert, IPv6 socket , UDP6, and Raw IP6
Security	Defense against DoS address attacks, ARP storms, and ICMP attacks; Port isolation, port security, and sticky MAC; Authentication methods, including AAA, RADIUS, and HWTACACS; Binding of the IP address, MAC address, port number, and VLAN ID; RMON
Dimensions (W, D, H), mm	442 x 420 x 44 mm
Мounting option	Rackmount
Other	1x GE management port, 1x RJ45 console port, 1x USB port
Warranty	12 months
