P/N: 02354VCD

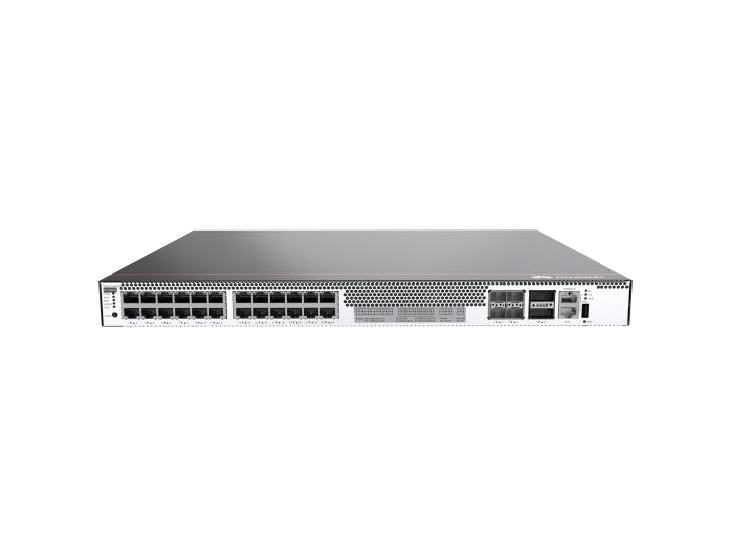

Комутатор, Huawei S5731-S8UM16UN2Q (8*100M/1/2.5/5/10G, 16*100M/1/2.5G ports, 2*40GE QSFP ports or 12*100M/1/2.5/5/10G, 12*100M/1/2.5G ports, 4*10GE SFP+ ports, PoE++, without power module)

12
Huawei S5731-S8UM16UN2Q (8*100M/1/2.5/5/10G, 16*100M/1/2.5G ports, 2*40GE QSFP ports or 12*100M/1/2.5/5/10G, 12*100M/1/2.5G ports, 4*10GE SFP+ ports, PoE++, without power module)
HUAWEI Enterprise Networking >> Huawei S5731-S8UM16UN2Q (8*100M/1/2.5/5/10G Препоръчителен сервиз
Препоръчителен сервиз
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура





Характеристики

Суич, тип Fixed Port
Общ брой портове 26/28
Основни портове, тип 8x10GBase-T + 16x10/100/1000/2500Base-T
Power Over Ethernet (PoE) PoE++
Uplink портове 2x40GE SFP or 4x10GE SFP
Свободни (10GB) слотове No
Управление SNMP v1/v2c/v3; RMON; Smart Application Control (SAC); Web-based NMS; System logs and alarms of different levels; GVRP; MUX VLAN; NetStream; Intelligent O&M
Stackable Intelligent Stack (iStack), with up to 9 member switches in a stack
Fans Air-cooled heat dissipation and intelligent fan speed adjustment
Захранване 3 pluggable power modules, supporting N+1 redundancy; Maximum power consumption: 171W (without PD), 2571W (with PD, PD power consumption of 2268W)
Routing Layer 3 Advanced
Капацитет за маршрутизиране/превключване, Gbps 400 Gbps
Пропускателна способност, Mpps 125 Mpps
MAC адреси 64000 MAC address table size
VLAN (брой, стандарти) 4094 VLANs; Guest VLAN and voice VLAN; GVRP; MUX VLAN; VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports; VLAN mapping
QoS Rate limiting in the inbound and outbound directions of a port; Packet redirection; 8 queues per port; DRR, SP and DRR+SP queue scheduling algorithms; WRED; Re-marking of the 802.1p and DSCP fields of packets;Queue-based rate limiting and shaping on ports
L2 мрежови стандарти IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag
L3 мрежови стандарти Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy
IPv6 functionality Up to 8K ND entries; PMTU; IPv6 Ping, IPv6 Tracert, and IPv6 Telnet; ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types; MLDv1/v2; IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN
Сигурност DoS attack defense, ARP attack defense, and ICMP attack defense; Port isolation, port security, and sticky MAC; IEEE 802.1x authentication and limit on the number of users on a port; AAA authentication, RADIUS authentication, and HWTACACS authentication
Размери (Ш, Д, В), mm 442 x 420 x 44 mm
Опция за монтаж Rackmount
Гаранция 12 месеца

EAN: 6901443341726
