P/N: 98011808-001

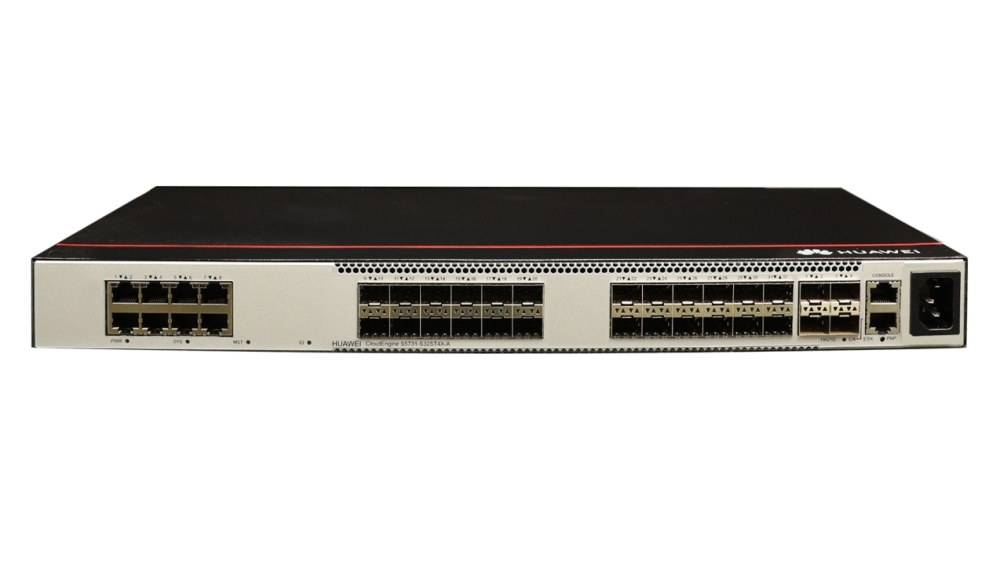

Commutator/ Switch, Huawei S5731-S32ST4X-A (810/100/1000BASE-T ports, 24GE SFP ports, 4*10GE SFP+ ports, AC power, front access)

HUAWEI Enterprise Networking >> Huawei S5731-S32ST4X-A (8*10/100/1000BASE-T ports Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	36
Мain ports, type	8x10/100/1000Base-T + 24xSFP
Power Over Ethernet (PoE)	No
Uplink ports	4x10GE SFP
Open (10GB) slots	No
Management	SNMP v1/v2c/v3; RMON; Smart Application Control (SAC); Web-based NMS; System logs and alarms of different levels; GVRP; MUX VLAN; NetStream; Intelligent O&M
Stackable	Intelligent Stack (iStack), with up to 9 member switches in a stack
Fans	Air cooling heat dissipation, intelligent speed adjustment
Power supply	Rated voltage range: 100 V AC to 240 V AC, 50/60 Hz, Maximum voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz, Maximum power consumption: 94W
Routing	Layer 3 Advanced
Routing/Switching capacity, Gbps	144 Gbps
Throughput, Mpps	108 Mpps
MAC addresses	64000 MAC address table size
VLAN (number, standards)	4094 VLANs; Guest VLAN and voice VLAN; GVRP; MUX VLAN; VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports; VLAN mapping
QoS	Rate limiting in the inbound and outbound directions of a port; Packet redirection; 8 queues per port; DRR, SP and DRR+SP queue scheduling algorithms; WRED; Re-marking of the 802.1p and DSCP fields of packets;Queue-based rate limiting and shaping on ports
L2 network standards	IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag
L3 network standards	Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy
IPv6 functionality	Up to 8K ND entries; PMTU; IPv6 Ping, IPv6 Tracert, and IPv6 Telnet; ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types; MLDv1/v2; IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN
Security	DoS attack defense, ARP attack defense, and ICMP attack defense; Port isolation, port security, and sticky MAC; IEEE 802.1x authentication and limit on the number of users on a port; AAA authentication, RADIUS authentication, and HWTACACS authentication
Dimensions (W, D, H), mm	442 x 220 x 44 mm
Мounting option	Rackmount
Warranty	12 months
