P/N: XGS2220-54HP-EU0101F

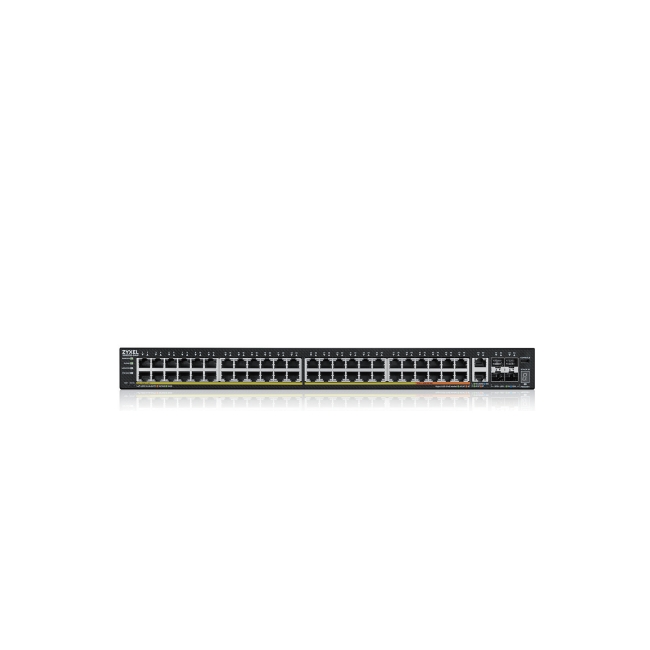

Commutator/ Switch, ZyXEL XGS2220-54HP, L3 Access Switch, 600W PoE, 40xPoE+/10xPoE++, 48x1G RJ45 2x10mG RJ45, 4x10G SFP+ Uplink, incl. 1 yr NebulaFlex Pro

ZyXEL XGS2220-54HP, L3 Access Switch, 600W PoE, 40xPoE+/10xPoE++, 48x1G RJ45 2x10mG RJ45, 4x10G SFP+ Uplink, incl. 1 yr NebulaFlex Pro

ZyXEL >> ZyXEL XGS2220-54HP Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port, Layer 3 Access
Total number of ports	54
Мain ports, type	48x 10/100/1000Base-T
Power Over Ethernet (PoE)	50 PoE ports: 40x Gigabit RJ-45 PoE+ ports + 8x Gigabit RJ-45 PoE++ (60 W) ports + 2x 10G Multi-Gigabit (1G/2.5G/5G/10G) RJ-45 PoE++ (60 W) ports; PoE power budget: 600 W
Uplink ports	4x 1G SFP/10G SFP+ slots + 2x10G Multi-Gigabit (1G/2.5G/5G/10G) RJ-45 ports
Open (10GB) slots	-
Management	Standalone management by Web interface; Cloud management by Nebula Control Center; Management through Console, Telnet, SNMP; Multilevel CLI; DHCP
Stackable	Physical stacking (In the future firmware release)
Fans	1 x smart fan
Power supply	100 - 240 V AC, 50/60 Hz; Max. power consumption: 754.11W
Routing	Static; Static route: 64
Memory (Flash, RAM)	64 MB/1 GB (Flash/RAM)
Routing/Switching capacity, Gbps	261 Gbps
Throughput, Mpps	161 Mpps
MAC addresses	32 K
VLAN (number, standards)	802.1Q static VLANs/dynamic VLANs: 4 K/4 K; VLAN isolation; Port-based/Vendor ID based/Protocol-based/IP subnet-based/MAC-based/Private/Voice VLAN; Independent VLAN Learning (IVL); VLAN Translation/trunking/mapping; QinQ; GVRP; L2PT
QoS	No. of hardware queues per port (Standalone/stacking): 8*/6; Storm control and event log; Port-based rate limiting; Rate limiting per IP/TCP/UDP per port; Policy-based rate limiting; 802.3x flow control; 802.1p Class of Service; DSCP
L2 network standards	IEEE 802.3z, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3ae, IEEE 802.1X
L3 network standards	IEEE 802.1D Spanning Tree Protocol (STP); IEEE 802.1w Rapid Spanning Tree Protocol (RSTP); IEEE 802.1s Multiple Spanning Tree Protocol (MSTP); IEEE 802.3ad LACP
IPv6 functionality	Max. 1 K IPv4 entries; Max. 512 IPv6 entries; IP source guard (IPv4*/IPv6); ACL packet filtering (IPv4/IPv6); Syslog (IPv4/IPv6); IPv6 over Ethernet (RFC 2464); IPv6 addressing architecture (RFC 4291); IPv6 binding- static/dynamic
Security	Port security; Layer 2 MAC filtering; Layer 3 IP filtering; Layer 4 TCP/UDP socket filtering; Static MAC forwarding; RADIUS; TACACS+; SSH v2; SSL; DHCP;
Dimensions (W, D, H), mm	441 x 330 x 44 mm
Мounting option	Rackmount
Other	Rack mounting kit included; incl. 1 yr NebulaFlex Pro
Warranty	99 months
