P/N: 90-MXBL10-A0UAYZ

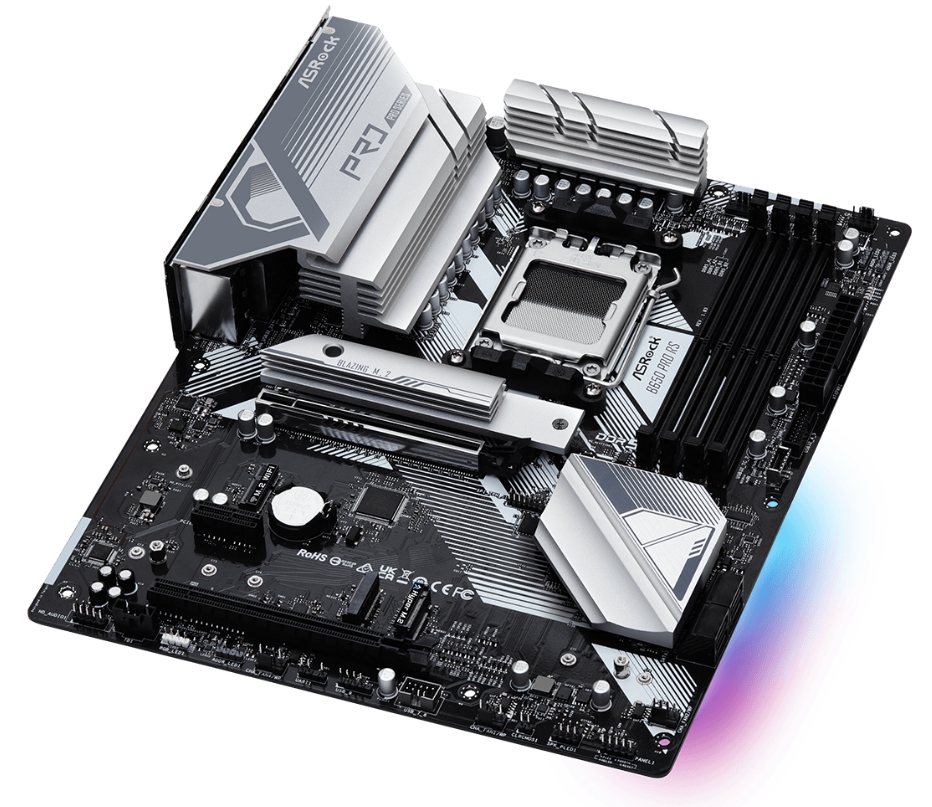

Motherboard, Asrock B650 Pro RS

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Documents

Series	PRO
Processor	AMD AM5 Ryzen
Chipset	AMD B650
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Мemory	DDR5
Number of slots	4 DIMM Slots; Max. capacity of system memory: 128GB
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec); Nahimic Audio
Wireless network	-
Connectors	SPI TPM Header; Power LED and Speaker Header; 24 pin ATX Power Connector; 8 pin 12V Power Connector; 4 pin 12V Power Connector; Front Panel Audio Connector; Thunderbolt AIC Connector; 2 x USB 2.0 Headers; USB 3.2 Gen1 Header; Type C USB 3.2
Slots	CPU: PCIe 4.0 x16 Slot, PCIe 3.0 x16 Slot; Chipset: PCIe 4.0 x1 Slot
M.2 slot	M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Interface	2 x Antenna Mounting Points; HDMI Port; DisplayPort 1.4; USB 3.2 Gen2 Type-A; USB 3.2 Gen2 Type-C; 2 x USB 3.2 Gen1 Ports; 6 x USB 2.0 Ports; RJ-45 LAN Port; BIOS Flashback Button; HD Audio Jacks: Line in / Front Speaker / Microphone
Software	ASRock Motherboard Utility (A-Tuning); ASRock Dragon 2.5G LAN Software; ASRock Polychrome SYNC
Operating system	Microsoft Windows 10 64-bit/11 64-bit
Form factor	ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Special features	Superb Productivity, Rock-Solid Durability, Ultrafast Connectivity, EZ Troubleshooter
Warranty	36 months
