P/N: DGS-2000-10P

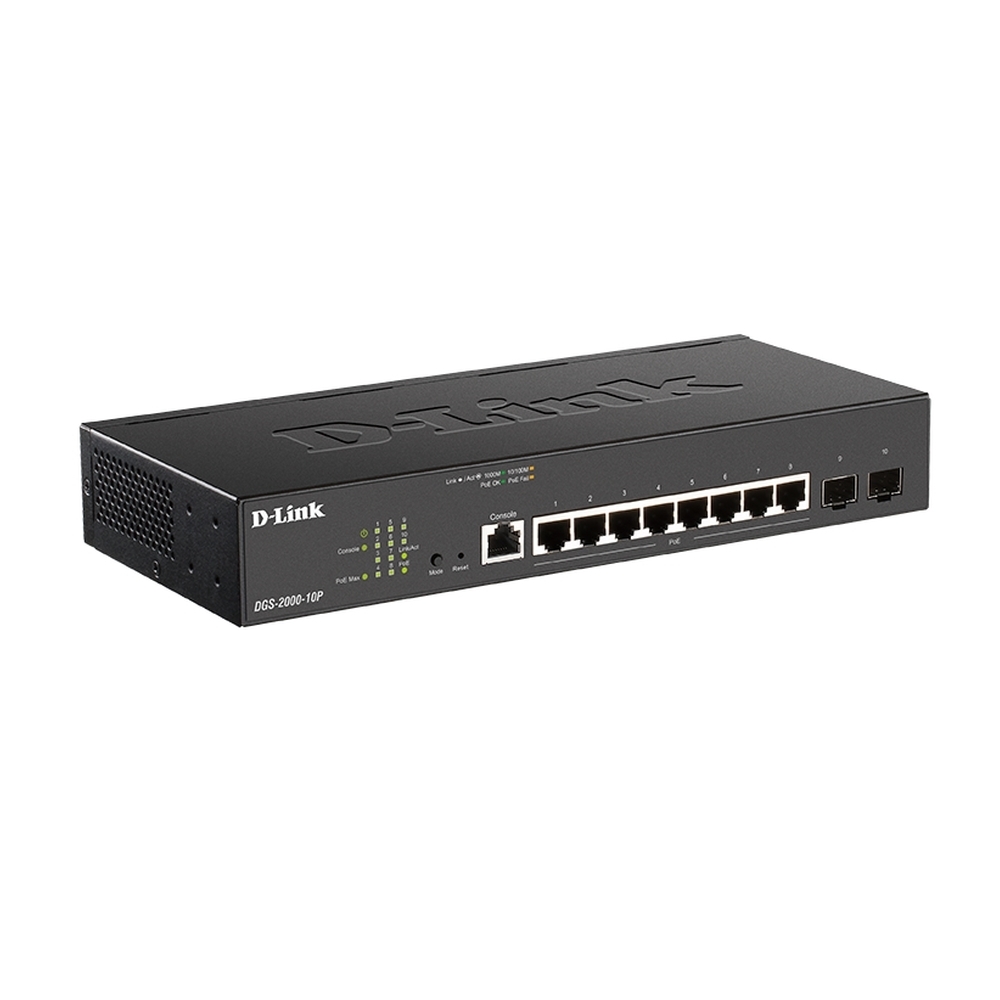

Commutator/ Switch, D-Link 8-port Gbit PoE Managed Switch incl. 2x SFP

D-LINK мрежови продукти >> D-Link 8-port Gbit PoE Managed Switch incl. 2x SFP Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	10
Мain ports, type	8x10/100/1000Base-T
Power Over Ethernet (PoE)	IEEE 802.3af, IEEE 802.3at, Maximum PoE Budget: 65W
Uplink ports	2xSFP
Open (10GB) slots	No
Management	Web-based GUI (IPv4/IPv6), CLI through Telnet or SSH, Telnet Server/Client (Support IPv4/IPv6), Command logging, SNMP, System log, RMON v1, LLDP, BootP/DHCP client, DHCP, SNTP
Stackable	No
Fans	Fanless
Power supply	External power supply: AC Input: 54.0 V DC; Max. Power Consumption: 81.9 W (PoE on), 7.6 W (PoE off)
Routing	Layer 3 Lite
Memory (Flash, RAM)	CPU Memory: 256 MB DDR3, Flash Memory: 32 MB
Routing/Switching capacity, Gbps	20 Gbps
Throughput, Mpps	14.88 Mpps
MAC addresses	8000 MAC address table size
VLAN (number, standards)	802.1Q tagged VLAN; VLAN groups: Max. 256; Port-based/Asymmetric/Voice/Auto surveillance VLAN; Port-based Q-in-Q; ISM VLAN (multicast VLAN); VLAN Translation
QoS	CoS based on: Switch port, DSCP; Bandwidth control - Port-based (ingress, egress, min. granularity 16 Kbps); Queue handling: Strict priority (SPQ), Weighted Round Robin (WRR); 8 outbound queues
L2 network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3ah, IEEE 802.3af, IEEE 802.3at
L3 network standards	Default Routing, Static Route: Max. 128 IPv4 entries, Max. 128 IPv6 entries
IPv6 functionality	RFC1981 Path MTU Discovery; RFC2460 IPv6; RFC2461, 4861 Neighbor Discovery; RFC2462, 4862 IPv6 Stateless Address Auto-configuration; RFC2893, 4213 IPv4/IPv6 dual stack function
Security	Port security (Up to 64 MAC addresses per port); Smart IP-MAC-Port Binding; Broadcast/Multicast/Unicast storm control; IP inspection; DAD; D-Link Safeguard Engine; DoS attack prevention; Traffic segmentation; SSH
Dimensions (W, D, H), mm	280 x 126 x 44 mm
Мounting option	Rackmount (1U)
Warranty	99 months
