P/N: C9300L-24T-4G-E

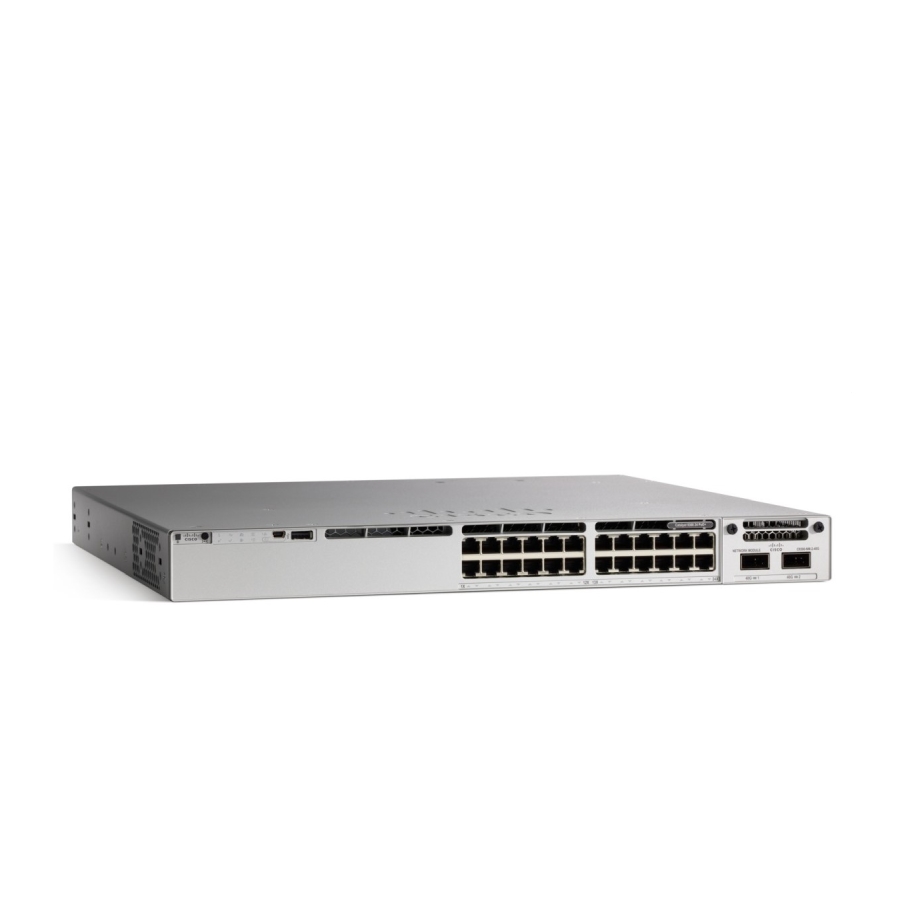

Commutator/ Switch, Cisco Catalyst 9300 24-port 1G copper, with fixed 4x1G SFP uplinks, data only Network Essentials

Cisco Enterprise and Service Providers - Borderless Networks >> Cisco Catalyst 9300 24-port 1G copper Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	28
Мain ports, type	24x10/100/1000Base-T
Power Over Ethernet (PoE)	No
Uplink ports	fixed 4x1G SFP
Open (10GB) slots	No
Management	SNMPv1, SNMPv2c, and SNMPv3; RMON I and II standards; Internet Group Management Protocol (IGMP); CLI; TCP; UDP
Stackable	Stacking support: StackWise-320; 320 Gbps; Optional Stacking hardware: C9300L-STACK-KIT; Number of members: 8; Supported stack members: Other C9300L SKUs with same license level
Fans	three field-replaceable fans and support (N+1) redundancy
Power supply	Dual redundant power supplies, Default primary AC power supply: PWR-C1-350WAC-P
Routing	Layer 3 Advanced
Memory (Flash, RAM)	Flash memory: 16 GB; 8 GB DRAM
Routing/Switching capacity, Gbps	128 Gbps; Switching capacity with stacking: 448 Gbps
Throughput, Mpps	95.23 Mpps; Forwarding rate with stacking: 333.33 Mpps
MAC addresses	32000 MAC address
VLAN (number, standards)	VLAN IDs: 4094; IEEE 802.1Q VLAN
QoS	Granular wireless bandwidth management and fair sharing,802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification,Shaped Round Robin (SRR) scheduling,Committed Information Rate (CIR), and eight egress queues per port
L2 network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3x
L3 network standards	IP unicast routing protocols: Static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng, Open Shortest Path First [OSPF]
IPv6 functionality	IPv6 routing (using OSPFv3 and EIGRPv6) is supported in hardware for maximum performance; IPv6 addressing is supported on interfaces with appropriate show commands for monitoring and troubleshooting
Security	Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
Dimensions (W, D, H), mm	44.5 x 44.9 x 4.4
Мounting option	Rackmount
Other	Задължителен е минимум 3-годишен лиценз DNA Essentials.
Warranty	99 months
