P/N: SPH_7000TL3BH-UP

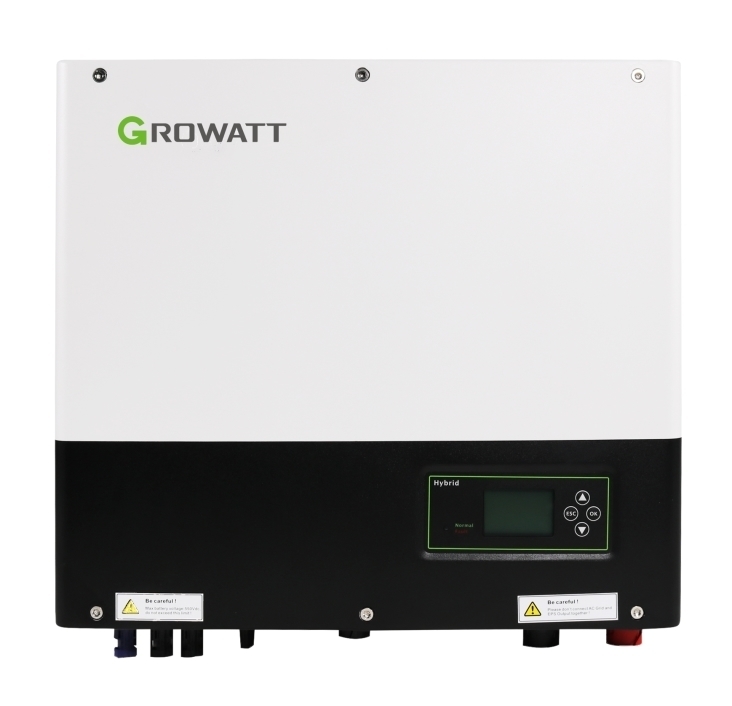

Inverter for photovoltaic panel, Growatt SPH 7000TL3 BH-UP Three Phase Hybrid Inverter with UPS Function

120

Characteristic

Connection, type Three phase
Efficiency 98.2% max. efficiency, 97.4% European efficiency
Power, W 10 500 W
Input voltage, V 600 V (nominal); Max. DC voltage: 1000 V; Start voltage: 120 V; MPP voltage range: 120V-1000V
Battery Lithium battery; Voltage range: 100 - 550V; Max charging and discharging current: 25 A; Continuous charging and discharging power: 7000W
Output power, W 7000 W
Output power, VA 7000 VA
Output Voltage, V 230V/400V (310~476V)
Frequency, Hz 50Hz/60Hz (45Hz-55Hz/55Hz-65Hz)
Output current, A 10.6 A
Protections DC switch, DC reverse polarity protection, AC/DC surge protection (Type II), Battery reverse protection, AC short-circuit protection, Ground fault/Grid/Insulation resistance monitoring, Anti-islanding protection, Residual-current monitoring unit
Indicators LCD+LED display
Cooling type Natural
Operating Temperature –25 °C - +60 °C
Humidity range 0 - 100%
Interface RS485, CAN, USB
Standards CE, IEC62109, IEC 62040, VDE-AR-N 4105, VDE 0126, UTE C 15-712, C10/C11, EN50549, CEI 0-21, CEI 0-16, IEC62116, IEC61727, AS/NZS 4777, G98, TOR Erzeuger
Color White-Black
Dimensions (W, D, H), mm 505 x 453 x 198 mm
Weight, kg 30 kg
Other IP65
Warranty 120 months

EAN: -
