P/N: SPH_5000TL3BH-UP

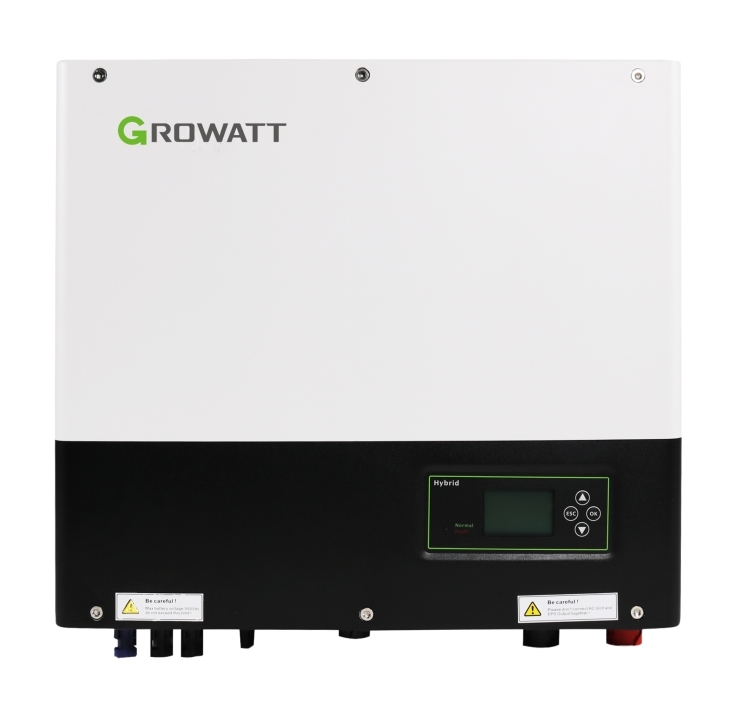

Inverter for photovoltaic panel, Growatt SPH 5000TL3 BH-UP Three Phase Hybrid Inverter with UPS Function

120

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Connection, type	Three phase
Efficiency	97.8% max. efficiency, 97.2% European efficiency
Power, W	7500 W
Input voltage, V	600 V (nominal); Max. DC voltage: 1000 V; Start voltage: 120 V; MPP voltage range: 120V-1000V
Battery	Lithium battery; Voltage range: 100 - 550V; Max charging and discharging current: 25 A; Continuous charging and discharging power: 5000W
Output power, W	5000 W
Output power, VA	5000 VA
Output Voltage, V	230V/400V (310~476V)
Frequency, Hz	50Hz/60Hz (45Hz-55Hz/55Hz-65Hz)
Output current, A	7.6 A
Protections	DC switch, DC reverse polarity protection, AC/DC surge protection (Type II), Battery reverse protection, AC short-circuit protection, Ground fault/Grid/Insulation resistance monitoring, Anti-islanding protection, Residual-current monitoring unit
Indicators	LCD+LED display
Cooling type	Natural
Operating Temperature	–25 °C - +60 °C
Humidity range	0 - 100%
Interface	RS485, CAN, USB
Standards	CE, IEC62109, IEC 62040, VDE-AR-N 4105, VDE 0126, UTE C 15-712, C10/C11, EN50549, CEI 0-21, CEI 0-16, IEC62116, IEC61727, AS/NZS 4777, G98, TOR Erzeuger
Color	White-Black
Dimensions (W, D, H), mm	505 x 453 x 198 mm
Weight, kg	30 kg
Other	IP65
Warranty	120 months
