P/N: MAX120KTL3-X

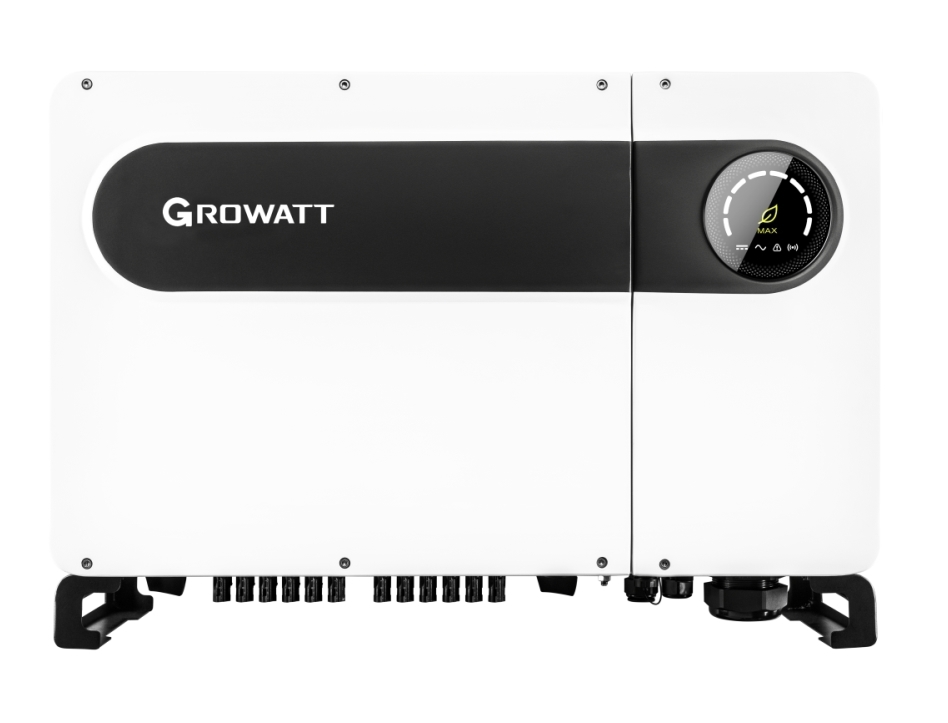

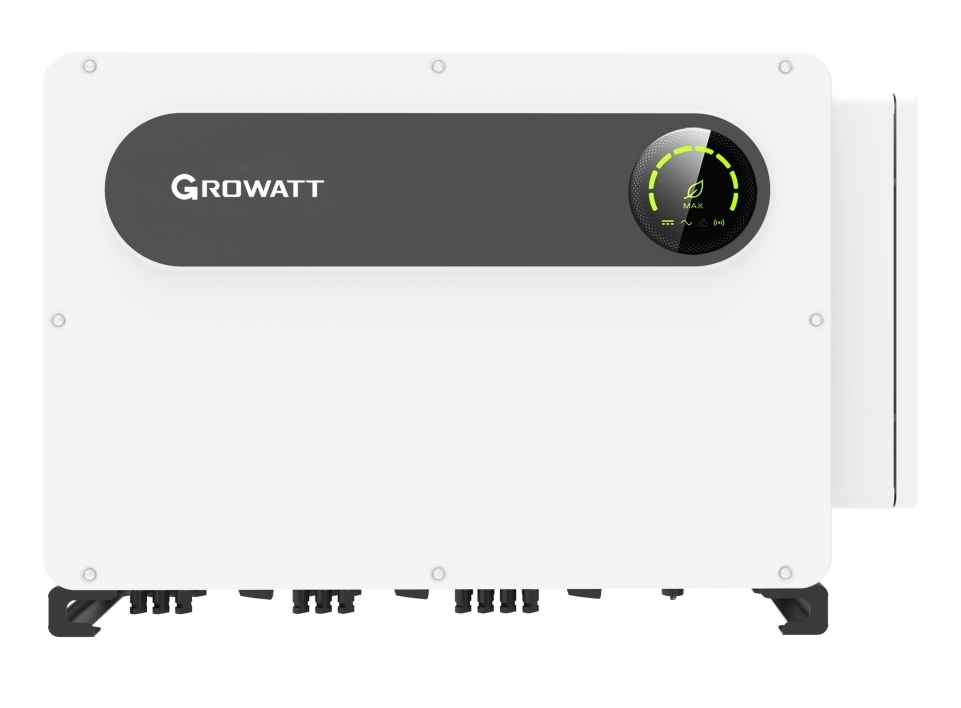

Inverter for photovoltaic panel, Growatt MAX120KTL3-X LV (with AFCI, type II SPD) Three Phase On Grid Inverter

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Connection, type	Three phase
Efficiency	98.8% max. efficiency, 98.5% European efficiency
Input voltage, V	600 V (nominal); Max. DC voltage: 1100 V; Start voltage: 195 V; MPP voltage range: 180V-1000V
Output power, W	120 000 W
Output power, VA	132 000 VA
Output Voltage, V	230V/400V (340-440VAC)
Frequency, Hz	50/60 Hz (45~55Hz/55-65 Hz)
Output current, A	190.5 A
Protections	DC reverse polarity protection, DC switch, AC/DC surge protection (Type II), Insulation resistance monitoring, AC short-circuit protection, Ground fault monitoring, String detection
Indicators	LED display
Cooling type	Smart Cooling
Operating Temperature	–30°C - +60°C
Humidity range	0 - 100%
Interface	RS485, USB; Optional: PLC, GPRS, 4G, WiFi
Standards	CE, IEC62116, IEC61727, CQC, VDE0126, VFR2019, EN50549-1/2, C10/C11, UNE206007, G99 CEI 0-21/0-16, N4105&N4110, UNE206006, MEA, PEA, KSC8565
Color	White
Dimensions (W, D, H), mm	970 x 640 x 345 mm
Weight, kg	84 kg
Other	IP66
Warranty	60 months
