P/N: SL3APLC

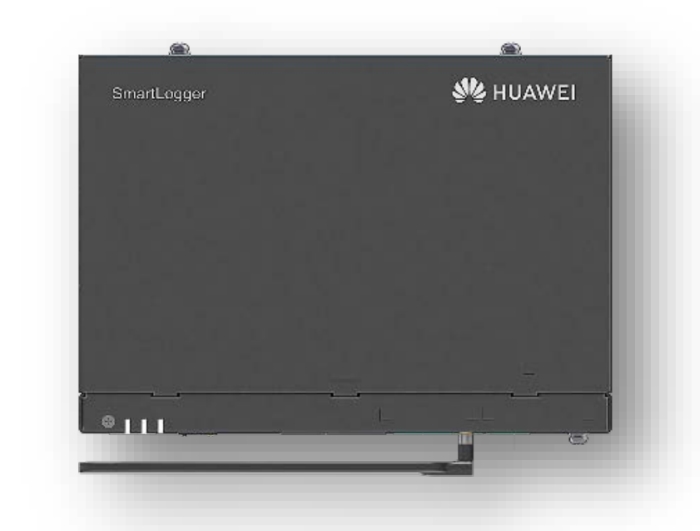

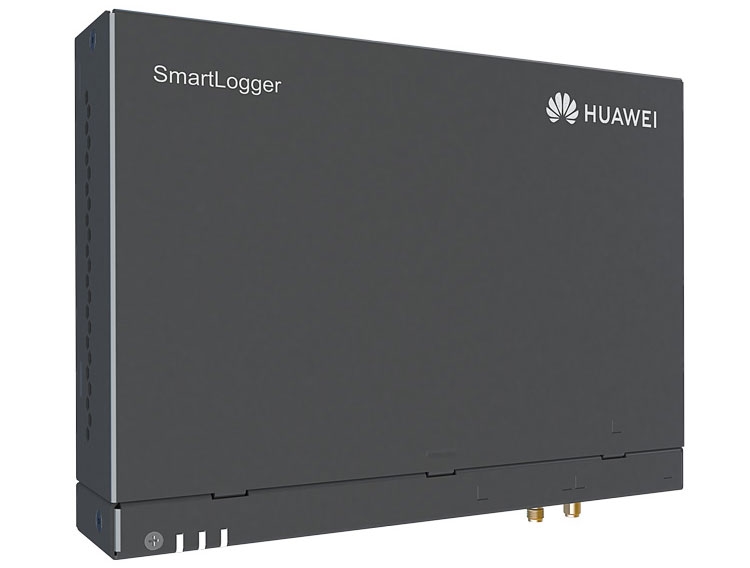

Аксесоар, Huawei SmartLogger3000A03 (with MBUS)

24
HUAWEI инвертори за фотоволтаични системи >> Huawei SmartLogger3000A03 (with MBUS) Препоръчителен сервиз
Препоръчителен сервиз
HUAWEI FusionSolar, безплатен телефон: 00 80 03 38 88 888, имейл: eu_inverter_support@huawei.com, Гаранционна процедура





Характеристики

Х-ка 1 Max. Number of Connected Devices: 80
Х-ка 2 Communication Interface: WANx1, 10/100/1000 Mbps; LANx1, 10/100/1000 Mbps; RS485 COM x3, 1200/2400/4800/9600/19200/115200 bps, 1000 m; LTE(FDD):B1,B2,B3,B4,B5,B7,B8,B20; DC-HSPA+/HSPA+/HSPA/UMTS: 850/900/1900/2100 MHz; GSM/GPRS/EDGE: 850/900/1800/1900 MHz
Х-ка 3 MBUS x1, 115.2 kbps, Compatible with PLC; Digital/Analog Input/Output: DI x4, DO x2, AI x4; Active DO: 12V, 100mA (connection with relay, sensor); Ethernet: Modbus-TCP, IEC 60870-5-104; RS485: Modbus-RTU, IEC 60870-5-103 (standard), DL / T645
Х-ка 4 Interaction: LED Indicator x 3 – RUN, ALM, 4G; Embedded Web; USB 2.0 x1; APP: Communication by WLAN for Commissioning
Х-ка 5 Operating Temperature Range: -40°C ~ 60°C, Storage Temperature: -40°C ~ 70°C, Relative Humidity (Non-condensing): 5% ~ 95%, Max. Operating Altitude: 4000 m
Х-ка 6 AC Power Supply: 100 V~240 V, 50 Hz / 60 Hz; DC Power Supply: 12 V / 24 V; Power Consumption: Typical 8 W, Max. 15 W
Х-ка 7 Protection Degree: IP20, Dimensions (W x H x D): 225 x 160 x 44 mm, Weight: 2 kg
Гаранция 24 месеца

EAN: -
