P/N: DGS-1100-10MPV2

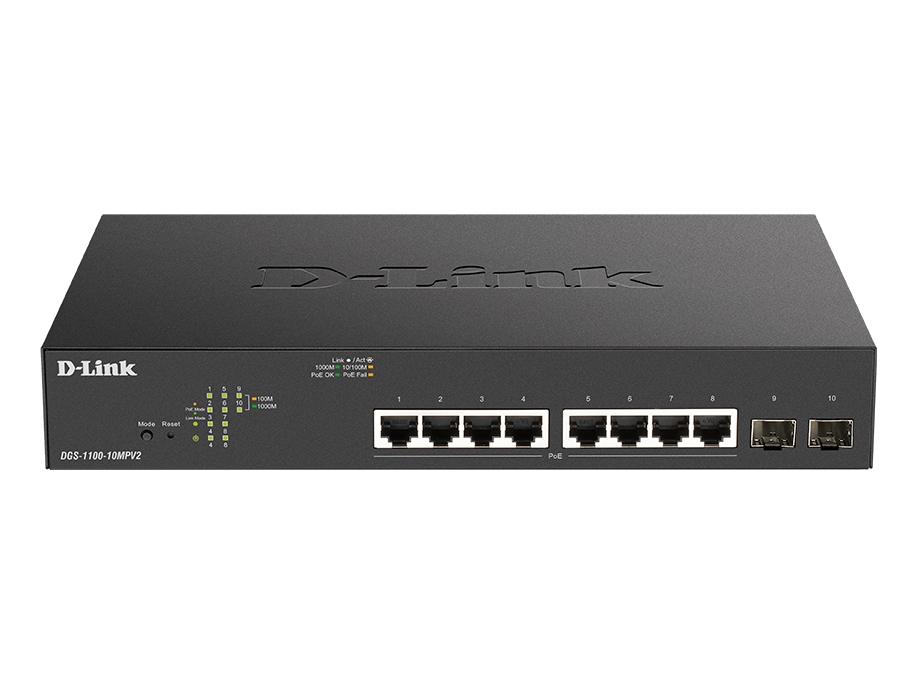

Commutator/ Switch, D-Link 10-Port PoE+ Gigabit Smart Managed Switch

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	10
Мain ports, type	8x10/100/1000Base-T
Power Over Ethernet (PoE)	IEEE 802.3af/802.3at PoE Standard, 1 to 8 PoE Capable Ports, PoE Power Budget: 130 W
Uplink ports	2xSFP
Open (10GB) slots	No
Management	Web-based GUI (supports IPv4/IPv6), Client-based D-Link Network Assistant (DNA)
Stackable	No
Fans	Smart Fan

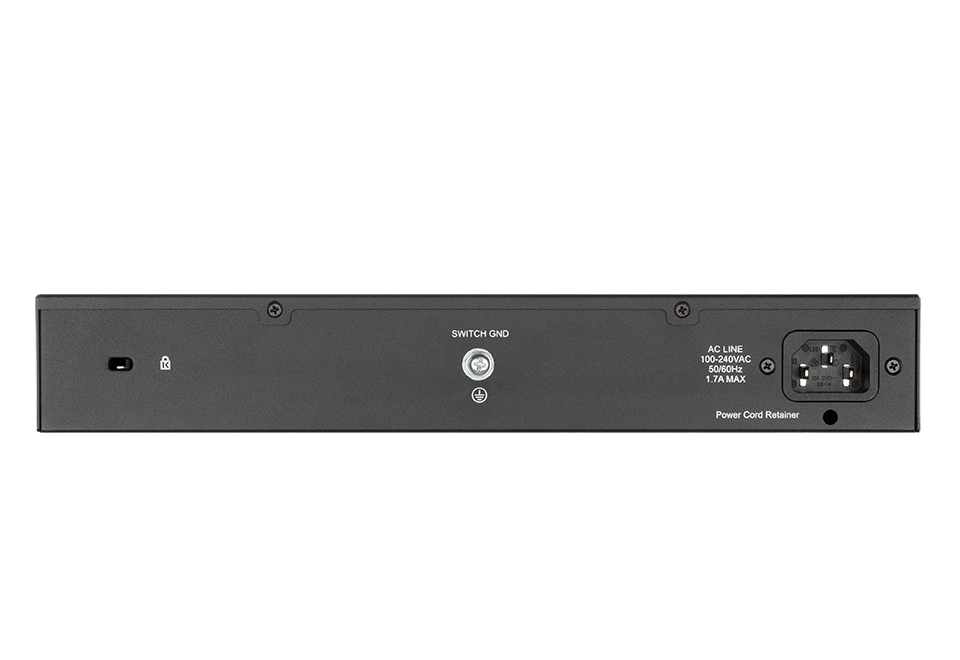

Power supply	100 to 240 V AC, 50 to 60 Hz internal power supply
Routing	Layer 2 Only
Memory (Flash, RAM)	Flash Memory: 16 MB
Routing/Switching capacity, Gbps	20 Gbps
Throughput, Mpps	14.88 Mpps
MAC addresses	8000 MAC address table size
VLAN (number, standards)	Port-based VLAN; 802.1Q tagged VLAN; Auto Surveillance VLAN; Voice VLAN; Management VLAN; Asymmetric VLAN; VLAN Group: Supports 128 static VLAN groups, Max. 4094 VIDs
QoS	802.1p Quality of Service; 8 queues per port; Queue handling - Strict, Weighted Round Robin (WRR); Port-based bandwidth control (rate limiting): Ingress/Egress - 16 Kbps
L2 network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
L3 network standards	-
IPv6 functionality	-
Security	D-Link Safeguard, Traffic segmentation, Broadcast/Multicast/Unknown Unicast Storm Control, DoS attack prevention, SSL
Dimensions (W, D, H), mm	280 x 180 x 44 mm
Мounting option	Desktop/Rackmount
Warranty	99 months
