P/N: DXS-1210-28T

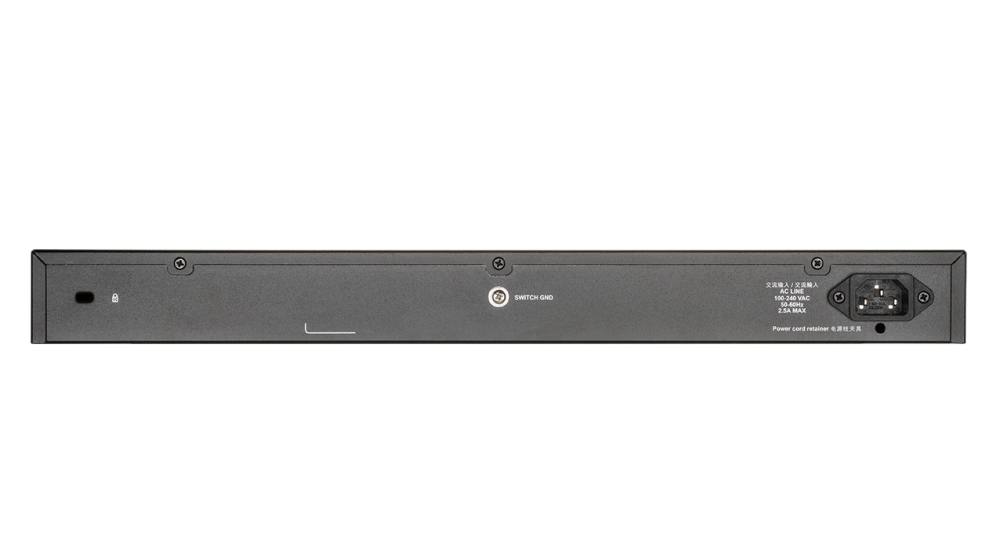

Commutator/ Switch, D-Link 24 x 10G Base-T ports + 4 x 10G/25G SFP28 ports Smart Managed Switch

D-LINK мрежови продукти >> D-Link 24 x 10G Base-T ports + 4 x 10G/25G SFP28 ports Smart Managed Switch Recommended service

Recommended service
ПОЛИКОМП, тел. 02 814 4188, Гаранционна процедура

Characteristic

Switch, type	Fixed Port
Total number of ports	28
Мain ports, type	24x10GBase-T
Power Over Ethernet (PoE)	No
Uplink ports	4x10/25G SFP28
Open (10GB) slots	No
Management	Web-based GUI; D-Link Network Assistant Utility; Full CLI; Telnet Server; TFTP Client; Configurable MDI/MDIX; SNMP (Supports v1/v2c/v3); SNMP Trap; Smart Wizard; LLDP; LLDP-MED; BootP/DHCP Client; RMON v1/v2; Dual Images; Dual Configurations; DNS Client
Stackable	No
Fans	2 x Smart Fan
Power supply	AC Input: 100 to 240 VAC, Max Power Consumption: 87.3 W
Routing	Layer 3 Lite
Memory (Flash, RAM)	-
Routing/Switching capacity, Gbps	680 Gbps
Throughput, Mpps	505.92 Mpps
MAC addresses	32000 MAC address table size
VLAN (number, standards)	802.1Q VLAN, Port-based VLAN, Configurable VID: 1~4094, Voice VLAN, Auto Surveillance VLAN, Asymmetric VLAN, 4K VLAN Groups
QoS	802.1p; 8 queues per port; Queue Handling - Strict Priority Que (SPQ), Weighted Round Robin (WRR); Bandwidth Control - Port-based (Ingress/Egress, min. granularity 64 Kbps), Queue-based (Egress, min. granularity 64 Kbps)
L2 network standards	IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3z, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X
L3 network standards	Default Route, Static Route: Max. 128 IPv4 entries, Max. 64 IPv6 entries
IPv6 functionality	IPv6 Traffic Class, IPv6 Flow Label/Traffic Class, IPv6 Neighbor Discovery (ND), IPv6 ND Inspection, IPv6 Route Advertisement (RA) Guard
Security	Broadcast/Multicast/Unicast Storm Control; D-Link Safeguard Engine; DHCP Server Screening; IP-MAC-Port Binding; Traffic Segmentation; SSH; SSL (Support TLS 1.0/1.1/1.2, Support IPv4/IPv6); DoS Attack Prevention; Port Security; Duplicate Address Detection
Dimensions (W, D, H), mm	441 x 209.5 x 44 mm
Мounting option	Rackmount
Other	RJ45 console port, Auto MDI/MDIX adjustment for all twisted-pair ports
Warranty	99 months
